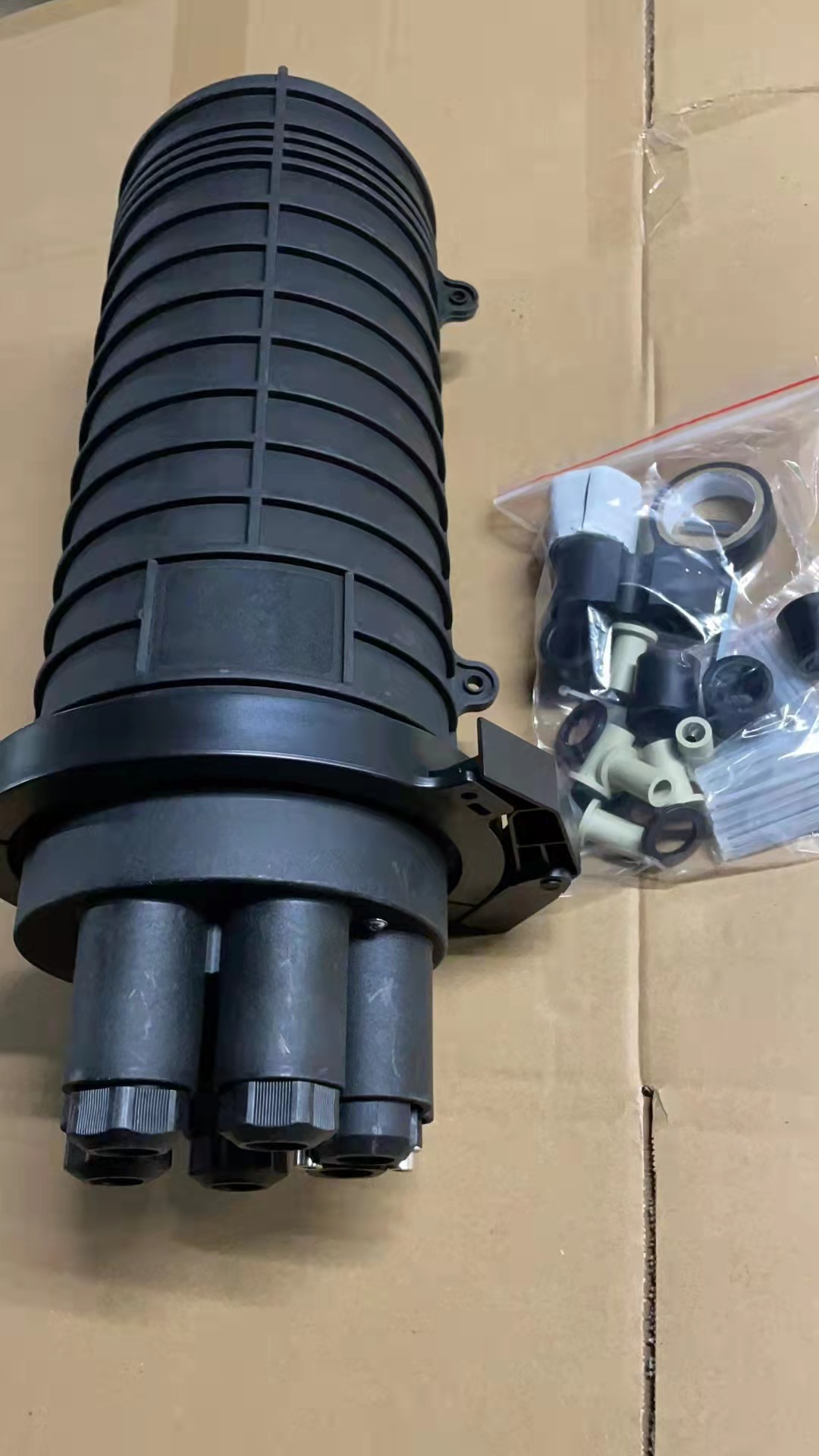

288 Fibers 7 Entries S033 Series Mechanical Seal Type Vertical/Dome Fiber Optic Splice Closure

Product Item: #17230
P/N: FM033-7IO-288-M
US$188.66



Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

S033 Series 288 Fibers Fiber Optic Splice Closure 7 Entries Vertical/Dome



Description

Vertical (Dome) fiber optic splice closures are made of excellent engineering plastics. Fiber-Mart supply different ports types, fittings and different fiber optic core numbers for vertical/dome fiber optic splice closures.
Fiber-Mart's Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.



Key Features

  • Suitable for ordinary fiber and ribbon fiber.
  • Fully kitted with all parts for convenient operation.
  • Overlap structure in splicing tray for easy installation.
  • Fiber-bending radium guaranteed more than 40mm.
  • Easy to install and re-entry with a common can wrench.
  • Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
  • Stand up to severe condition of moisture,vibration and extreme temperatures.



Main Technical Parameters

Item FM-S033
Cable ports 7 Entires
Number of fiber fusion 288 (bunchy)
Capacity of splice tray 12/24/48 (bunchy)
Dimension (mm) 500×250
Cable diameter(mm) 8~40
Max capacity of fiber 288 (bunchy)
Working temperature -40℃~65℃
Insulation resistance >2×104MΩ
Sealing Type Heat-shrinkable Type
Installation Type Pole-Mount
Sealing structure Silicon gum material

Notes: Installation of Pole-Mount is default in Fiber-Mart, the other can also be customized according to your requirements, please contact at [email protected] for details.



Application

  • Be suitable for Aerial and Duct.
  • CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.



Vertical/Dome Optic Splice Closure



Note: An oval port can install two singe cables or an uncut, "express" cable.



Main components


No.
Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole Internal diameter:
        355 ×150(mm)
2 Fiber optic splice tray (FOST)   Fixing heat shrinkable protective sleeve and holding fibers 12/24/48 bunchy
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Foundation 1 set Fixing fiber cable, reinforced core and FOST
5 Base 1 set Fixing internal and external structure
6 Seal fitting 1pieces Sealing between FOSC cover and base
7 Pressure testing valve 1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metallic parts of fiber cable in FOSC for earthing connection Configuration as per requirement

Main accessories and special tools

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Heat shrinkable fixing sleeve (single)   Fixing and sealing single fiber cable Configuration as per requirement
4 Seal tape   Fixing and sealing mass of fiber cable Configuration as per specification
5 Branching clip   Branching fiber cables Configuration as per requirement
6 Earthing wire 1 piece Putting through between earthing devices
7 Desiccant 1 bag Put into FOSC before sealing for desiccating air
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 1 pieces Tightening nut of reinforced core
10 Metal hoop 1 set For wall mounting and pole hugging
11 Buffer tube To be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
12 Aluminum-foil paper 1 piece Protect the bottom of FOS

Note: This price does not come with the accessories and tools, if you need them, please contact us at [email protected] details.




Datasheet to Download

Add your Tags

Customer Reviews


by Richard
Date Added: 04/24/2022
Excellent quality 288 fibers splice closures with all accessory and adapters, fit our use in aerial installation, thanks!

Rating: 5 of 5 Stars [5 of 5 Stars]
