80km 10/100M Dual Fiber 1550nm Centralized Management Card Type Media Converter

Product Item: #4830

(0 Customer Reviews)

P/N: CM-110-SD80

Starting at: US$65.00

Please Choose:

Connector Port:

Power Type:

Order Today, Ship before 06/14/2026, from U.S. or Hong Kong

Description
Datasheet
Tags
FAQ

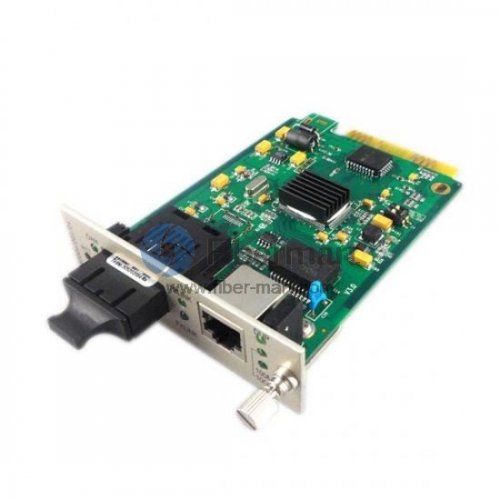

80km 10/100M Dual Fiber 1550nm Centralized Management Card Type Media Converter CM-110-SD80

Managed media converter equips with remote Web /SNMP (Simple Network Management Protocol) interface, enables network administrators to easily monitor and setup the converter, the transmission speed and duplex through web/SNMP browsers. Mostly suitable for those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. Managed 10/100 Ethernet media converter modules is the smart choice for IT professionals.

Fiber-Mart provides kinds of Manged media converters. To make things easy, Fiber-Mart offer comprehensive system for this managed media converters which include the card type insert in managed chassis, Standalone unit at customer side and 17 slots Rack Chassis.

If you can’t find what you are looking for, please contact us.

Key Features

10/100Base-T(X) to 100Base-FX Centralized Converter
Built-in power supply, without power adapter
Supports Full/Half Duplex, auto-negotiation, MDI/MDI-X on TX ports
Configurable through console, Web or SNMP
Support Vlan and QoS
Reliable and stable performance
Free fall, Shock and Vibration Stability
Standard: Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX

Specification

UTP port: 1-ports RJ45
UTP Rate: 10/100Mbps
Fiber Rate: 100Mbps
Fiber Port: Duplex SC, ST, FC, SFP available
Fiber Wavelength: 1550nm
Fiber Mode: Singlemode
Distance: 80km
Power Supply: Built-in
UTP cable: Cat. 5/5e/6 UTP cable (the max distance up to 100m)
LED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX
Operation Temperature: 0 ℃~50 ℃(Humidity: 5~90% non-condensing)
Storage Environment: -25℃~+70℃ (Humidity: 5~90% non-condensing)

Applications

Note: As you can see in the above application picture, this is a comprehensive system. Please buy the whole set.

Our Comprehensive System of media converter include:

Part No.	Description
1	Card Type Managed Media Converter: • Multimode 2km dual fiber • Singlemode 20km single fiber or dual fiber • Singlemode 40km single fiber or dual fiber • Singlemode 60km single fiber or dual fiber • Singlemode 80km single fiber or dual fiber • Singlemode 100km single fiber or dual fiber • Singlemode 120km dual fiber
2	Standalone Managed Media Converter in Customer Side: • Multimode 2km dual fiber • Singlemode 20km single fiber or dual fiber • Singlemode 40km single fiber or dual fiber • Singlemode 60km single fiber or dual fiber • Singlemode 80km single fiber or dual fiber • Singlemode 100km single fiber or dual fiber • Singlemode 120km dual fiber
3	17 slot rack chassis (Inserts up to 16 pieces card type converters): • 10/100M • 10/100M or 10/100/1000M
