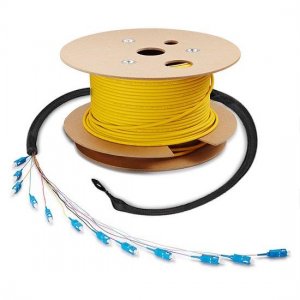

24 Fibers OS2 Singlemode Military Fiber Cable TPU Armored LC/SC/ST/FC/MTP/IP67/ODC/YZC

Press Esc key to close this popup

24 Fibers OS2 Singlemode Military Fiber Cable TPU Armored LC/SC/ST/FC/MTP/IP67/ODC/YZC

Product Item: #16933
P/N: SM-MG-24F-XX
US$145.00



Order Today, Ship before 06/08/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

OS2 Singlemode Military-Grade Tactical Fiber Optic Patch Cable 1-24 Fibers


Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried.

Product Specification
Connector Type LC/SC/ST/FC/MTP®/ODC/YZC/IP67 Polish Type UPC to UPC
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 1~24 Fibers Fiber Grade G.657.A1
Min. Dynamic Bend Radius 20D (mm) Min. Static Bend Radius 10D (mm)
Insertion Loss (dB) LC/SC/ST/FC≤0.3, MTP®≤0.35, ODC/YZC≤1.0, IP67 LC/SC≤0.5, IP67 MTP®≤0.35 Return Loss (dB) UPC≥50, APC≥60
Attenuation at 1310nm 0.36 dB/km Attenuation at 1300nm 1.0 dB/km
Crush Resistance (N/100mm) 1000 (Long Term)/3000 (Short Term) Impact Resistance 200 Impacts
Flex Resistance 2000 Cycles Tensile Load (N) 200 (Long Term)/600 (Short Term)
Breakout Diameter 3.0mm (1~4 Fibers)
2.5mm (6~24 Fibers)
Trunk Diameter 3.0mm-7.0mm
Cable Jacket TPU (Thermoplastic Polyurethane) Jacket Color Black
Operating Temperature -40~85°C Storage Temperature -40~85°C

Quality Certifications




Product Highlights

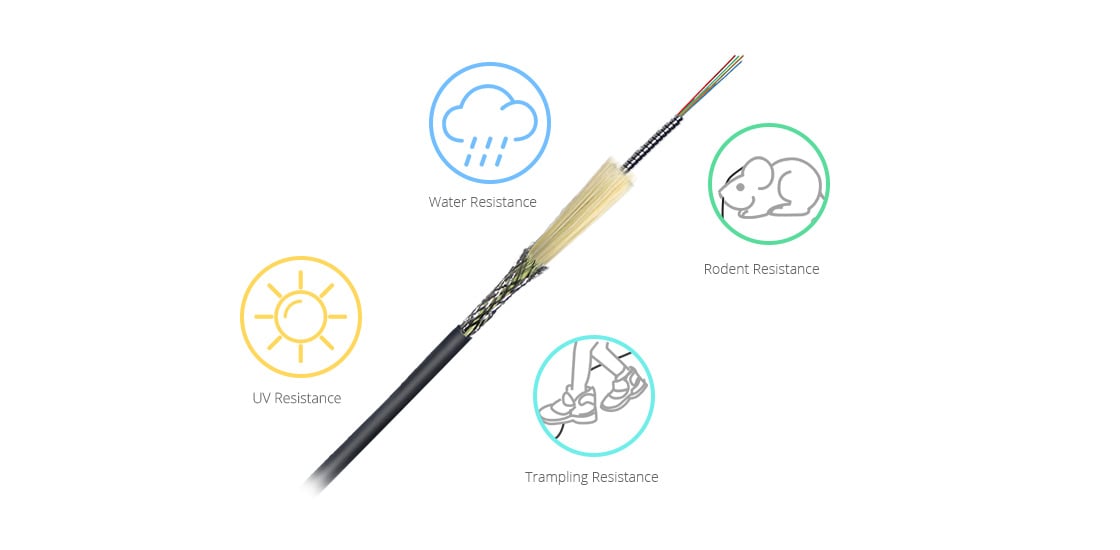

Military Armored Tactical Fiber Patch Cable for Extreme Environments

Perfect for military emergency communications, broadcast television, emergency rush through optical fiber communications, mining and other outdoor applications where protection from moisture, chemicals, corrosive gases, liquids etc. is essential.

Military Grade Fiber Cables Military Armored Tactical Fiber Patch Cable for Extreme Environments


  • Strong, Lightweight, Armored Tactical Fiber Cable

    Constructed of SUS spring tube, Kevlar and braiding, it is ideal for military tactical field use, commercial applications etc.

    Military Grade Fiber Cables Strong, Lightweight, Armored Tactical Fiber Cable
  • TPU Outer Cable Jacket

    Ensures high abrasion resistance, low-temperature performance, high shear strength and high elasticity.

    Military Grade Fiber Cables TPU Outer Cable Jacket


Customized Connectors


Standard LC/SC/ST/FC connectors, ODC plug/socket, YZC plug/socket and IP67 plug/socket are available to meet your special needs in different applications.

Military Grade Fiber Cable Customized Connector


Military Grade Fiber Cables

Breakout Types for Optimizing Cable Routing

Four different breakout configurations meet your various needs.

Military Grade Fiber Cables Breakout Types for Optimizing Cable Routing


Premium Quality Military Tactical Multifiber Patch Cables


The military-grade tactical cable features impact and crush resistance characteristics which comply with military requirements. It is ideal for both indoor and outdoor applications where deployment and retrieval for reuse is required, it can also be used to connect the networks of two buildings through the use of an underground conduit or not.

Military Grade Fiber Cables Premium Quality Military Tactical Multifiber Patch Cables
