AFL NOYES FLX380-100 PON-optimized OTDR

FLX380 FlexTester PON-optimized Micro OTDR

The NOYES FLX380 FlexTester is the world抯 smallest, lightest, most complete single-mode fiber optic test set. It combines high-performance, PON-optimized, multi-wavelength OTDR/PON OTDR, OLS, OPM, VFL and PON Power Meter in a rugged, hand-held package.

The FLX380 FlexTester offers an unmatched combination of optical test functions, ease-of-use, portability and value, including:

• 41 dB dynamic range
• best-in-class event, attenuation, and PON dead zones
• AFL抯 unique ServiceSafe?Live PON OTDR
• Fast, error-free loss-testing using Wave ID synchronization.
• Over 12 hours continuous testing without battery replacement or recharge
• Integrated 50 m launch fiber.

The handheld FLX380 FlexTester is offered in three models to best suit your application requirements:

• FLX380-103: Most complete high-performance test set for verifying both in-service (live) and out-of-service FTTx PONs. Includes ServiceSafe?live PON detection, integrated PON power meter and 1625 nm filtered live PON OTDR, all from a single port.
• FLX380-102: 1310/1490/1550 nm OTDR, OLS, OPM and VFL for complete out-of-service testing at all FTTx PON wavelengths.
• FLX380-100: Lowest cost, high-performance, all-in-one 1310/1550 nm OTDR, OLS, OPM and VFL for out-of-service installation testing or troubleshooting both FTTx PON and point-to-point fiber optic networks.


The FLX380 FlexTester user interface provides modes suitable for both novice and expert users.  It features a top-down menu structure which is both easy to learn and a pleasure to use. User interface software supports over a dozen languages including English, Chinese (Simplified and Traditional), French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian and Spanish.

Over 1000 OTDR test results may be saved in industry-standard .SOR file format. Stored OTDR and OPM results may be transferred to PC via USB port for viewing, analysis, and professional report generation using the included Windows?compatible Test Results Manager (TRM? software.

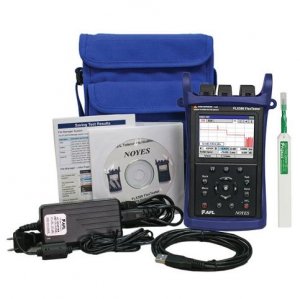

FLX380 FlexTester with Soft Carry Case

FLX380 Prepaid Calibration Plans

Prepaid Cal plans offer two annual calibrations at a discounted price. Cal Plus plans offer the same services as the Cal plans with the addition of a two year extended warranty (three years total coverage).
