Distribution and Breakout Optical Fiber Cable Production Line w/ PLC+IPC control

1.

No. Of optical fiber pay off：

24

2.

Tension of pay off：

0.4～1.5N±0.05N

3.

Reel of optical fiber pay off：

25km and 50km standard fiber reel,PN400

4.

Extruder size：

Φ70x25D

5.

Final product：

Branch cable

6.

Structure speed：

Max 100m/min

7.

Production speed：

  20-60m/min

8.

Center height of machine：

1000mm height from ground

9.

Precision of meter-counter：

≤0.2％

10.

Additional loose after extrusion：

≤0.02dB/km(average value: 0.01 dB/km)

11.

Power：

Approximate 78KW

12.

Weight：

8 ton

13.

Line length：

40M

14.

Machine power：

380V 50HZ three phase five wire

15.

Line direction：

Right to Left，Left to Right

16.

Range of air pressure：

0.5-0.6MPa

17.

Machine color：

blue-black

18.

Take-up tension:

5-20N

19.

Take-up reels Specification:

630 reel and 1000 reel(central shaft hole diameter ø 56/80)

1.

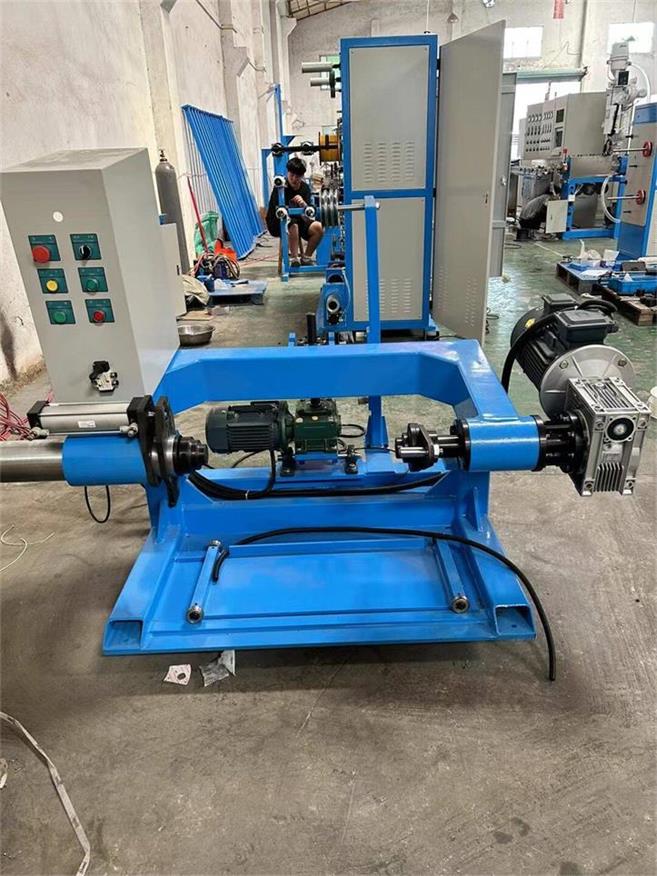

Φ800-1250mm motorized type pay off(No.:1250ZDFX-00)

1set

2.

Swing type pay-off tension dance wheel device and guide wheel

1set

3.

24heads cage stranding machine

1set

4.

Center wrapping machine

1set

5.

12 heads aramid yarn pay off(No.: 12TFLFX-00)

1set

6.

Mobile positioning mold support (No.:DWJXZZ-00)

1set

7.

Φ70x25D Extrusion main motor with cross heads(No.:70JSJ-02)

1set

8.

75KG Dryer machine and automatic hopper

1set

9.

Electric apparatus, main temperature control cabinet (IPC+PLC control)（No.：70GKDX-00）

1set

10.

2.5m moving water cooling trough with water tank and warm water tank （No.：2.5MYDRSC-00）

1set

11.

Industrial chiller（No:4PZLJ-00）

1set

12.

12m single-layer U-type fixed type cooling water trough and water tank (with drying device)（No.：12MGDLSC-00)

1set

13.

Shanghai Gongjiu laser diameter gauge

1set

14.

Ink-jet printer stand device without ink-jet printer(No.:PMZZ-00)

1set

15.

800mm double wheel capstan(No.:800LSQY-00)

1set

16.

9m horizontal tension wire accumulator with linear slide（No.：9MHSCXJ-00）

1set

17.

Φ800～1250mm double-shaft take-up machine（No.：1250SPSX-00）

1set
