FTTH Fiber drop cable Simplex/Duplex/Mini Fiber Optic Cable Production Line w/ PLC+IPC control

1.

No. Of optical fiber pay off：

24

2.

Tension of pay off：

0.4～1.5N±0.05N

3.

Reel of optical fiber pay off：

25km and 50km standard fiber reel

4.

No. of reinforcement pay-off rack：

2

5.

Specification of reinforcement pay-off reels：

PN400 reels and ø254×ø116×180×ø32 reels

6.

Reinforcement Specification：

ø0.45mm

7.

Pay-off tension of reinforcement：

5N-20N

8.

Extruder size：

Φ50x25D

9.

Final product：

FTTH drop cable(2.0*3.0mm, 2.0*5.2mm)

simplex/duplex cable(2.0，3.0mm)

  Mini cable (3.0mm)

10.

Structure speed：

Max 150m/min

11.

Production speed：

  100--120m/min

12.

Center height of machine：

1000mm height from ground

13.

Precision of meter-counter：

≤0.2％

14.

Additional loose after extrusion：

≤0.02dB/km(average value: 0.01 dB/km)

15.

Power：

Approximate 58KW

16.

Weight：

5 ton

17.

Line length：

28M

18.

Machine power：

380V 50HZ three phase five wire

19.

Line direction：

It’s up to customer

20.

Range of air pressure：

0.5-0.6MPa

21.

Machine color：

It’s up to customer

22.

Take-up tension:

5-20N

23.

Take-up reels Specification:

400 reel and 630 reel(central shaft hole diameter ø 56)

1-1

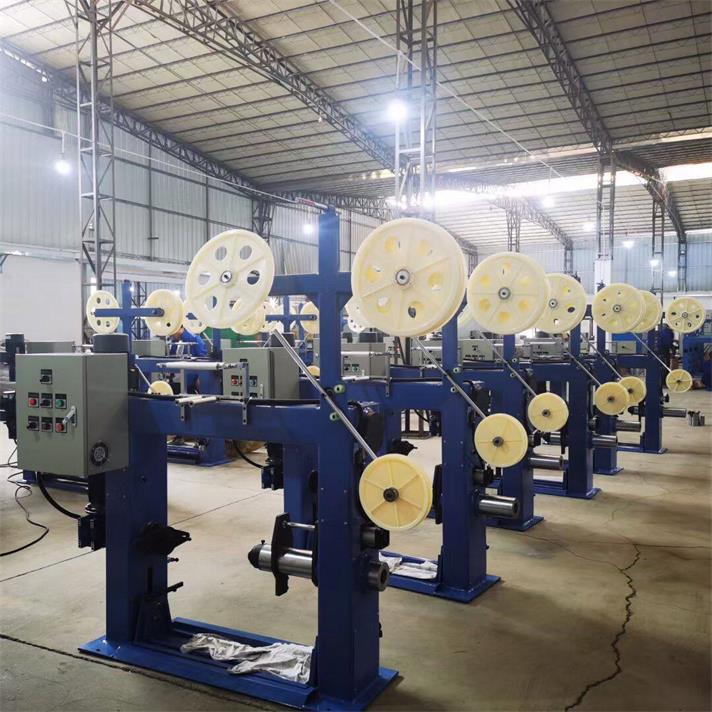

12 heads optical fiber motorized pay-off(No.: 12GQZDFX-00)

2set

1-2

SZ ocilaater

1set

1-3

2heads optical fiber motorized pay off rack and 2heads FRP/steel wire pay off rack(No.: 4TZDFX-01)

1set

2.

800 single head motorized pay-off rack with straighten (No.:800GSZDFX-01)

1set

3.

12 heads aramid yarn pay off(No.: 12TFLFX-00)

1set

4.

Mobile positioning mold support(No.:MJT-01)

1set

5.

Φ50x25D Extrusion main motor (No.:50JSJ-02)

1set

6.

50KG Dryer machine and automatic hopper

1set

7.

Electric apparatus, main temperature control cabinet (IPC+PLC control)（No.：50PXGKDX-00）

1set

8.

2.5m moving water trough with water tank and warm water tank （No.：2.5MYDRSC-00）

1set

9.

8m single-layer U-type fixed type cooling water trough and water tank (with drying device)（No.：8MLQSC-00)

1set

10.

Industrial chiller（No:4PZLJ-00）

1set

11.

Shanghai Gongjiu laser diameter gauge

1set

12.

Φ640mm+300mm double-wheel capstan（No.：640QY-00）

1set

13.

Ink-jet printer stand device without ink-jet printer(No.:PMJZJ-01)

1set

14.

9m horizontal tension wire accumulator with linear slide（No.：9MCXJ-00）

1set

15.

Φ400～630mm double-shaft take-up machine（No.：400SZSX-00）

1set
