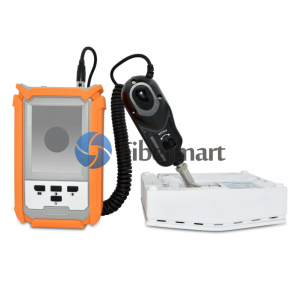

FM-900A-H Fiber Optic Inspection

Product Item: #8976
(0 Customer Reviews)
P/N: FM-900A-H
US$1,162.33



Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

FM-900A-H   Fiber Optic Inspection



Key Features

  • 3.5 inch handheld DM35 monitor
  • Simple to use, portable and convenient
  • Brightness and contrast adjustment
  • Quick navigation, get image within 3-5 seconds; Single-way focus control
  • 95% Image centralization
  • 35 types of adapters tips available to inspect different connectors and 3.angle-mounted connectors with limited access space
  • angle-mounted connectors with limited access space
  • Adapter tips easily interchangeable, no tools required
  • Precise resolution (<1 μm), no shadow or vignetting in screen
  • High definition image, no interface, no flash
  • Reliable output signal, no default under repeated operation
  • Various monitors can be chosen with specific display capability



Applications



Specification

  • End face inspection for patch cord /bulkhead-mounted equipment/transceiver etc
  • End face inspection of assorted connectors PC/APC,MPO/MTRJ etc
  • Connector inspection in Fiber network/equipment/kits/assembly
Magnification/Resolution 400*/0.75μm(Based on benchmark -8 Inch monitor)
Field of View 0.35mm×0.25mm
Tips Connection Cone contact
Focus way /Range Two-way /<3mm
Output Type PAL or NTSC or USB
Light Source/Life time Coaxial blue LED with 100,000 hrs above
Size/Weight （ mm/kg ） 180*41*36 /0.164
Image Sensor 1/3 Inch 5V Voltage
Temperature -10~60 ℃
Humidity 90% Relative humidity Tolerance, no condenses



Fiber Inspection Probe Datasheet



FVM100 Fiber Probe Scopes Datasheet



FVM103 Fiber Probe Scopes Datasheet





Datasheet to Download
