SC Connector

Epoxy type SC fiber connector, Curing epoxy needed for SC UPC connector, SC APC connector, SC Fiber Connector, 3.0 SC connector

The SC fiber optic connector features a square housing and a push-pull locking mechanism, offering stable performance, low insertion loss, and high return loss. It is easy to install and disconnect, while its ceramic ferrule ensures precise fiber alignment for reliable transmission.

Its key advantages include a compact and durable design, making it well-suited for high-density applications such as data centers and telecommunication networks. As a widely adopted industry standard, the SC connector supports both single-mode and multimode fibers, making it an ideal choice for efficient optical communication.

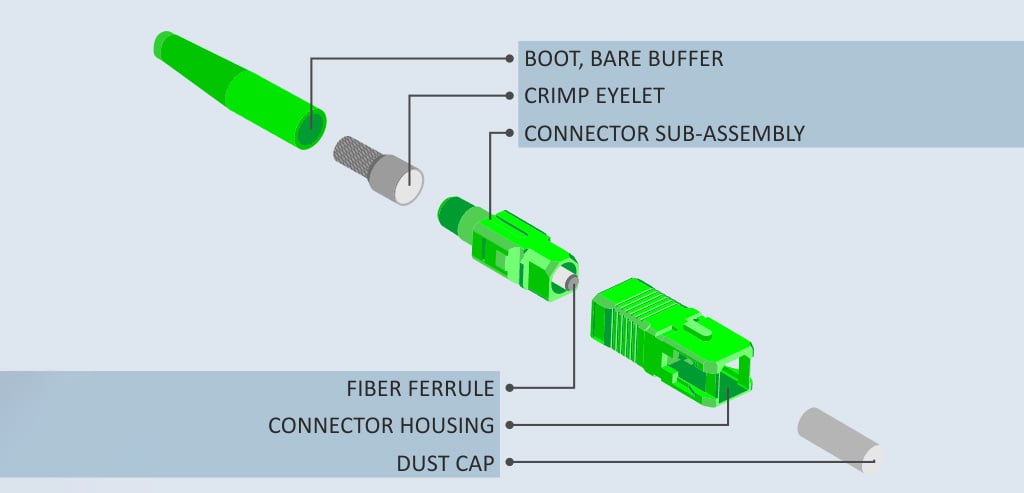

Introduction

Fibermart SC (Subscriber Connector or Standard Connector) is a single-fiber, push-pull style fiber optic connector. Originally developed by NTT in Japan in the late 1980s, it became a major industry standard for datacom, telecom, and CATV systems due to its excellent performance, robust design, and relatively compact size. It is also commonly referred to as the "Square Connector" because of its distinctive rectangular housing shape.

Features

● Push-Pull Operation: Simple, positive latching mechanism provides secure mating and easy insertion/removal, even in high-density installations.

● High-Precision Alignment: Utilizes a 2.5mm ceramic ferrule for precise fiber alignment, delivering low insertion loss and high return loss.

● Excellent Stability: The rigid, square housing offers good durability and stable performance under vibration.

● Duplex Configuration: Two SC connectors can be easily clipped together with a duplex clip to form a standard duplex connector pair for separate transmit and receive channels.

● Cost-Effective: As a mature, standardized product, it offers a reliable and economical solution.

Principle

Fibermart SC connector operates on a precise physical contact principle. The fiber is secured in the center of a ceramic ferrule, the end-face of which is polished to a specific finish (PC, UPC, or APC). When two SC connectors are inserted into an SC adapter, a split sleeve inside the adapter aligns and holds the two ferrules in exact position. The connector's square housing and internal latch mechanism engage and lock securely upon insertion, preventing accidental disconnection. To disconnect, the user simply pulls back on the connector body to release the latch.

Applications

● Telecommunications Networks: Fiber-to-the-Home (FTTH), Optical Distribution Frames (ODF), central office equipment.

● Data Centers: Server-to-switch connections, Storage Area Networks (SAN).

● Cable Television (CATV) Networks: Fiber trunks and distribution.

● Passive Optical Networks (PON): Terminations for GPON, EPON systems.

● Test & Measurement Equipment: Standard interface for power meters, light sources, and other instrumentation.

Specifications
