Fiber Optic Cleaning

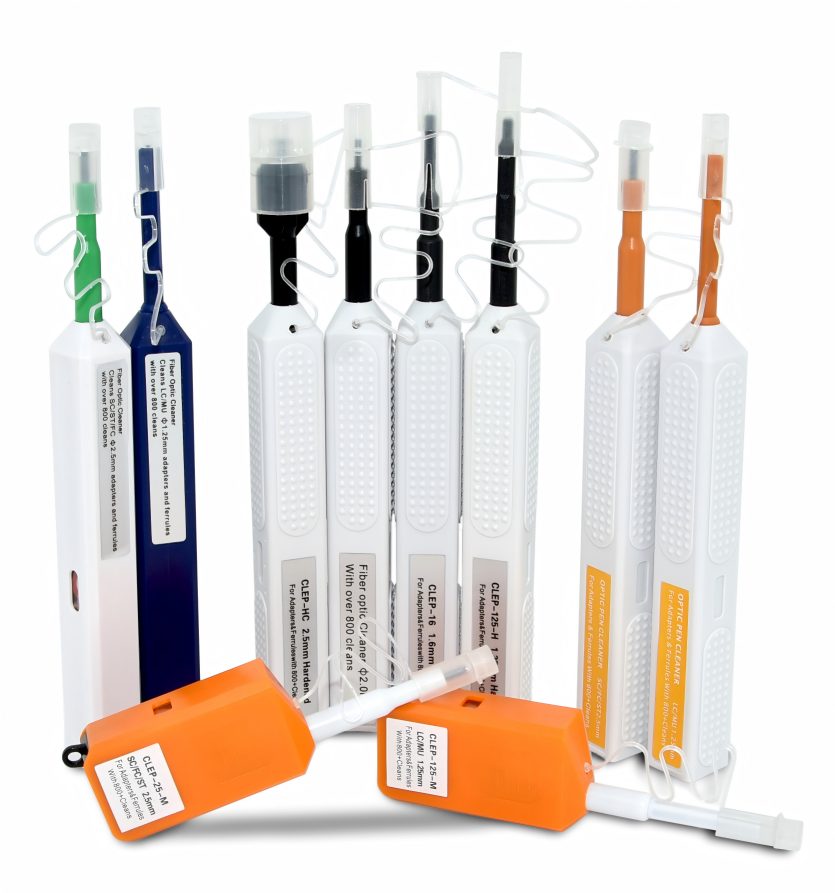

Fiber Optic Cleaning products is being highly recommended as a kind of very important tool for electrical manufactures. One of the most basic and important procedures for the maintenance of fiber optic systems is to clean the fiber optic equipment. With the increasingly growth of using Gigabit Ethernet in our daily life, the importance of keeping the fiber clean is not allowed to be ignored. Any contamination in the fiber connection can cause failure of the component or failure of the whole system. We fiber-mart provide many kinds of fiber cleaners such as fiber connector cleaner, Fujikura fiber cleaner, Optical Connector Cleaning Cards, etc. to ease or remove all kind of dirty particles, such as dust, dripping, moist. And the quality is highly confirmed. Buy it with 100% confidence.

Introduction

Contaminants such as dust, oils, and other debris on fiber optic connector end faces are primary causes of optical signal loss (attenuation), degraded network performance, and equipment failure. As data rates advance to 400G, 800G, and beyond, the loss budget for links becomes increasingly stringent. Even micron-sized particles can cause significant signal degradation or failure. Therefore, using professional tools to perform thorough cleaning of fiber end faces during manufacturing, installation, testing, and routine maintenance is a fundamental step in ensuring high-performance, reliable network operation.

Fiber Cleaning Products and Characteristics

Principle: Cleaning Methodology

● Dry Cleaning (Primary Method): Most products use specialized microfiber or lint-free materials. Through precise mechanical action (e.g., click-and-rotate, one-way wiping), they generate sufficient friction with the connector end face to physically lift and remove dust and particles without chemicals. Advanced fiber materials are anti-static to prevent re-attraction of dust post-cleaning.

● Wet Cleaning (Secondary Method): For oily films, fingerprints, and other contaminants resistant to dry cleaning, a dedicated fiber optic cleaning solvent is used. The solvent quickly dissolves oils and, with its low surface tension, carries away particles. It is followed by a dry, lint-free wipe to ensure no liquid residue remains on the end face.

● Precision Lifting (Motorized): Motorized cleaners use an internal motor to spin a cleaning stick at high speed, creating directed airflow and lift to effectively dislodge and capture contaminants from the end face and ferrule recess, achieving a deeper, more precise clean.

Applications:

● Fiber Optic Equipment Manufacturing & Testing

● Data Center Deployment & Operations

● Telecom Network Build & Maintenance

● Broadcast & Professional AV

Important Reminder: Fiber Cleaning must always be followed by inspection using a fiber optic inspection microscope. An end face is only considered truly "clean" and ready for mating when it passes visual criteria per industry standards such as IEC 61300-3-35.
