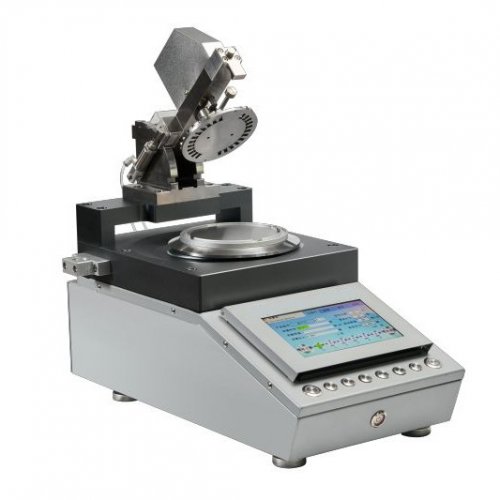

OP-5000 MPO Fiber Polishing Machine MPO/MTP Fiber Polisher

OP-5000 Fiber Polishing Machine (Domaille MPO/ MTP fiber polisher)

Introduction:

The OP5000 also has fully programmable pressure and speed ramp rates for slow starting the polishing process. It also has programmable film change counters and maintenance section for alerting operators when to change film or provide service to the machine. If the number of connectors loaded into the polishing fixture is less than the default that has been programmed, the automatic pressure adjustment feature allows the operator to enter the actual number of connectors loaded. The required pressure is then automatically recalculated to ensure that the individual connector force remains constant regardless of the number of connectors assumed in the process definition.

The OP5000 also provides the capability to copy and store your processes to a CompactFlash memory card. The CompactFlash card can be used to backup your defined processes and to copy processes from one machine to another. This not only saves process setup time for each machine, but also ensures consistent process settings.


Features:

1. The use of Fibermart polishing fixture does not require equipment adjustment, removes the influence of loose parts and processes, and has a high interference pass rate.
2. Touch screen operation, supports more than 12 program storage and call, and only needs to select the corresponding product on the touch screen when changing products, without the need to adjust the pressure, time, speed, simplify the operation process and strength, and improve quality stability.
3. The speed regulation, pressure, time, slow start pressurization, polishing compensation parameters and each polishing pad and other parameters can be set separately, and the set value and current actual value of the relevant parameters are displayed in real time during the polishing process.
4. The structure is more stable, the pressure range is wider, and there is basically no pressure fluctuation during the polishing process. 24 products can be ground at the same time to keep the equipment stable.
5. Supports advanced function options such as slow start, slow pressurization, polishing compensation and gradual increase of polishing time, which is conducive to ensuring product quality and reducing polishing sheet loss.
6. The main original components are internationally renowned brands. The theme structure has been tested for about 3 years, and the structural life and precision are maintained for a long time.
7. Compatible with all Domaille original fixtures,
the equipment has higher precision and stability.
8. Especially suitable for polishing MTP (MPO), MTRJ, E2000, FA and other products.
