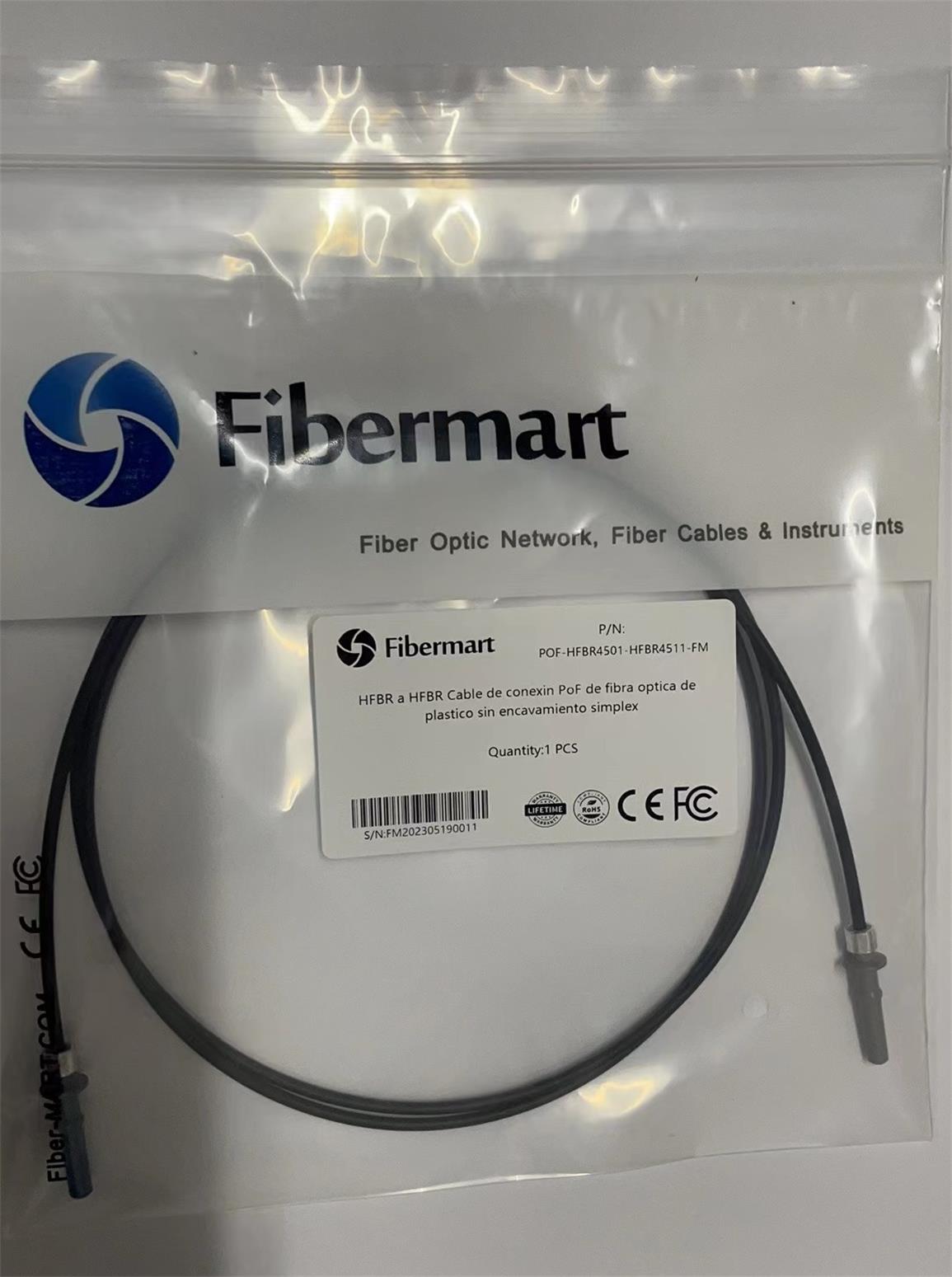

HFBR4501 to HFBR4511 Simplex Non-Latching Plastic Optical Fiber POF Patch Cord

Simplex Non-Latching Plastic HFBR to HFBR Optical Fiber POF Patch Cord

Four connector styles are available for termination of plastic optical fiber: simplex, simplex latching, duplex and duplex latching. All connectors provide a snap-in action when mated to versatile link components. Simplex connectors are color coded to facilitate identification of transmitter and receiver connections. Duplex connectors are keyed so that proper orientation is ensured during insertion. If the POF cable or connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive.

Features:

HFBR connectors provide excellent retention force combined with easy snap-in action
Plastic fiber cable delivers high bandwidth and a tight bend bend radius when compared to traditional glass fiber
These cables are available in lengths ranging from 0.3 meters to 50 meters
Connectors are HFBR-4501 (gray) to HFBR-4511 (blue)
2.2mm polyethylene jacket on 1.0mm plastic optical fiber
Black color cable
Notes: Custom cable assemblies will be made in 2-3 days with no minimum requirements

Applications:

Automotive
Industrial control
Medical
Gaming equipment
