  • MTP to 6 LC UPC Duplex 0.35dB IL Polarity A 12 Fibers OM4 MTP LGX Cassette

MTP to 6 LC UPC Duplex 0.35dB IL Polarity A 12 Fibers OM4 MTP LGX Cassette

Product Item: #13628
P/N: FLG-1U-1MTP6LCDOM4L
US$67.00



Order Today, Ship before 04/03/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

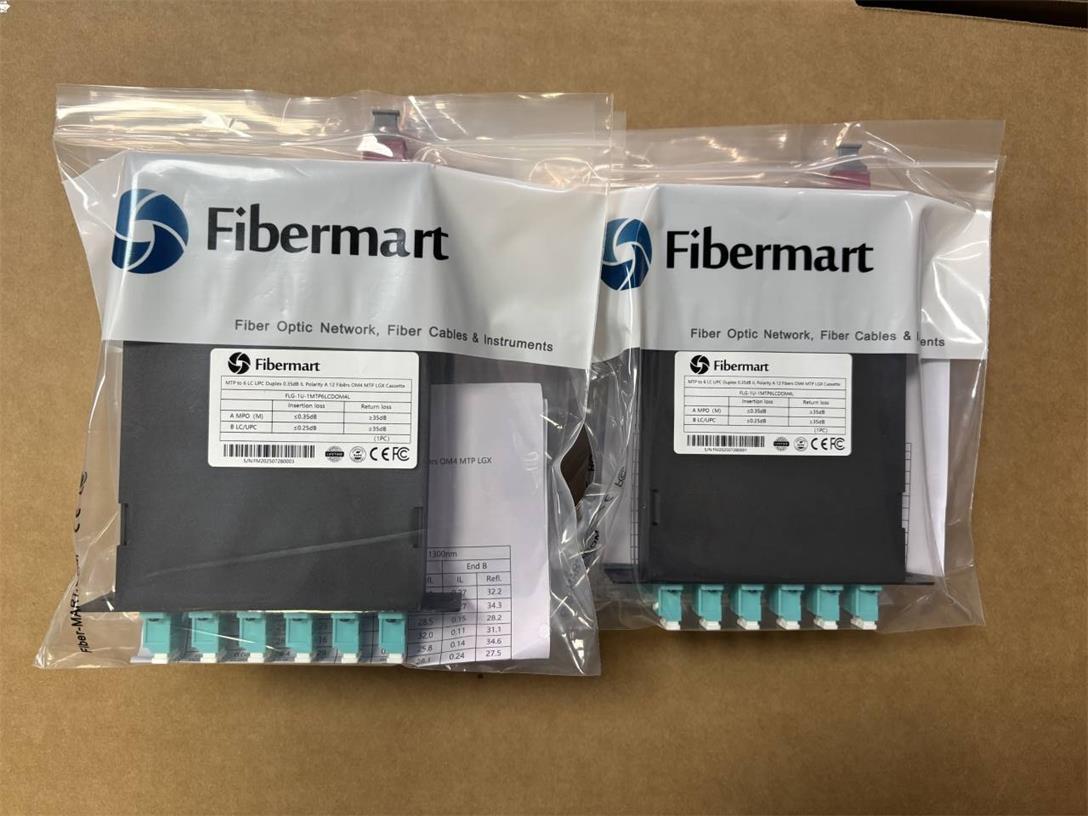

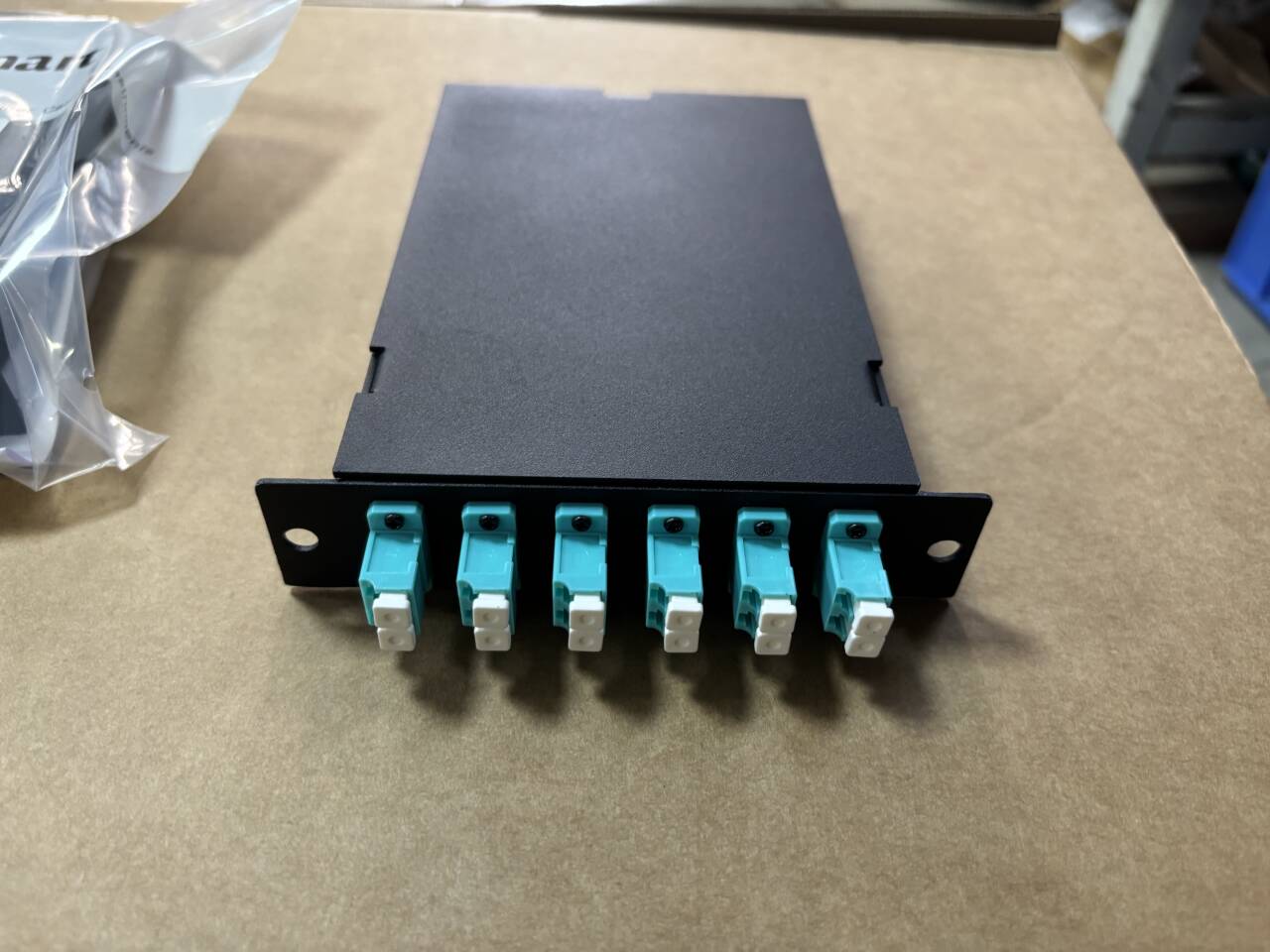

MTP Male to 6 LC UPC Duplex 0.35dB IL Polarity A 12 Fibers OM4 MTP LGX Cassette



Fiber-MART's MTP LGX Cassette that provides secure transition between MTP and LC discrete connectors, and comes pre-terminated with 12 LC connections on the front side and one 12 fibers MTP connector at the rear. Inside the MTP cassette there is one 12 fiber harness that breakout from the LC connector to the MTP connector, giving a quick and easy plug-and-play data solution.


Fiber Count 12 Fiber Type OM4 MMF
Polarity Method A Insertion Loss 0.35dB Max.
Front Connector Type 6 LC UPC Duplex Rear Connector Type 1x MTP Male
Dimension 156x129x29(mm) RoHS Compliancy Applicability
Operating Temperature Room Temperature 23C (73F ) Storage Temperature -40C ~ +75C



Features and Applications

Factory terminated and 100%testedElite insertion loss of 0.35dB maximumAvailable with LGX Fiber Enclosure

Data Center SolutionStorage Area NetworkMain and Equipment Distribution Areas



Method A Cassette Illustration



Comparison Traditional Cabling with MTP Cassette Cabling Solutions

Modular system allows for rapid deployment of data center infrastructure during moves, adds and changes and this innovative system is specially designed to reduce installation time and cost for an optical network.

Cabling Solution Installation Time within Data Center Cost-Product and Labour Rack Space for Cable Management Fault Isolation Single Port Replacement Cabling Maintenance
Traditional Cabling Using LC to LC Panels High Medium High Easy Easy Medium
MTP Solutions Using MTP Trunks/Harness and Cassettes Low Medium Low Medium Hard Low



Fiber Enclosure with MTP LGX Cassette

The LGX style MPO/MTP Cassette will match most LGX style Fiber Enclosure. Fiber-MART can provide 1RU rack mount LGX fiber enclosure to hold up to 3 pieces LGX cassettes and 4RU rack mount LGX fiber enclosure to hold up to 12 pieces LGX cassettes.
