PM Fiber Collimator with 1M Dual Fiber 1550nm C-lends Glass Tube 5mm WD
Fiber Collimators are devices used to expand and collimate the output light at the fiber end, or to couple light beams between two fibers. They are a module that combine a fiber and a lens, and has a function that produces parallel beams. When the fiber collimators are manufactured, the positions of the fiber and lens are adjusted so that parallel beams can be obtained, and this generally requires extremely fine adjustments. The more energy the fiber collimator is able to gather form the source and launch into the fiber end.They are available with different wavelengths (850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm) or fiber options (SM fiber, MM fiber, PM fiber, and LMA fiber, etc.).
Characteristics
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Type | Single Fiber | Dual Fiber |
| Grade | Premium | Premium |
| Wavelength (nm) | 1310+30, 1550+30, 1310/1550+30, 980/1550+30 or custom wavelength | |
| Insertion Loss (Typ.) (dB) | 0.17 | 0.2 |
| Insertion Loss (Max.) (dB) | 0.2 | 0.28 |
| Return Loss (Typ.) | 65 | 65 |
| Beam Diameter (mm) | <0.45 (1.8mm Lens) <0.35 (1.0mm Lens) | <0.45 (1.8mm Lens) <0.35 (1.0mm Lens) |
| Operating Temperature( ° C ) | -20 ~+75 | |
| Storage Temperature ( ° C ) | -40 ~+85 | |
| Dimensions (mm) | 1.8(OD) Lens(Standard) |
2.40x10 or 3.2x10 gold plated SS tube or 2.78x10 glass tube or custom size |
| 1.0(OD) Lens(Mini-size) |
1.40x9 or 2.8x10 gold plated SS tube 2.0x9 glass tube or custom size |
|
| Fiber Type | 250um bare fiber or 900um tight buffer | |
|
At 10mm working distance and single wavelength. (Dual wavelength IL will increase by 0.1 dB) |
||
|
At <1mm reflection working distance (RWD) and single wavelength. |
|
|
Parameters |
Specification |
|
1550nm PM fiber collimator |
||
|
1 |
Operating wavelength |
1550±1nm |
|
2 |
Output beam diameter (1/e2) |
0.92mm (typical) |
|
3 |
Full angle beam divergence |
2.14±0.1mrad |
|
4 |
AR coating reflection |
≤0.2% at 1550nm |
|
5 |
Return Loss |
≥50dB |
|
6 |
Fiber mode field diameter |
10.1um (typical) |
|
7 |
Extinction ratio |
>20dB |
|
8 |
Fiber |
PM fiber, 1m pigtail |
|
9 |
Connector |
FC/APC |
|
10 |
Clear Aperture |
4mm (typical) |
|
11 |
Focal length |
4.73mm (typical) |
|
12 |
Warranty |
1 year |

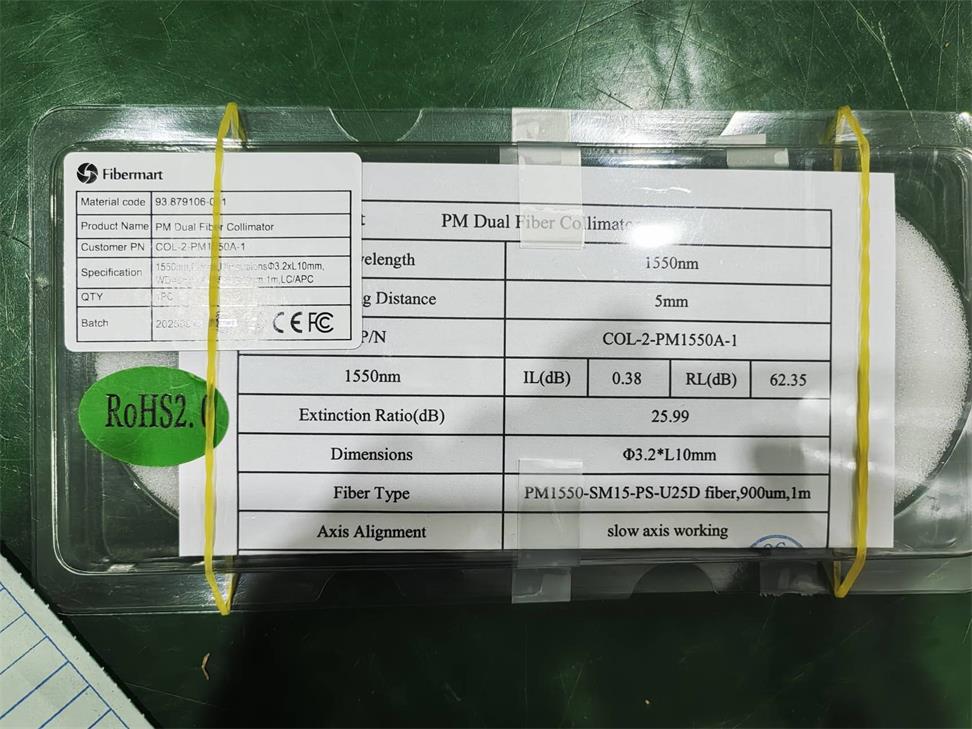

Sample Picture
Dimension
