Ribbon Fan-out 12 Fiber OM4 Multimode LC/SC/ST/FC Pigtail

Product Item: #16388
P/N: OM4-12F-R-FM
Starting at: US$15.00

Please Choose:








Order Today, Ship before 07/12/2022, from U.S. or HK
  • Description
  • Datasheet
  • FAQ
  • Tags

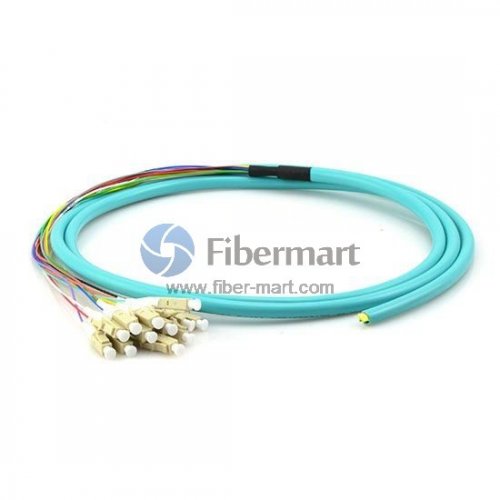

12-Fiber 50/125 OM4 Multimode Ribbon Fan-out LC/SC/ST/FC Pigtail



Ribbon fan-out patch cord provide a stable and reliable connection for single mode fiber.
Fiber-Mart.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3, OM4 types, simplex fiber, duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. Our pigtails are available in different connectors like FC, SC, ST and LC. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.

Warm Tips:
1.The 12 cores ribbon pigtail is usual, and it is available. But other cores(4 cores, 6 cores, 8 cores and so on)ribbon pigtail are unusual. If you need it, please feel free to enquiry us at [email protected]
2.The default fiber diameter for the cable is 0.9mm,if you'd like to customize other types as 2.0mm,3.0mm,please kindly enquiry us. The diameter refers to the thickness of the cable,the size is able to match the corresponding equipment port.

Key Features

  • Low Insertion Loss
  • High Return Loss
  • Good Repeatability
  • Good Exchangeability
  • Good Temperature Stability

Applications

  • ODF
  • Optic-fiber Communication Systems
  • Computer Networks
  • Optical Access Networks
  • Test Equipment



Specification

Parameters Specification
Fiber Type (um) 1OG OM4 50/125
Insertion Loss (dB) ≤ 0. 2 0
Return Loss (dB) ≥ 35
Repeatability (dB) ≤ 0. 1 0
Exchangeability (dB) ≤ 0. 2 0
Durability >1000 Times
Operating Temperature -40 ~ +80 ° C
Storage Temperature -40 ~ +85 ° C
Color Aqua




Kind Note: The picture is for single mode, only for reference.



Custom Information

Fiber-Mart offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.




Datasheet to Download

If any option which is not indicate in your Ordering, please write your option or request in your Order Remarks, or send email to [email protected].



You can place order and checkout online at Fiber-MART.COM, you can send us a Purchase Order for offline purchase, or request a Proforma Invoice to make everything clear!



Shipping Time


FedEx IP: Within 1-4 business days
FedEx IE: Within 4-6 business days
DHL: Within 2-6 business days
EMS: Within 4-15 business days
UPS: Within 1-3 business days
Hong Kong Post Airmail: Within 10-30 business days


Payment:


Paypal or Credit/debit card
Wire Transfer, West Union


Returns:


Satisfactory return or item exchange


Guarantee:


Money back guarantee


Warranty:


Limited Warranty


Volume pricing:


If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
