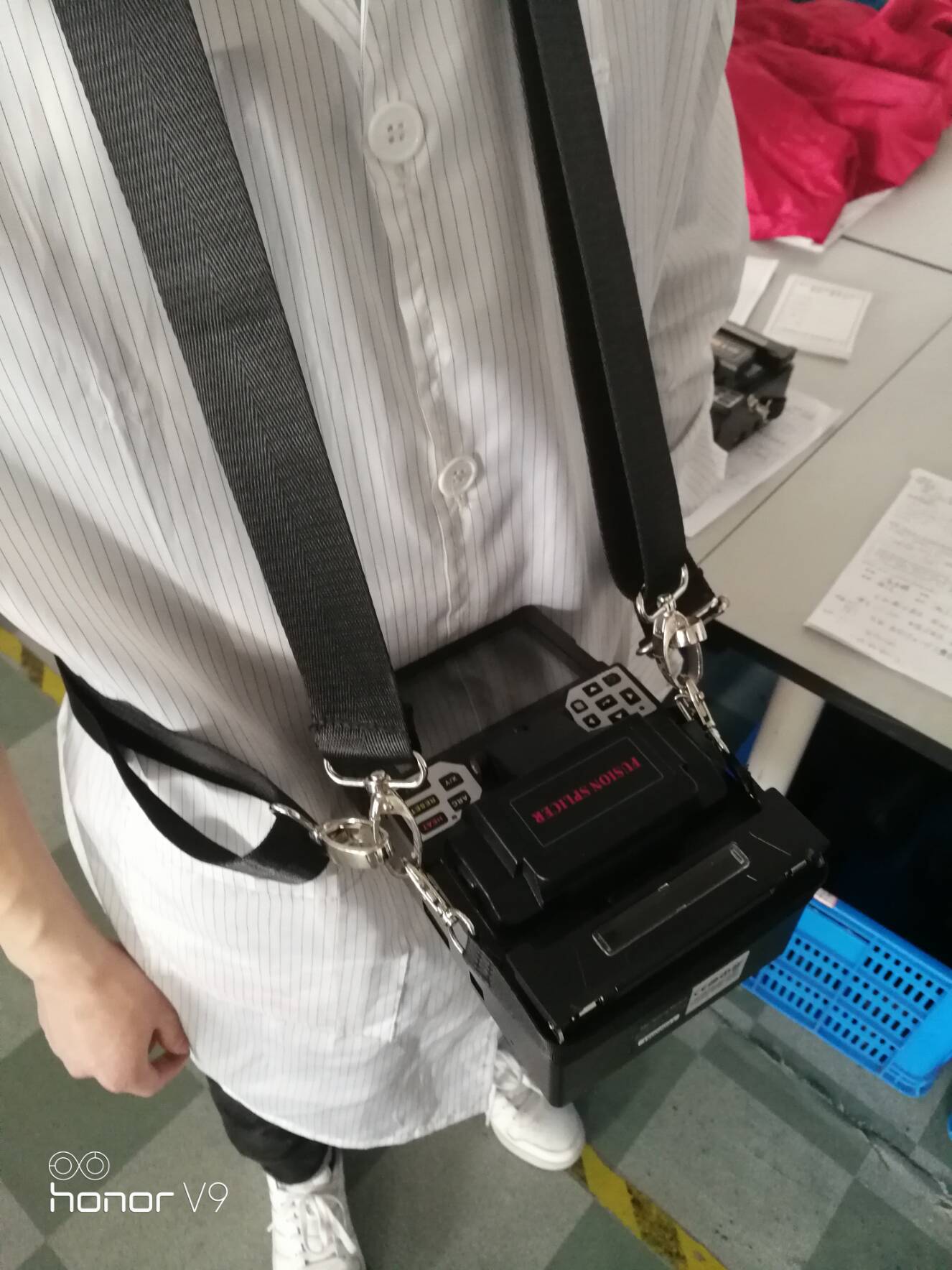

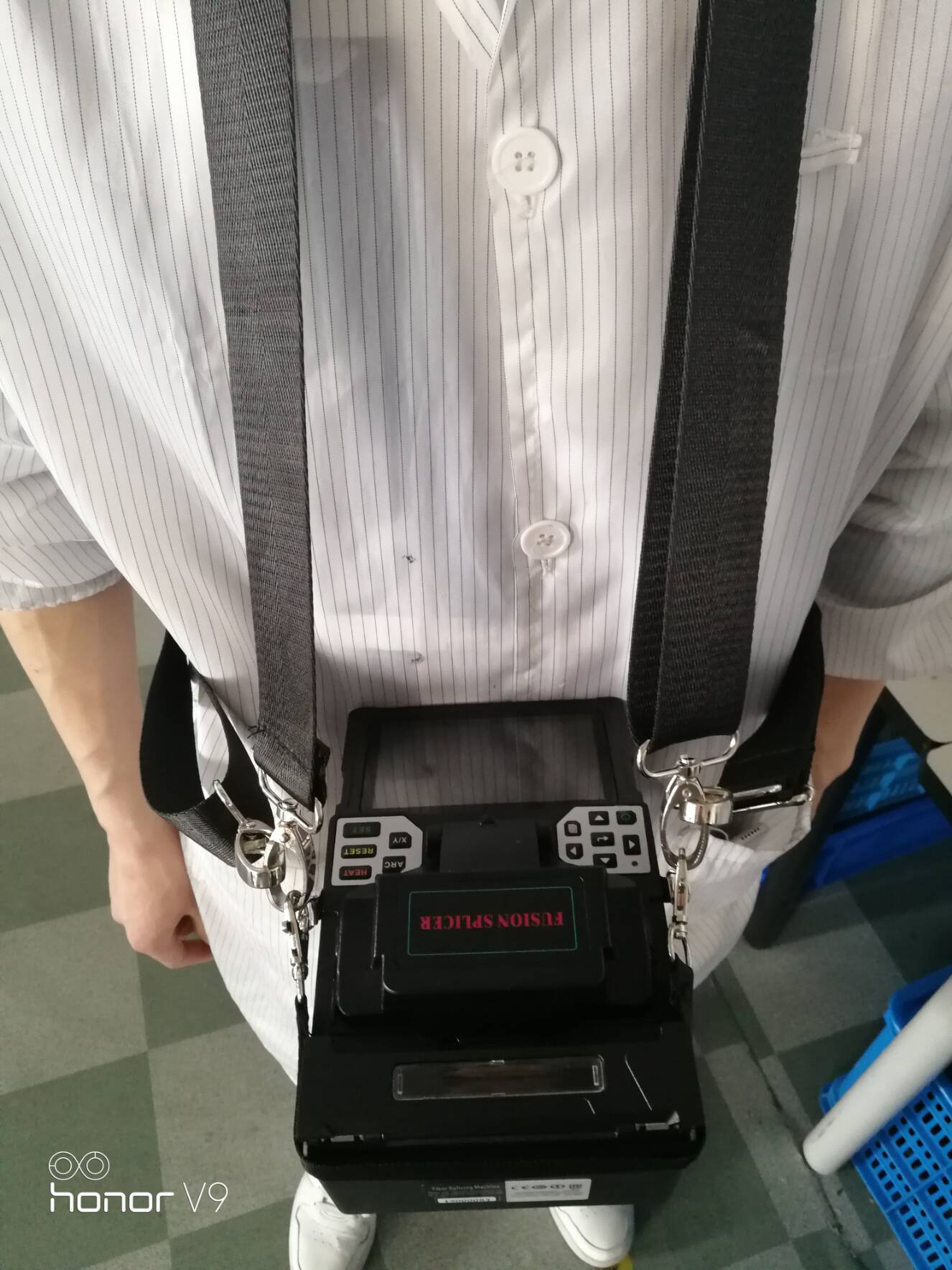

ST-700 Fiber Fusion Splicing Machine
Specifications
1.Core/Clad alignment
2.Arc calibrated by temperature&pressure
3.Metro style GUI
Features:
l PAS image digital processing system,core or clad alignment is optional;
l The arc is calibrated by the environmental parameters as temperature and pressure;
l Variety display group,the Maximum image magnification is 290;
l Typical splicing time is 8 second,28 seconds heating;
l Metro style GUI,easy to operate;
l Intelligence operate,auto heat or work when open the shield;
l High definition 5.7 colorful LCD;
l Hight to 4000 groups fusion records can be stored;
l Rubber armor protect machine body from shock or impact;
l High capacity,plug battery,long work time;
l Software can be upgraded through USB port;
Teachnical parameter:
|
|
|
|
Applicable fiber type
|
SM(Single Mode),MM(Multi Mode),DS(Dispersion Shift),NZDS(Non Zero Dispersion Shift)
|
|
Diameter of cladding
|
80 -150um
|
|
Diameter of coating
|
160 - 900um
|
|
Typical fusion loss
|
SM 0.02dB,MM 0.01dB,NZDS 0.03dB, EZ-Bend 0.04dB
|
|
Return loss
|
Better than 60dB
|
|
Cutting length
|
10~16mm(Diameter of coating < 250祄);16mm(Diameter of coating 250~1000祄)
|
|
Fusion program
|
40 groups
|
|
Operate mode
|
Manual,Automatic
|
|
Auto-Heat
|
Available
|
|
Typical fusion time
|
Less than 7 seconds
|
|
Heating time
|
28 seconds for 60mm,40mm length heat shrinkable sleeve
|
|
Magnification
|
300 times for X|Y single display,150 times for XY double display
|
|
Photoelectric system
|
Two high sensitive cameras,5.6?40?80 pixel colourful LCD
|
|
Fusion data record
|
Store 4000 groups fusion record
|
|
Loss evaluation
|
Available
|
|
Pull testing
|
1.8~2.2N
|
|
Interface
|
GUI menu interface,easy manipulation
|
|
Battery capacity
|
8800mAh,200 times of fusion and heating,hot plug,real-time power monitor
|
|
Power supply
|
Adaptor,input:AC 100-240V(50/60HZ),output:DC 11~13.5V
|
|
Electric pole lifetime
|
More than 3000 times fusion,user can replace pole conveniently
|
|
External port
|
USB2.0 port,used to derive fusion record data ,software upgrade
|
|
Operate environment
|
Altitude;0~5000m;Relative humidity:0~95%;Temperature:-10癈~+50癈;Wind speed:max 15m/s
|
|
Volume/Weight
|
160mm(L)?50mm(W)?45mm(H) / 2.6kg
|
Standard Package:
|
No.
|
name
|
quantity
|
|
1
|
Main machine
|
1
|
|
2
|
Fiber cutter
|
1
|
|
3
|
Electric pole
|
1 pair
|
|
4
|
Fiber stripper
|
1
|
|
5
|
Alcohol bottle
|
1
|
|
6
|
Cooling holder
|
1
|
|
7
|
Li-ion battery
|
1
|
|
8
|
Adapator
|
1
|
|
9
|
Carrying case
|
1
|
|
10
|
Manual guide
|
1
|
