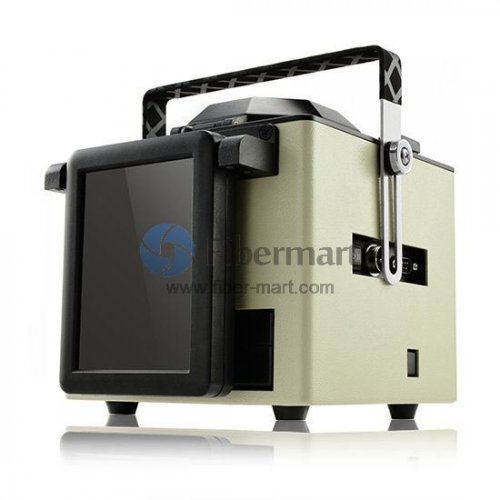

DVP-730 Single Fiber Fusion Splicer

Features

·Color LCD monitor & 256 magnification
·Compact & Light weight
·Reversible monitor with control panel on each side
·Max. wind velocity of 15m/s.
·8 Sec. splice time, 40 Sec. tube-heat time
·Simultaneous X and Y views
·Large capacity internal battery
·SYSTEM TEST ensures the best working condition
·User programmable
·Auto check fiber end face
·Auto calibrate parameters
·Store 8000 groups of splice results
·Multiple language options

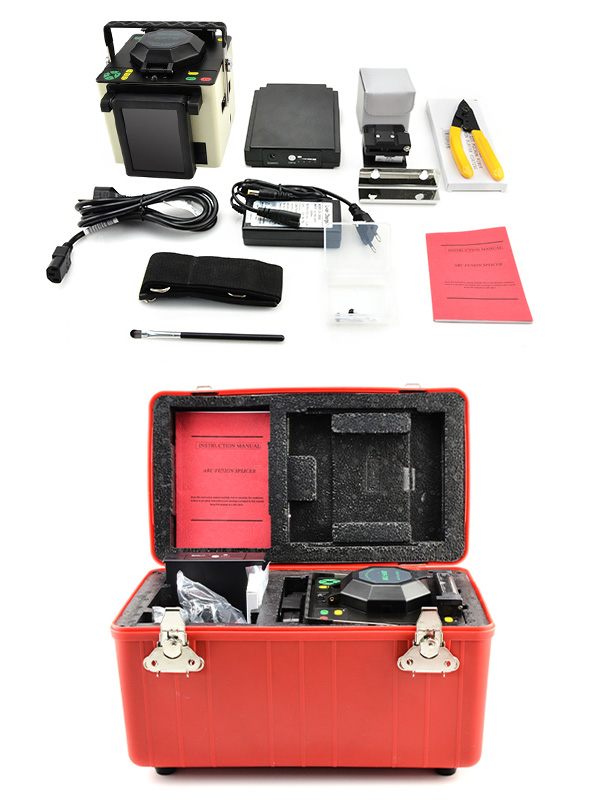

Standard Package

Fusion Splicer, AC adapter, Cooling tray, Manual instruction, AC power cord, Internal battery, Carry case, Fiber cleaver, Charger, Spare electrode, Fiber stripper

Note: Fiber Optic Fusion splicer is a must in the process of properly joining two bare optical fibers together. For this kind of fine workmanship product, we Fiber-Mart.com provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of the DVP-730 Single Fiber Fusion Splicer, please feel free to contact us. We will try our best to provide you the best service.

Picture Details

Applicable fibers	SM, MM, DS,NZ-DS, EDF
Cladding diameter	100 to 150um
Coating diameter	100 to 1000um
Fiber cleaved length	8-22mm (standard)
Splicing mode	Auto & Manual
Average splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	≥ 60dB
Environment conditions	-25°C~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment	-40°C~+80°C(temperature) , 0~95%RH (humidity)
Protection sleeve length	20mm, 40mm, 60mm
Tension test	2.0N (Standard)
Language	English, Chinese, Korea, Russian,Spanish etc.
Interface	RS232 interface & video output
Power supply	AC adaptor: 85~260V input voltage
Internal battery: 12V voltage, 10Ah, up to 200 times of continuous splices and heats
DC adaptor: 12V voltage, optional multipurpose external battery
Dimensions	170(W)×140(H)×170(D) mm
Weight	3.3kg
