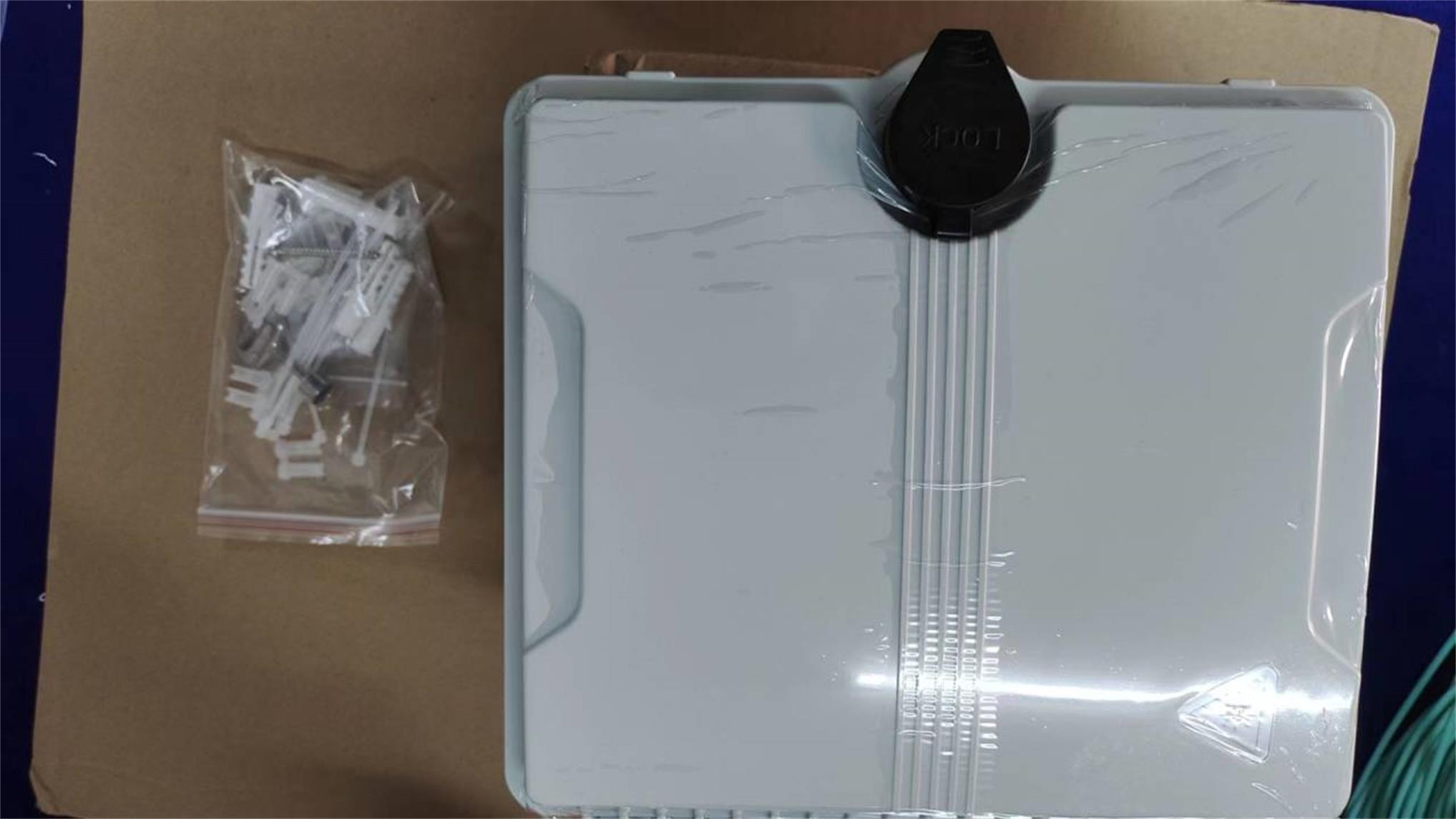

IP65 Supply 1/8 port faceplate FTTH optic fiber box outdoor plastic fiber terminal box with SC/LC adapter

General Description

The Optical Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:

1.Total enclosed structure, be in nice shape.
2.Material: PC+ABS or ABS, wet-proof, water-proof, dust-proof, anti-aging.

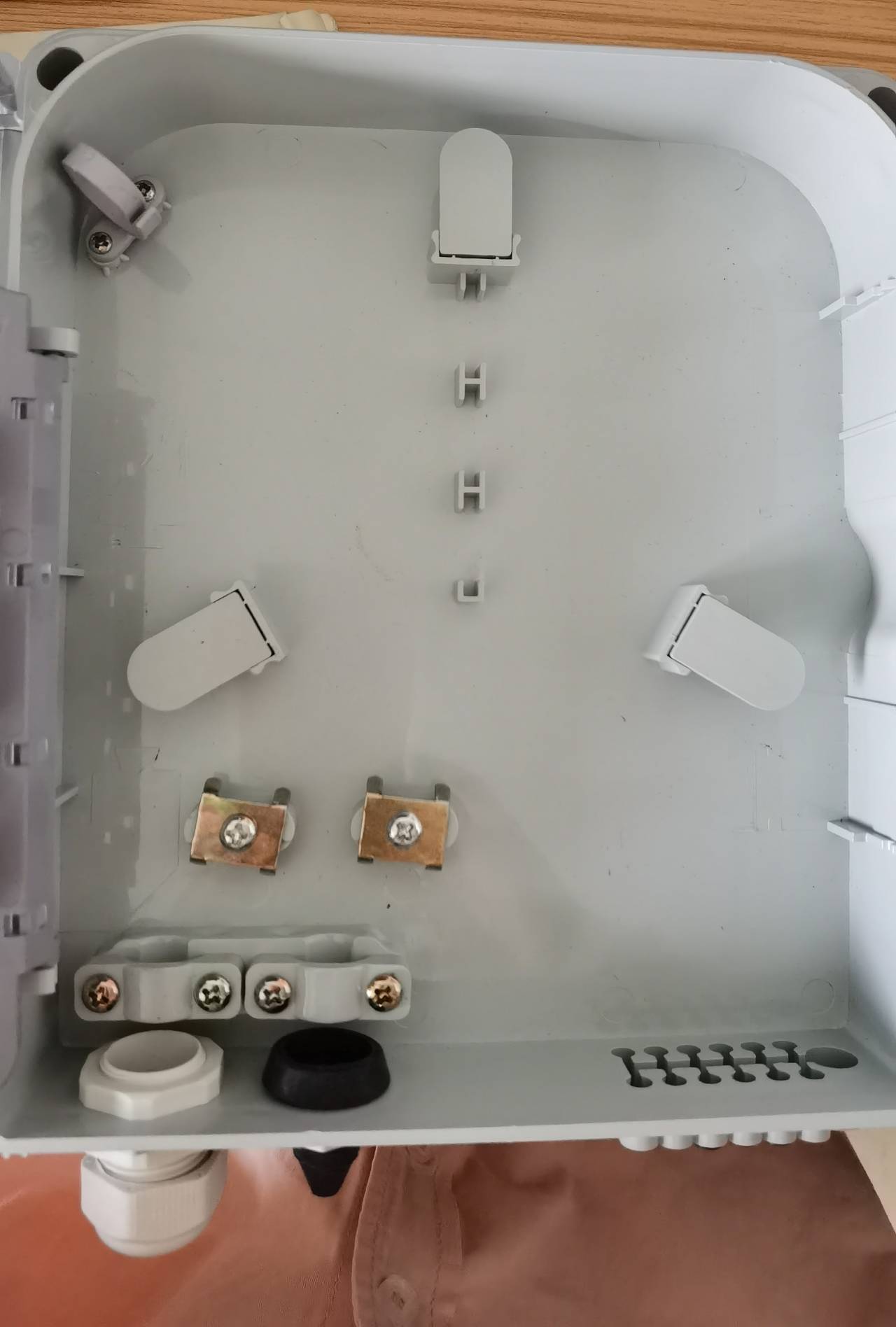

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc. all in one.

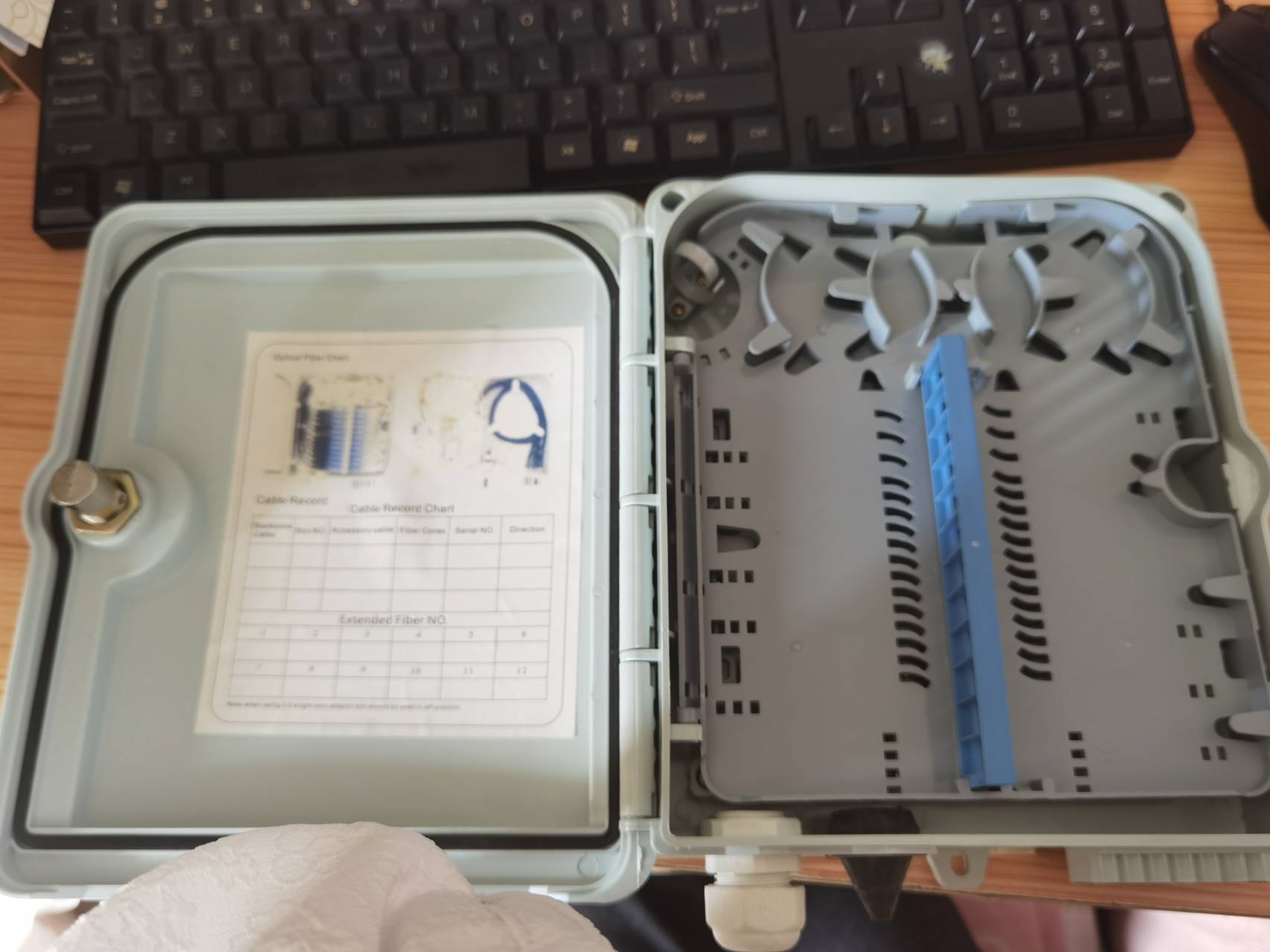

4.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6.Most of the types can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
7.Distributing optic into 2-48 paths by PLC splitter, protecting optic fiberto terminal, easy to operate.
8.Can be installed with PLC splitter, optional splice tray, lock with a key
9.Entering fiber cables of 1~48 cores capacity fuse and splice with pigtails, connecting PLC splitter pigtails.
10.FTTH cable connecting the PLC splitter pigtails through SC, FC, LC duplex adapters panel, entering into building or home.
11.IP 65 Protection Rating, antirust, dust proof, impact resistance, excellently stable performance, long lifespan.
12.OEM and customer's designation are acceptable

Applications:

1.Optical LAN & WAN & CATV
2.FTTH project & FTTX
3.Testing instruments
4.Optical fiber communication networks
5.PON Networks
6.Optical Signal Distribution

Specification

Environmental Requirement
Working Temperature   -40℃~+85℃
Relative humidity   ≤85%(+30℃)
Atmospheric pressure   70KPa~106KPa
Main technical data
Insertion loss   0.2dB
UPC return loss   50dB
APC return loss   60dB
Life of insertion and extraction   1000times
Thunder-proof Technical Data
The grounding device is isolated with the cabinet, isolation resistance is no less than2x104MΩ/500V(DC); IR≥2x104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V

Dimension(LxWxH)mm   225*220*55mm
Fiber Count   8Cores
Installation   Wall mounting(outdoorindoor),
Level of Protection   IP65
Cable Entries   Supporting Uncut
Max Cable Diameter   Max Input =φ10mm, Max output =2x3mm
Configuration   8pcs SC adapter and
8pcs Double SC and 1 pcs 1*8 Blockless PLC
