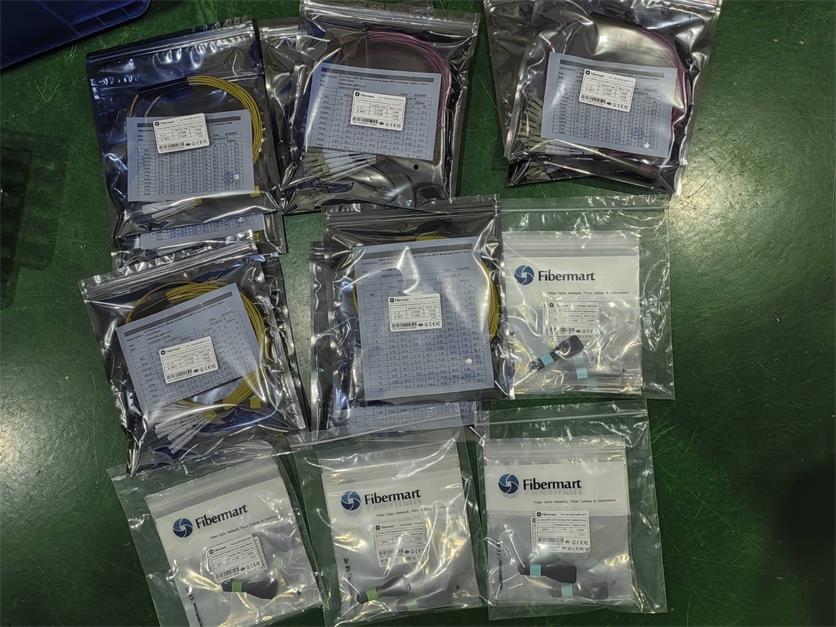

24 Fibers MPO OM4 Multimode Fiber Loopback Module

24-Fibers MPO/MTP OM4 Multimode Fiber Loopback Module

MPO/MTP Loopback modules are used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface – 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.

Features

• SM 9/125, MM 50/125, MM 62.5/125
• 12 or 24 Fibre Ferrule MPO/MTP
• LSZH, OFNP, OFNR Cable Jacket Options
• Female and Male MPO/MTP option of Connectors
• Polarity Variants selection
• 40G QSFP+ and 100G CXP/CFP transceivers
• Factory Terminated and Tested
• MPO/MTP Interface - MPO/MTP components feature superior optical and mechanical properties

Applications

·Data Centre Infrastructure
·Storage Area Network- Fibre Channel
·Parallel Optics
·Infiniband
·Emerging 40 and 100Gbps Protocols

Specifications

Polarity (Channel Alignment)

12-MTP VS 24-MTP

12-fiber MTP interface for 40 Gig means 4 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 8 fibers (i.e.,4 transmit and 4 receive).
24-fiber MTP interface for 100 Gig means 10 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 20 fibers (i.e.,10 transmit and 10 receive).
