2x8 Fiber PLC Splitter with Standard LGX Metal Box

Press Esc key to close this popup
  • 2x8 Fiber PLC Splitter with Standard LGX Metal Box

2x8 Fiber PLC Splitter with Standard LGX Metal Box

Product Item: #3010
P/N: PLC-L-2X8
US$54.00

Please Choose:








Order Today, Ship before 04/03/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

Fiber PLC Splitter 2x8 with Standard LGX Metal Box



PLC Splitter is based on planar lightwave circuit technology.
Fiber-Mart 2x8 Fiber PLC Splitter can distribute or combine 2 optical signals into 8 outputs fibers.

The 2x8 PLC Splitter, G.657A Fiber, FC, SC, ST & LC connectors for choice, standard LGX metal box package, features high reliability, small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting



LGX Box PLC Splitter Features

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1260~1650nm
  • High Reliability and Stability
  • Telcordia GR-1209-CORE-2001 Compliant
  • Telcordia GR-1221-CORE-1999 Compliant
  • Standard LGX Metal Box- Durable Package, Protective, Really Suitable for Outdoor Use



LGX Box PLC Splitter Applications

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Telecommunication Networks



Mechanical Drawing



V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels



Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16, 2x2, 2x4, 2x8, 2x16 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like.
c. The length of pigtail can be also customized; welcome to contact us for more details.



LGX Box Type Advantage

Fiber-Mart LGX box type PLC Splitter is the best choice to install on the above 4U Rack Chassis, which is widely used in FTTH networks.

The 4U Rack Chassis features Versatile cable management as below:
Glass door-provide a good cover for inside LGX device, protect from dust and damage.
Cable Management Bar, rear (4 hook and Loop Fasteners included)- provides a trough where excess cable can be stored
12 pcs LGX box capacity- benefit for high density center

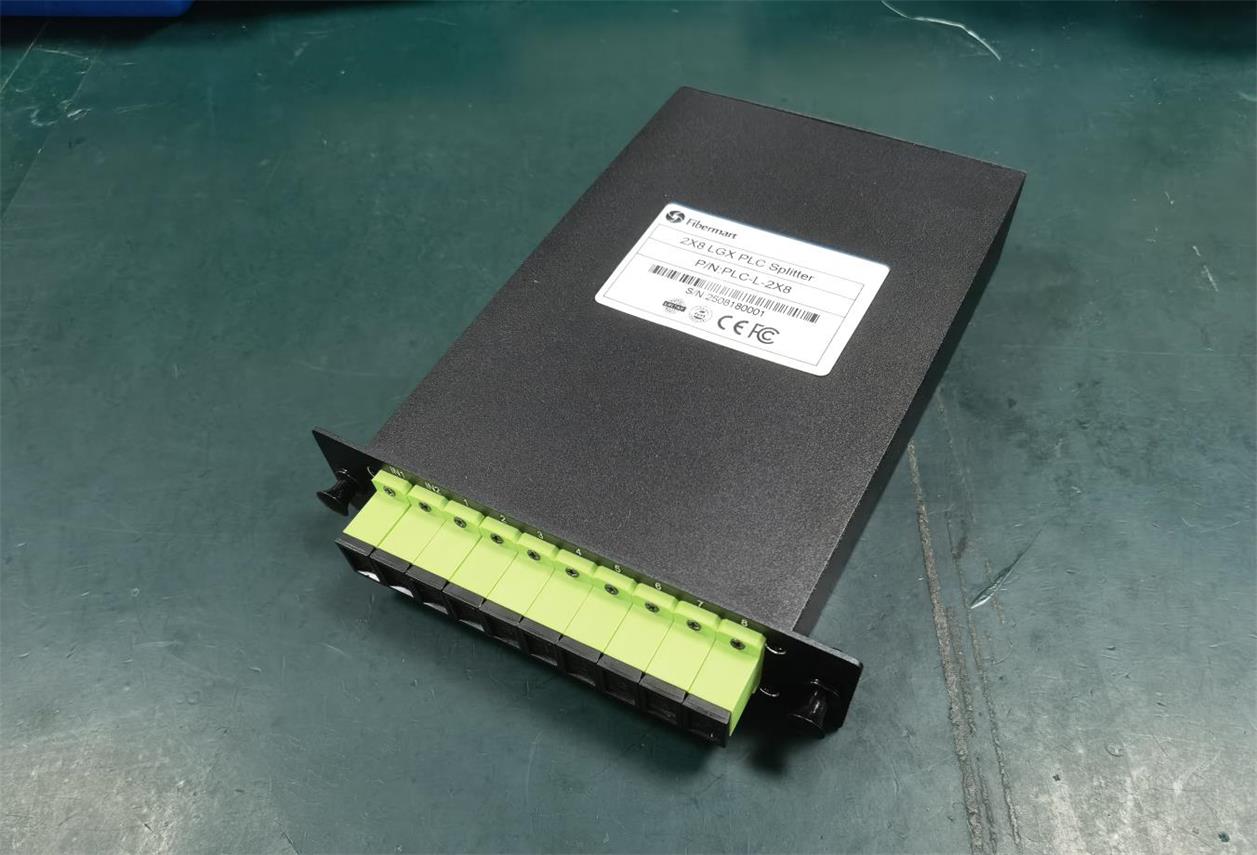

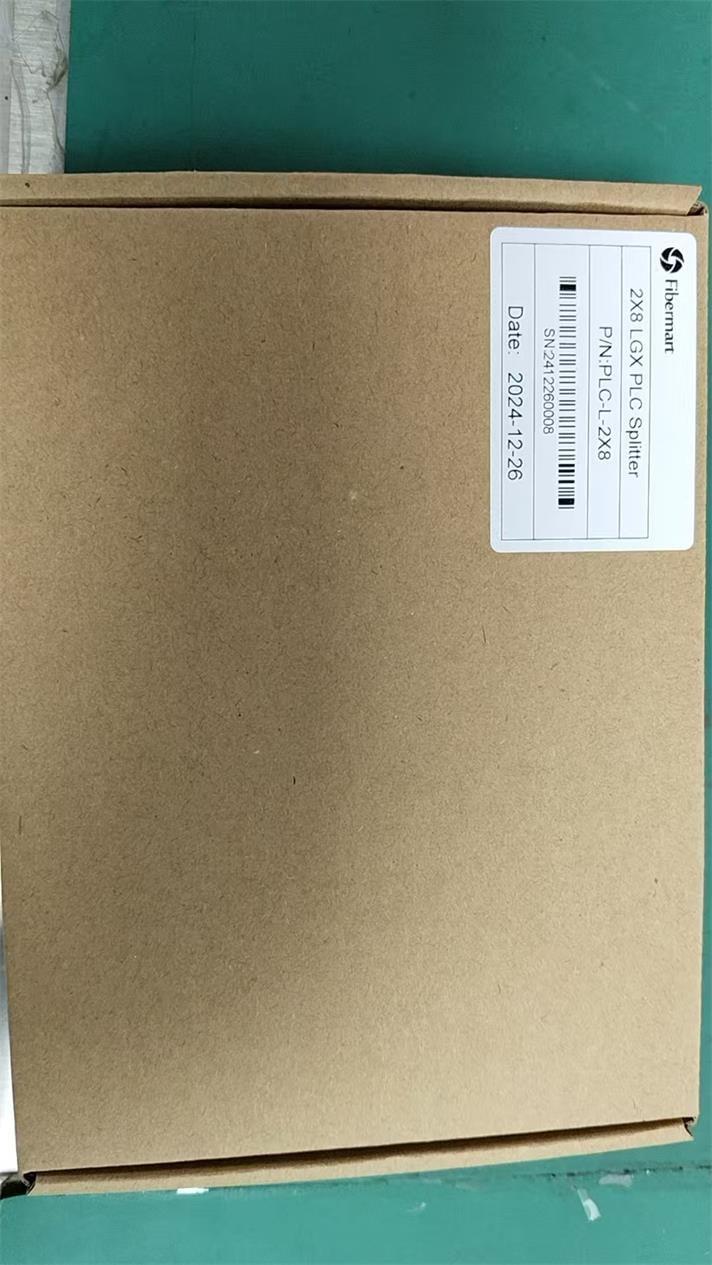

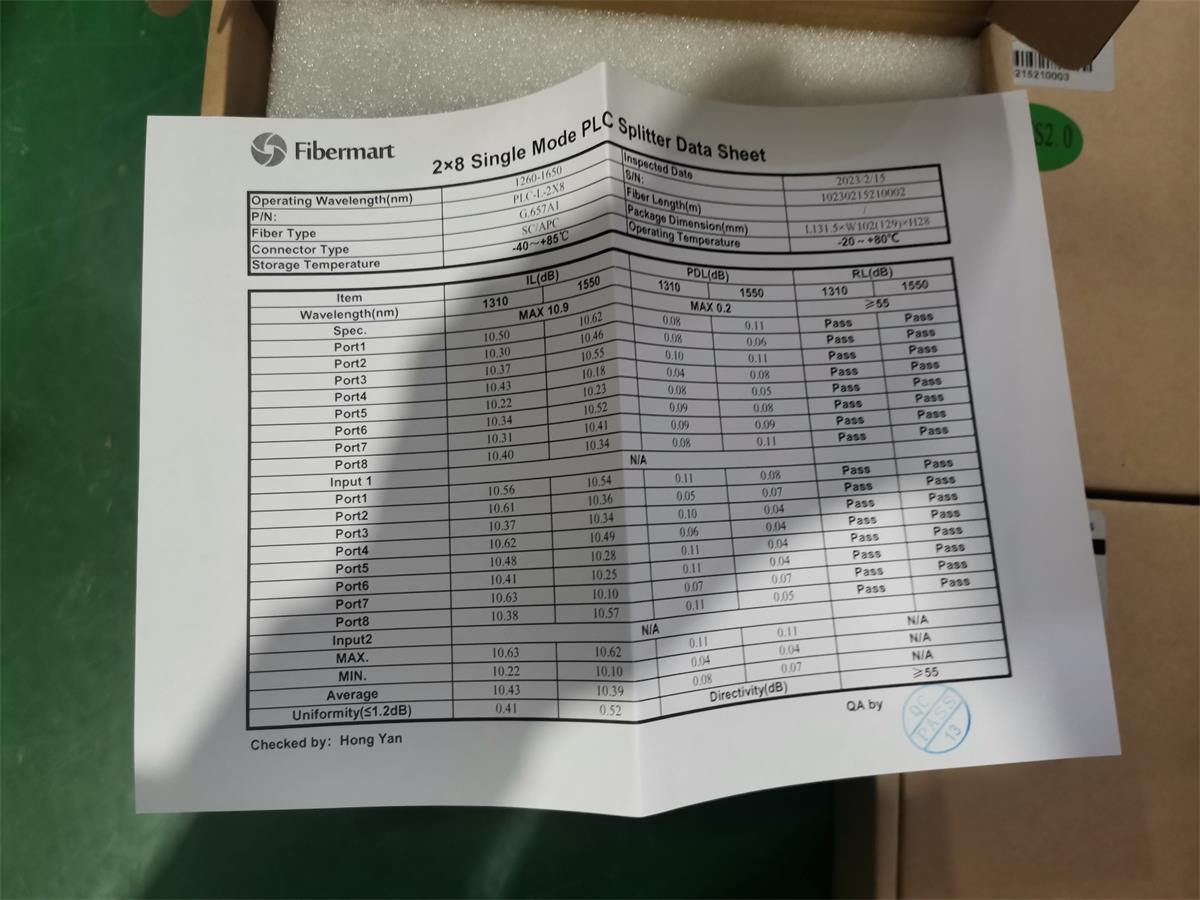

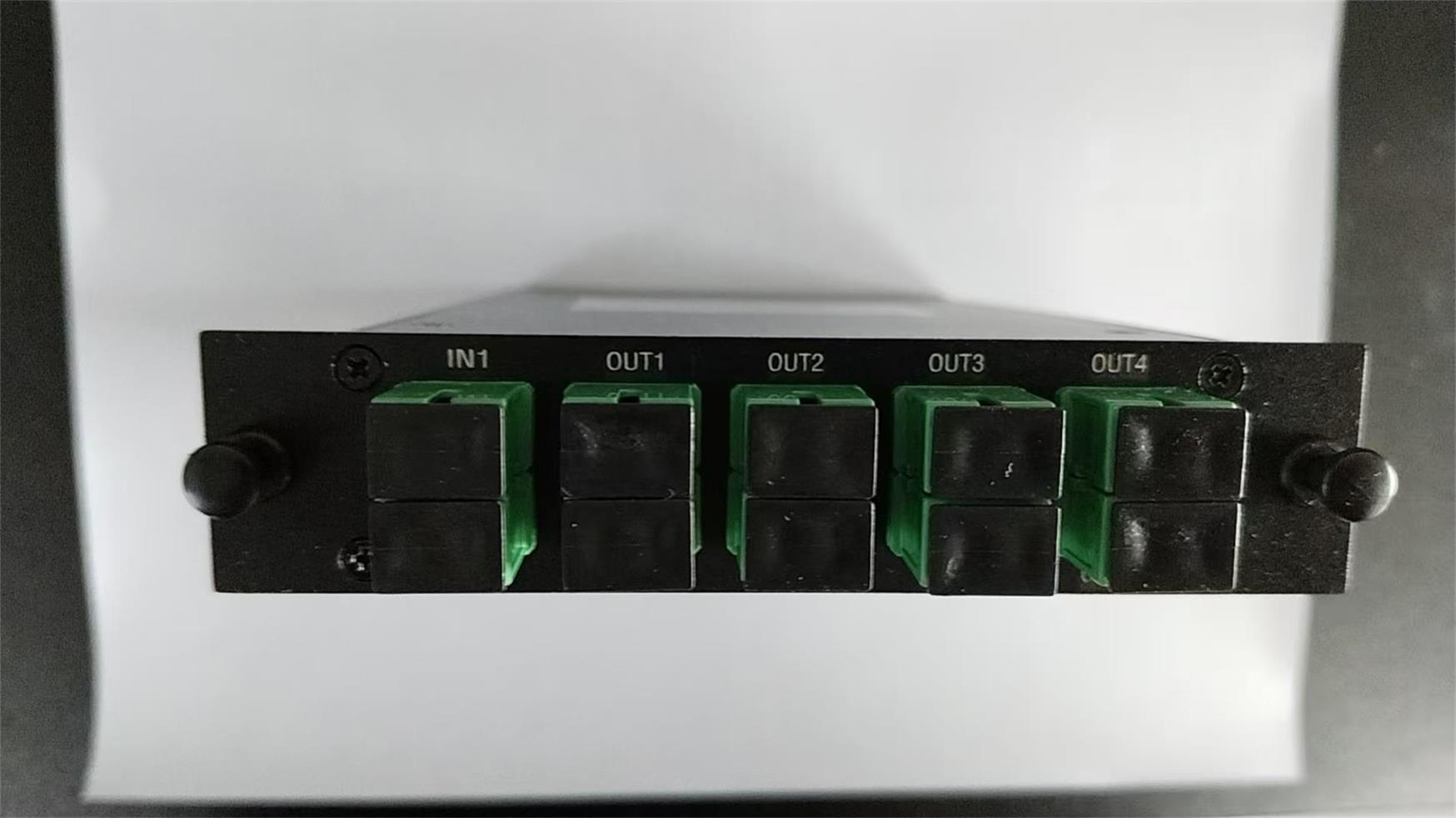

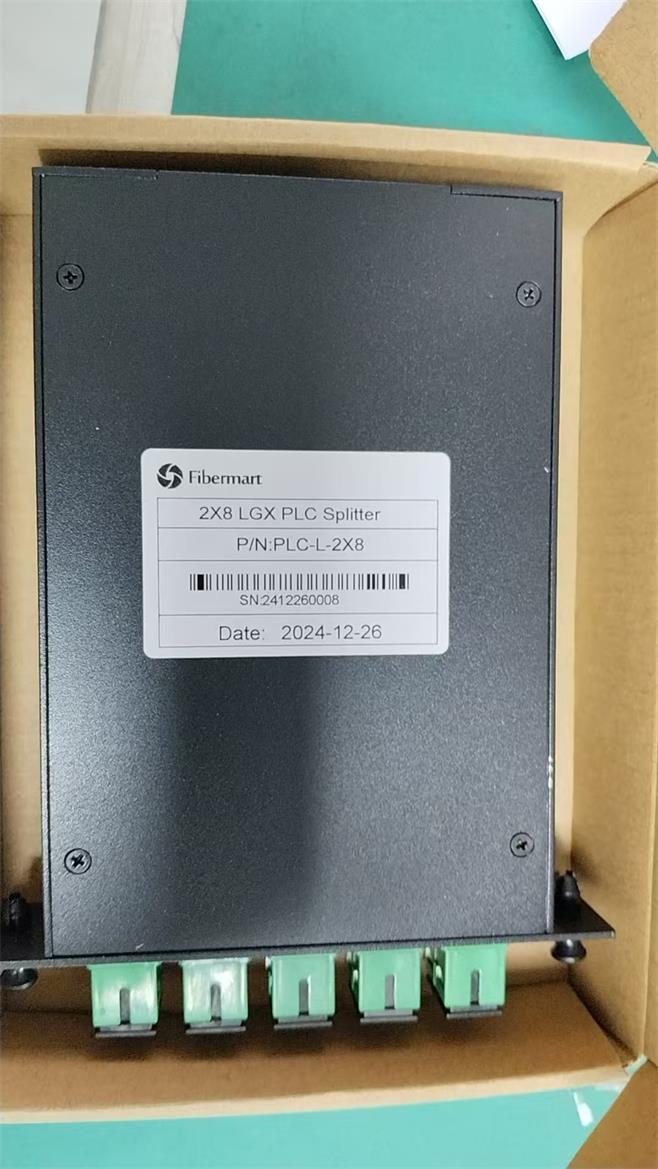

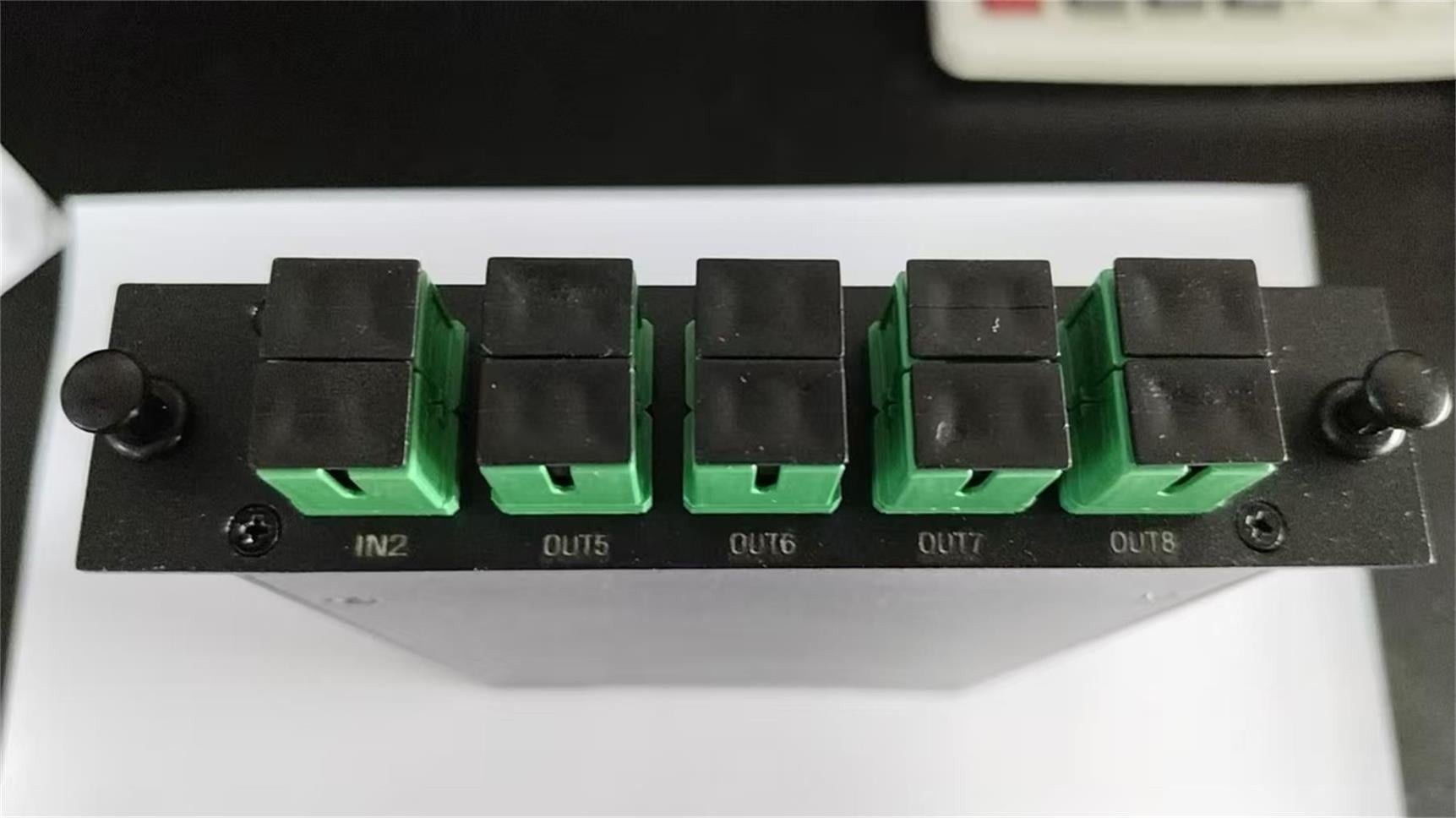

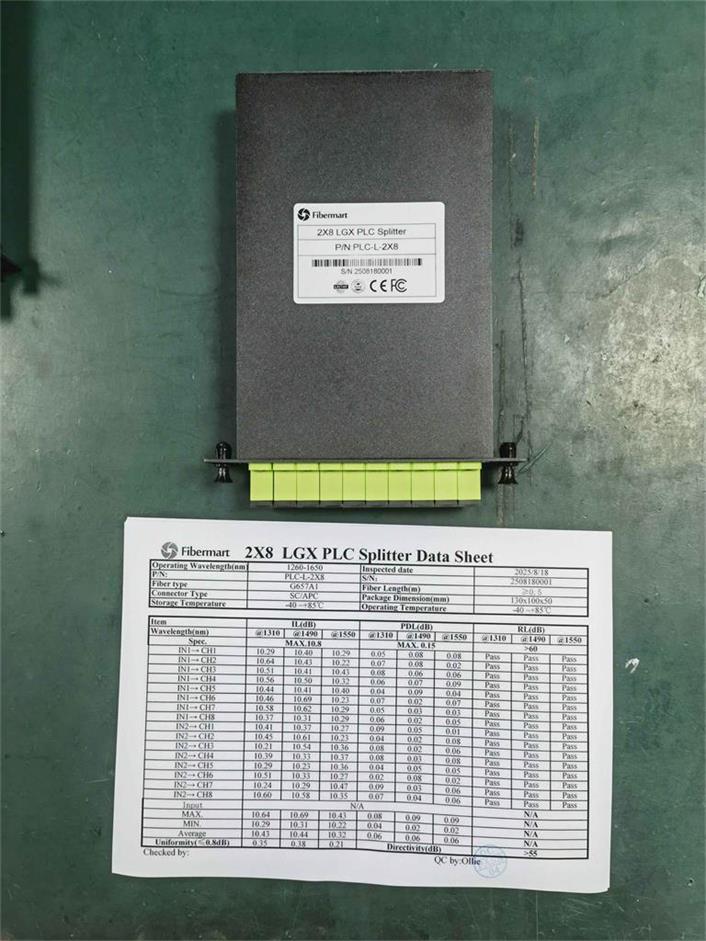

Sample Pictures










  • Our Factory




































Parameter Port Configuration
  2X2 2X4 2X8 2X16 2X32 2X64
Fiber Type G.657A
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 4.2 7.8 11.2 14.6 17.4 21.4
Max 4.6 8.2 11.6 15 17.9 21.9
Loss Uniformity (dB) Max 1 1.4 1.5 2 2.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.4 0.4 0.4 0.5
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB)   Max 0.8 0.8 0.8 0.8 0.8 1
Temperature Dependent Loss(-40~+85°C) Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85
