3 Ports S+C+L (1460-1625)nm Polarization Insensitive Optical Circulator

Product Item: #13775
P/N: FM-PICIR-3-SCL-X
Starting at: US$199.00

Please Choose:








Order Today, Ship before 06/12/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

Optical Circulator 3 Ports S+C+L (1460-1625)nm Polarization Insensitive with custom connectorized



FiberMART's Three-port 1x2 Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
All FiberMART's products are qualification tested.



Features & Applications

Low Back Reflection

High Extinction Ratio

Low Insertion Loss

High Return Loss

DWDM system

Add-Drop Multiplexing

Fiber Amplifier

Fiber Sensor

Chromatic Dispersion Compensation Devices

Fiber Bragg Grating



Application Diagram

Optical Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.



optical circulator diagram



Circulator can be used to send optical signals through a single fiber in two directions.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.



Optical Circulator working diagram



Dimension

optical circulator dimension

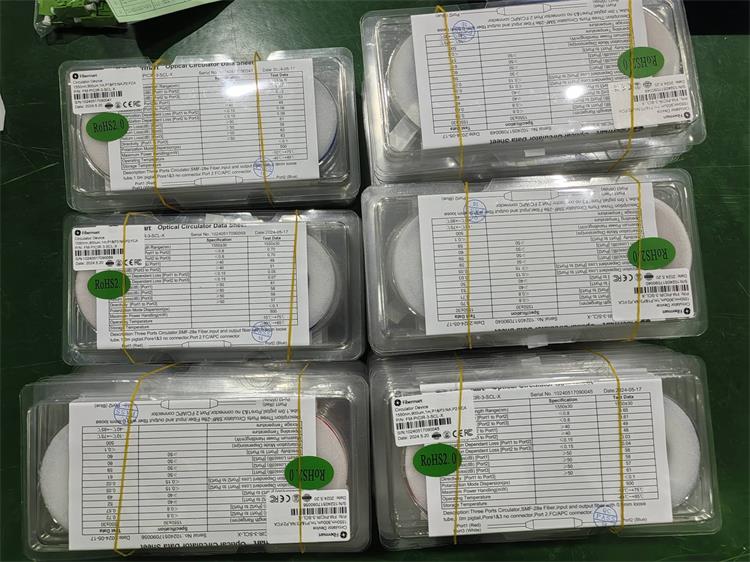

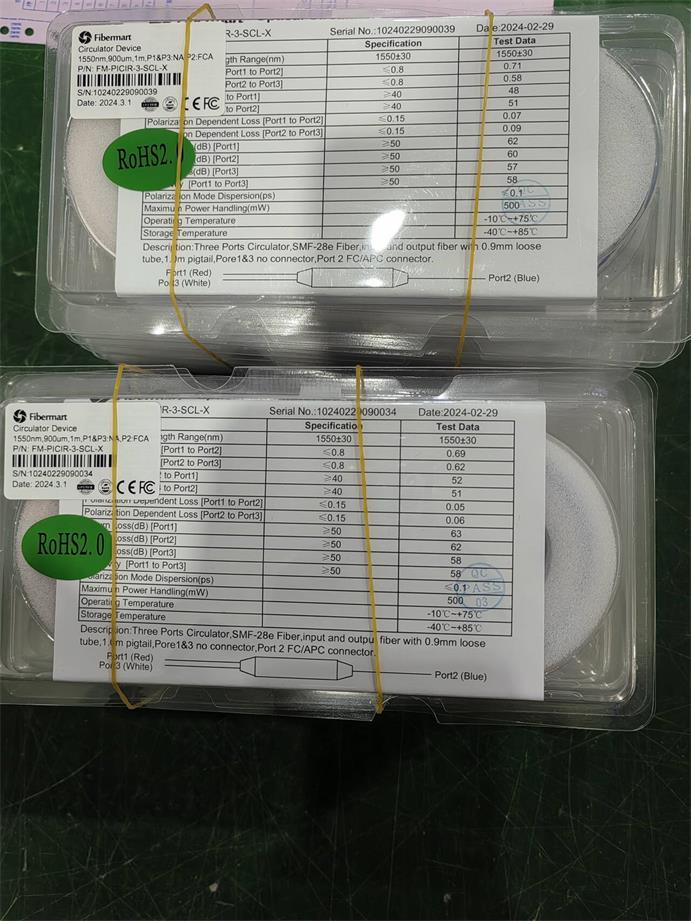

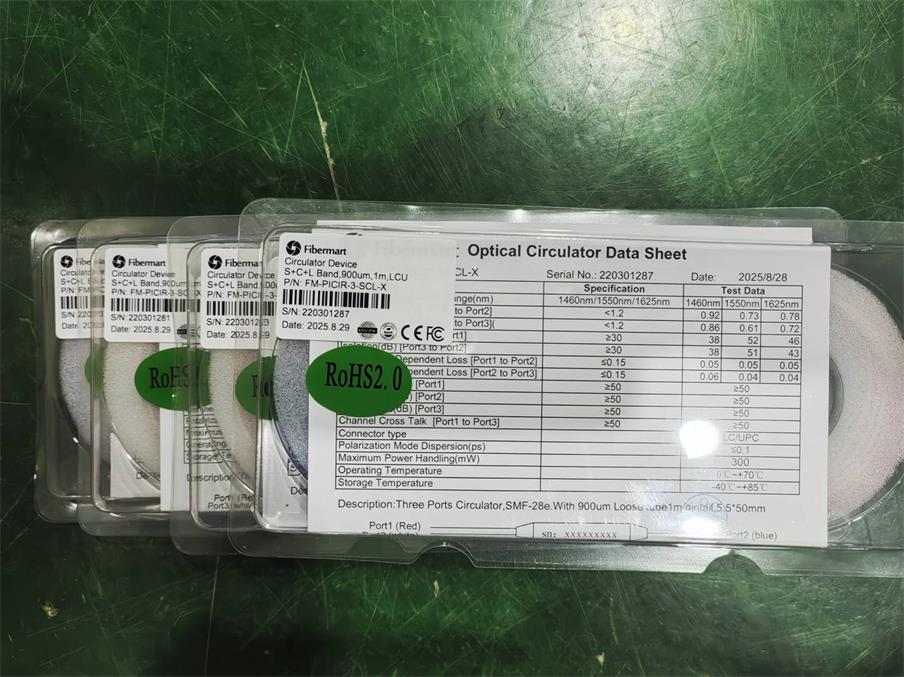

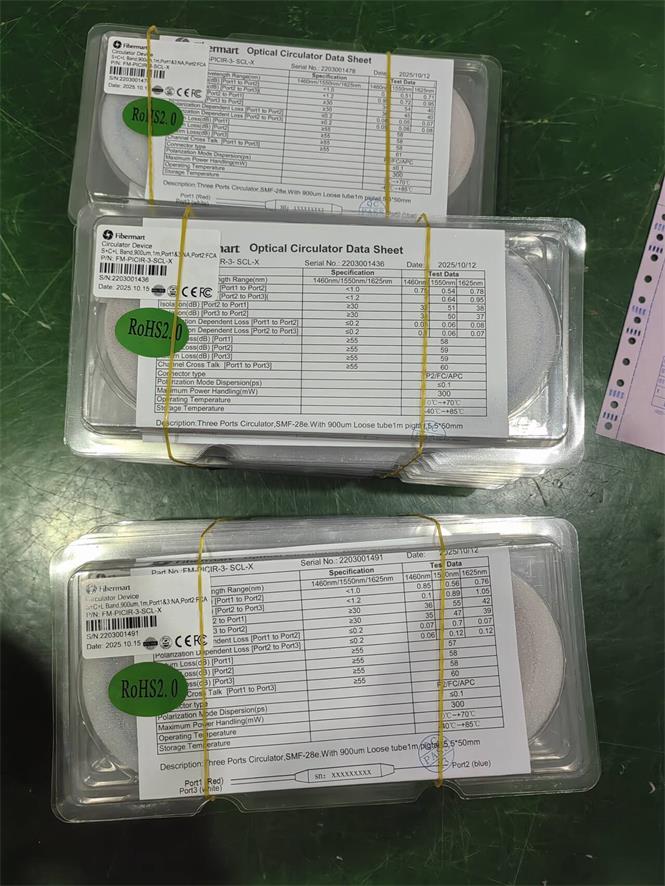

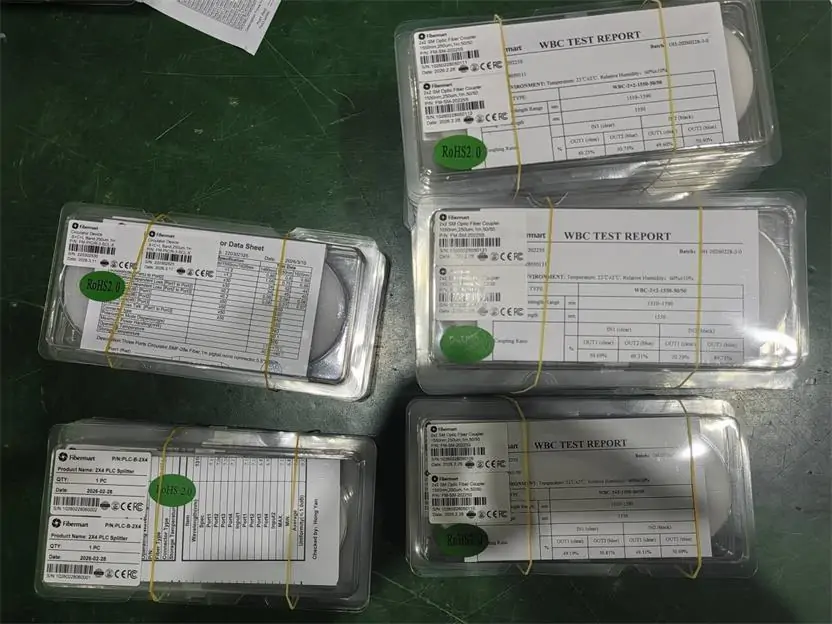

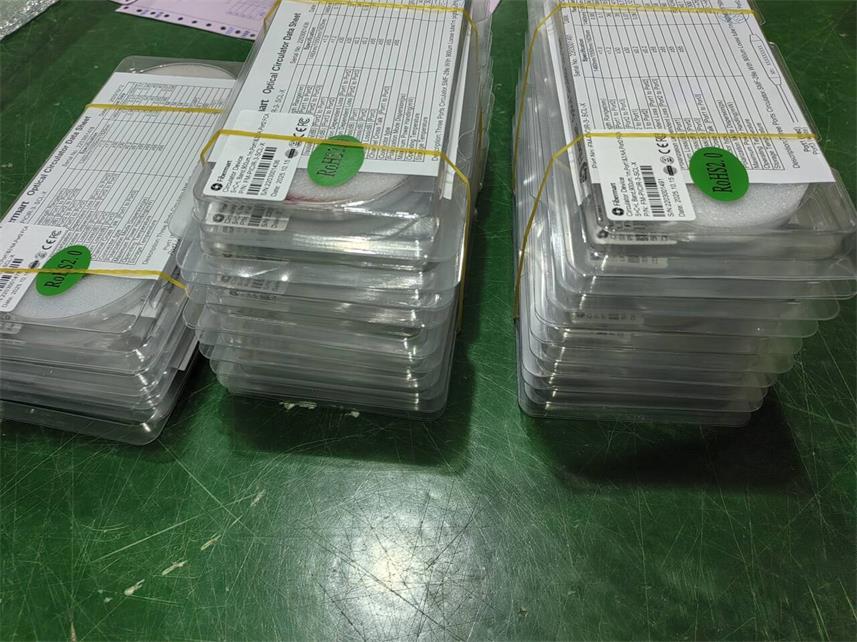

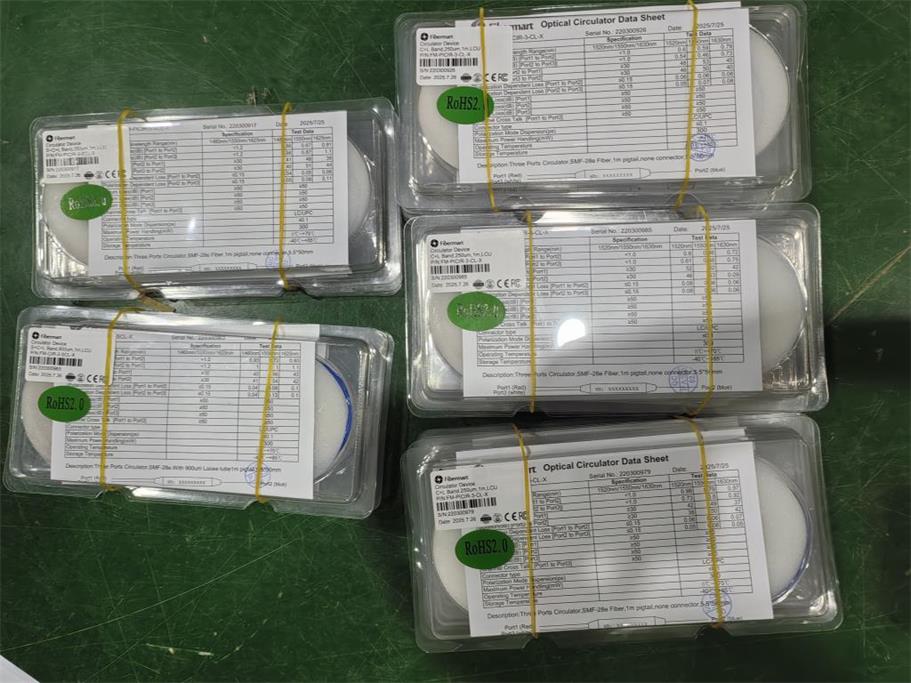

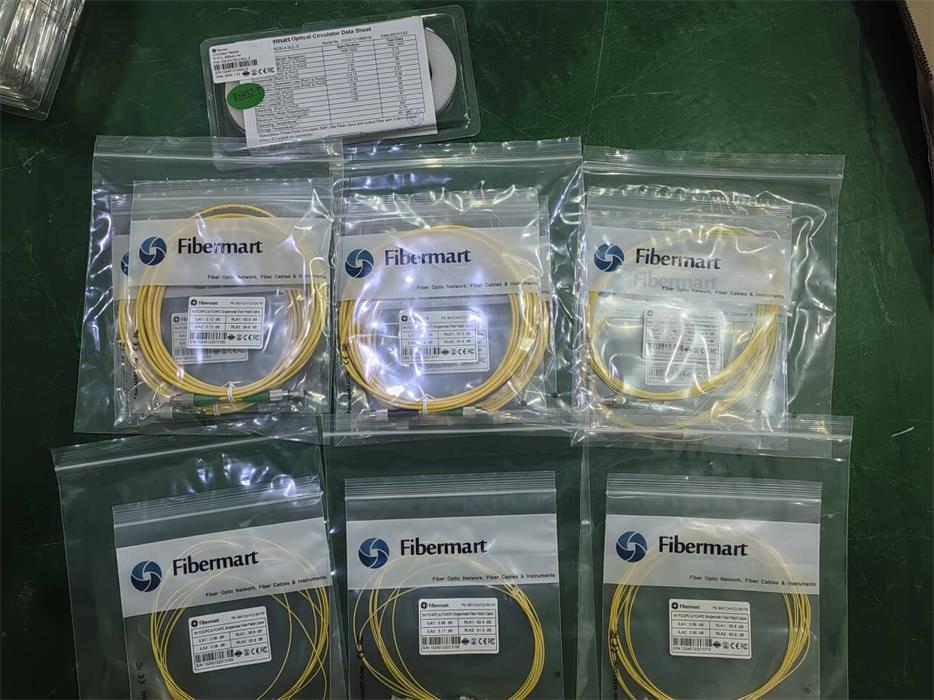

Sample Picture

circulator sample picture



Order Information

Wavelength Type Grade Pigtail Type Length Connector
1310nm 3 Ports P Grade 250um bare fiber 0.5m None
1480nm 4 Ports   900um loose tube 0.8m FC UPC/APC
1550nm     3mm loose tube 1.0m SC UPC/APC
1585nm     2mm loose tube 1.5m LC UPC/APC
1520~1620nm       2.0m ST UPC/APC



Note

1. Wavelength: FiberMART can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, Fiber-MART could also provide 0.5M,0.8M,1.5M, 2.0M ,etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc.
Please contact us by email to [email protected] or call at 205-282-9089 if you have any requirement for it.
