Polarization Insensitive Optical Circulator 3 Ports 1310/1550nm

Fiber-MART's Three-port Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
All Fiber-MART's products are qualification tested.

Characteristics & Applications

Low Back ReflectionHigh Extinction RatioLow Insertion LossHigh Return Loss

DWDM systemAdd-Drop MultiplexingFiber AmplifierFiber SensorChromatic Dispersion Compensation DevicesFiber Bragg Grating

Application Diagram

Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.

Circulator can be used to send optical signals through a single fiber in two directions.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.

Polarization-Maintaining-Optical-Circulator-Application-2

Dimension

3-ports-Polarization-Maintaining-Optical-Circulator

Sample Picture

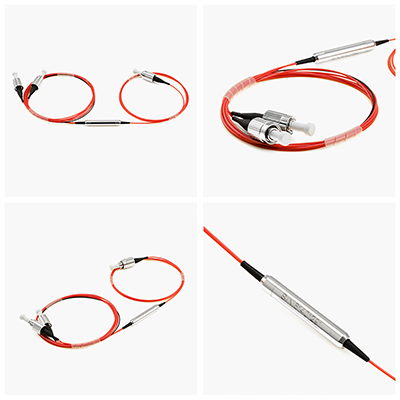

Polarization-Maintaining-Optical-Circulator

Order Information

Wavelength	Type	Grade	Pigtail Type	Length	Connector
1310nm	3 Ports	P Grade	250um bare fiber	0.5m	None
1480nm	4 Ports		900um loose tube	0.8m	FC UPC/APC
1550nm			3mm loose tube	1.0m	SC UPC/APC
1585nm			2mm loose tube	1.5m	LC UPC/APC
1520~1620nm				2.0m	ST UPC/APC

Note

1. Wavelength: Fiber-MART can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, Fiber-MART could also provide 0.5M,0.8M,1.5M, 2.0M ,etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc.
Please contact us by email to [email protected] or call at +1-86-2786-1199 if you have any requirement for it.

Fibermart Optical Circulator Datasheet
