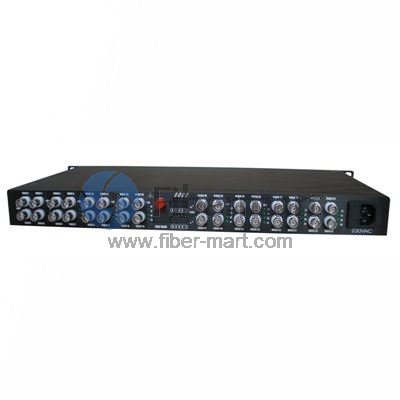

32 Channel Video to Fiber Optical Video Multiplexer Transmitter and Receiver SM 20km



Descriptions

  • Model: FM-32V-SM-20KM
  • Transmitter + Receiver
  • Fiber Mode: Single-Mode
  • Wavelengths: 1310nm/1550nm
  • Optical Power Budget: 12dB
  • Maximum Transmission Distance: 20km
  • Fiber Optic Video Transmitter & Receiver transmission 32-Channel digital composite video
  • Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
  • Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)



Key Features

  • Support Point-to-Point or Daisy-Chain connection
  • Uncompressed Digital Composite Video over one fiber
  • Compatible with all PAL, NTSC,SECAM Video Systems
  • Single-Mode Fiber Support for Distances up to 100 km
  • LED Status Provide Rapid Indication of Operating Parameters
  • No EMI or RFI and no ground loops
  • Support Coarse Wavelength Division Multiplexing (CWDM)
  • Stand alone
  • Produce according to customer's specifications,providing OEM



Specifications

Video Connectors
Number of Channels 32 channel Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Optical FC (Standard)
Input/output Compatibility PAL,NTSC,SECAM Standalone power Screw terminal block
Input/output voltage 1.0 Volt p-p Rack Power AC line card
Bandwidth 6.5MHZ
Bit Resolution 8-Bit Digital Transmission Electrical & Mechanical
Differential Gain < 1.5% Input Power Requirements DC 5V@2A
Differential Phase < 1.5° Power Adapter AC 100V~240V
Tilt < 5% Power Consumption < 3W
Signal-to-Noise Ratio(SNR) > 67 dB Shipping weight 7.3kg(include TX & RX)
Environmental
Operating Temperature -45 °C~+75 °C Storage Temperature -45°C~+85 °C
Relative Humidity 0%~95% (non-condensing) MTBF >100,000 hours
