3M VF45 to LC Duplex OM1 Multimode Fiber Optic Patch Cable

Press Esc key to close this popup
  • 3M VF45 to LC Duplex OM1 Multimode Fiber Optic Patch Cable

3M VF45 to LC Duplex OM1 Multimode Fiber Optic Patch Cable

Product Item: #14297
P/N: OM1-VF45-LC-3M-FM
Starting at: US$46.00

Please Choose:





Order Today, Ship before 10/21/2021, from U.S. or HK
  • Description
  • Support
  • FAQ
  • Tags:

3M VF45-LC 62.5/125um OM1 MM Duplex Patch Cables



Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.



This price on the website is for 3M length,please feel free to enquiry us for the other length standard



Characteristics

GGP FiberProven 3MTM TechnologyAllows Tighter Bend Radius (3/8 inch)Easier to Route and ManageExceptional Strength and DurabilityWithstands Abuse



Specifications

Item

Specifications

Attenuation:

<0.75 dB max

Reflection:

>20 dB max

Mating durability:

500 cycles, <0.75 dB max

Strength of coupling:

>33 N, <0.75 dB max

Plug cable retention:

Tensile load >66 N, Side Pull >6.6 N, <0.75 dB max

Plug flex:

100 Cycles,/90 degrees, 0.5 kg, <0.75 dB max

Plug twist:

10 Cycles,/2.5 revolutions, 15 N, <0.75 dB max

Cold:

-10C for 96 hours, <0.3 dB increase

Heat:

+60C for 14 days, <0.3 dB increase

Thermal cycling:

-10C to 60C, 5 Cycles, <0.3 dB increase

Vibration:

10 to 55 Hz, 30 min. each axis, <0.3 dB increase

Connector Style:

Crimp, Polish

Connector Type:

VF45-LC

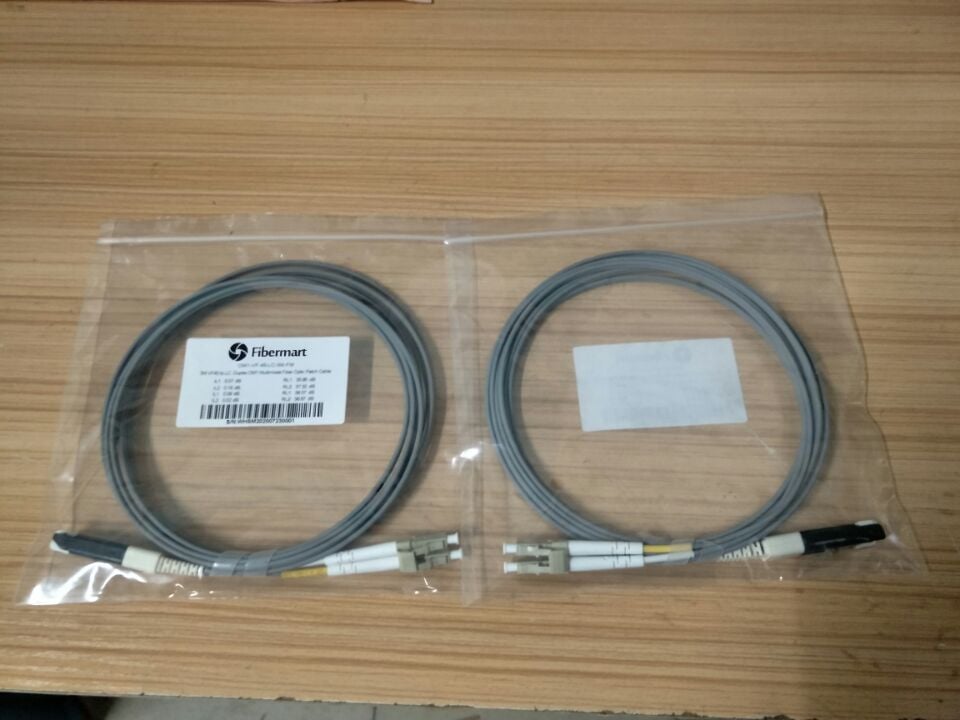

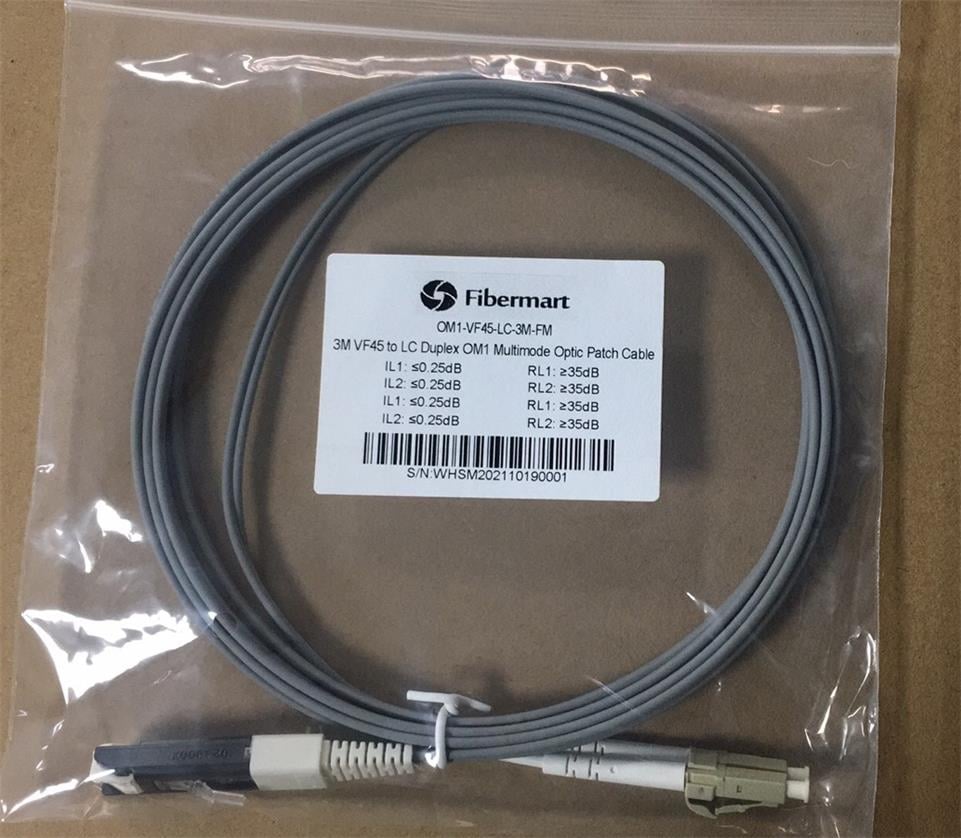

Sample Picture



Details




Order Information

Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom Cable Jacket Type: R-Riser; L-LSZH;CustomFiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);CustomSecond Connector End: V-VF-45 Plug;ST;SC;LC;CustomFirst Connector End is Always Volition VF-45 Plug
