3m VF 45 to LC Duplex OM3 Multimode Fiber Patch Cable
Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.
This price on the website is for 3M length,please feel free to enquiry us for the other length standard
Characteristics
GGP FiberProven 3MTM Technology
Allows Tighter Bend Radius (3/8 inch)
Easier to Route and Manage
Exceptional Strength and Durability
Withstands Abuse
Specifications
|
Item
|
Specifications
|
|
Attenuation:
|
<0.75 dB max
|
|
Reflection:
|
>20 dB max
|
|
Mating durability:
|
500 cycles, <0.75 dB max
|
|
Strength of coupling:
|
>33 N, <0.75 dB max
|
|
Plug cable retention:
|
Tensile load >66 N, Side Pull >6.6 N, <0.75 dB max
|
|
Plug flex:
|
100 Cycles,/90 degrees, 0.5 kg, <0.75 dB max
|
|
Plug twist:
|
10 Cycles,/2.5 revolutions, 15 N, <0.75 dB max
|
|
Cold:
|
-10C for 96 hours, <0.3 dB increase
|
|
Heat:
|
+60C for 14 days, <0.3 dB increase
|
|
Thermal cycling:
|
-10C to 60C, 5 Cycles, <0.3 dB increase
|
|
Vibration:
|
10 to 55 Hz, 30 min. each axis, <0.3 dB increase
|
|
Connector Style:
|
Crimp, Polish
|
|
Connector Type:
|
VF45-LC
|

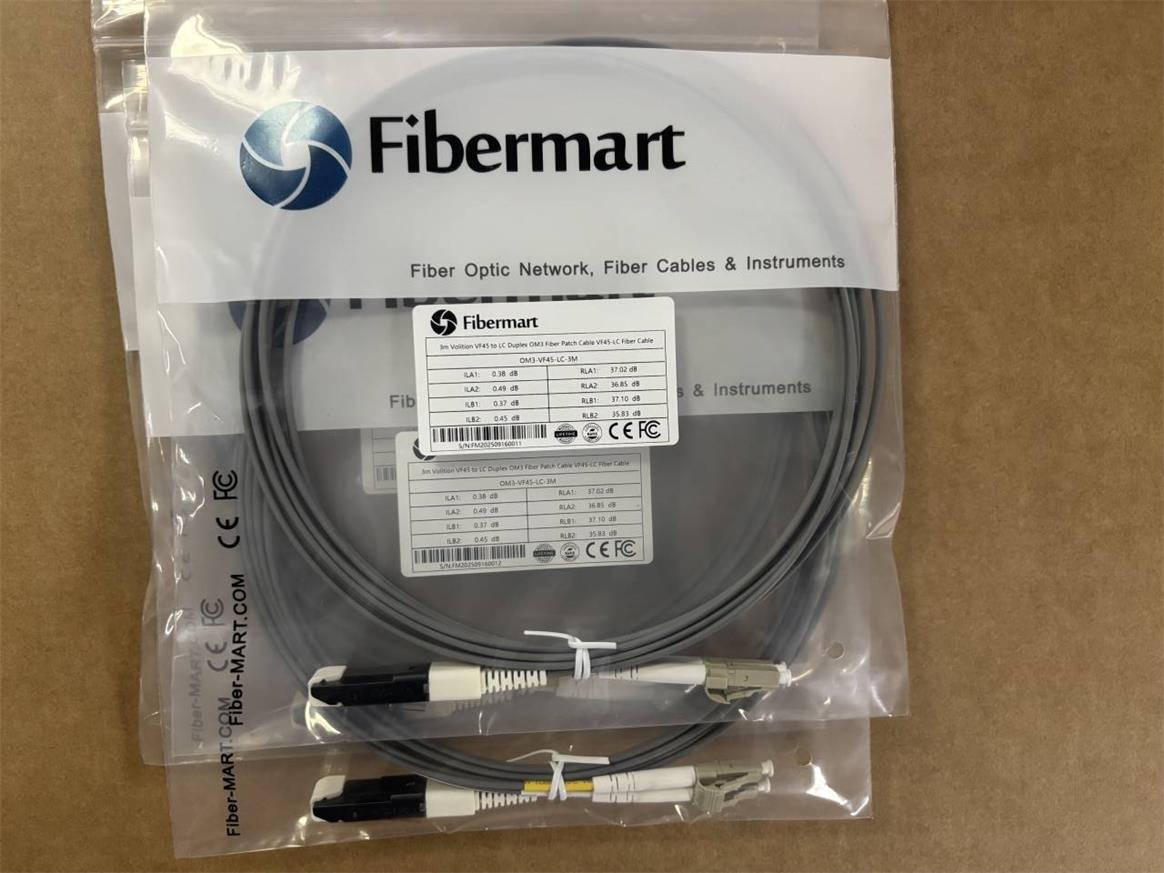

Sample Picture
Details
Order Information
Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom
Cable Jacket Type: R-Riser; L-LSZH;Custom
Fiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);Custom
Second Connector End: V-VF-45 Plug;ST;SC;LC;Custom
First Connector End is Always Volition VF-45 Plug
