3x3 FBT Singlemode single Window 900um Fiber Splitter

Press Esc key to close this popup
  • 3x3 FBT Singlemode single Window 900um Fiber Splitter

3x3 FBT Singlemode single Window 900um Fiber Splitter

Product Item: #3362
P/N: FM-SM-30390S
US$34.16

Please Choose:










Order Today, Ship before 03/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

FBT Fiber Splitter 3x3 Singlemode single Window 900um



As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.

Fiber-Mart Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24, 2x2, 2x4, 3x3 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
The 3x3 FBT Singlemode single Window 900um Loose Tube Fiber Splitter can splitter the optical signals into 3 parts, and the coupling ratio can be customized.



Key Features

  • Low insertion loss
  • Low polarization dependent loss
  • High Return Loss
  • Optional Split Ratio 20/80, 40/60...(50/50 as default.)
  • Compact for small application areas like in closure or splice trays
  • Wide Operating Temperature and Wavelength
  • Excellent Environmental & Mechanical Stability
  • Qualified Under Telcordia GR-1221 and GR-1209
  • Steel tube-compact size



Applications

  • FTTX (FTTP, FTTH, FTTN, FTTC)
  • Passive Optical Networks (PON)
  • Local Area Networks (LAN)
  • CATV Systems
  • Amplifying, Monitoring System
  • Test Equipments



Order Information

For FBT Splitters, Fiber-Mart provides a whole series of this kind customized for specific applications:
a. Different coupling ratio can be customized according to your requirement.
b. 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24, 2x2, 2x4, 3x3 configurations of splitters are available.
d. 250um bare fiber, 0.9 loose tube, 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default
Welcome to contact us for customized solutions.



Mechanical Drawing

KIND NOTE: This is drawing if for 1 x N loose tube FBT. Only for your reference.

Fiber-Mart offers cost-effective standards-based 3x3 FBT Singlemode single Window 900um Loose Tube Fiber Splitter. As a 3rd party OEM manufacturer, our 3x3 FBT Singlemode single Window 900um Loose Tube Fiber Splitter is delivered to worldwide from our factory directly, and they are all based on thin film filter technology and metal bonding micro optics packaging. What's more, our 3x3 FBT Singlemode single Window 900um Loose Tube Fiber Splitter are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Please contact us at [email protected] if you want to know more details..

OperatingWavelength(nm) 1310nmor1490nmor1550nm
Bandwidth(nm) ±20
ExcessLoss(dB) ≤0.10
Max.InsertionLoss(dB) ≤3.40
PDL(dB) ≤0.10
ReturnLoss(dB) ≥50
Directivity(dB) ≥55
Operatingtemperature(℃) -25to+70





Fibermart FBT Fiber Coupler Datasheet







Datasheet to Download

Customer Reviews

Displaying 1 to 4 (of 4 reviews)

by Jason
Date Added: 08/21/2023

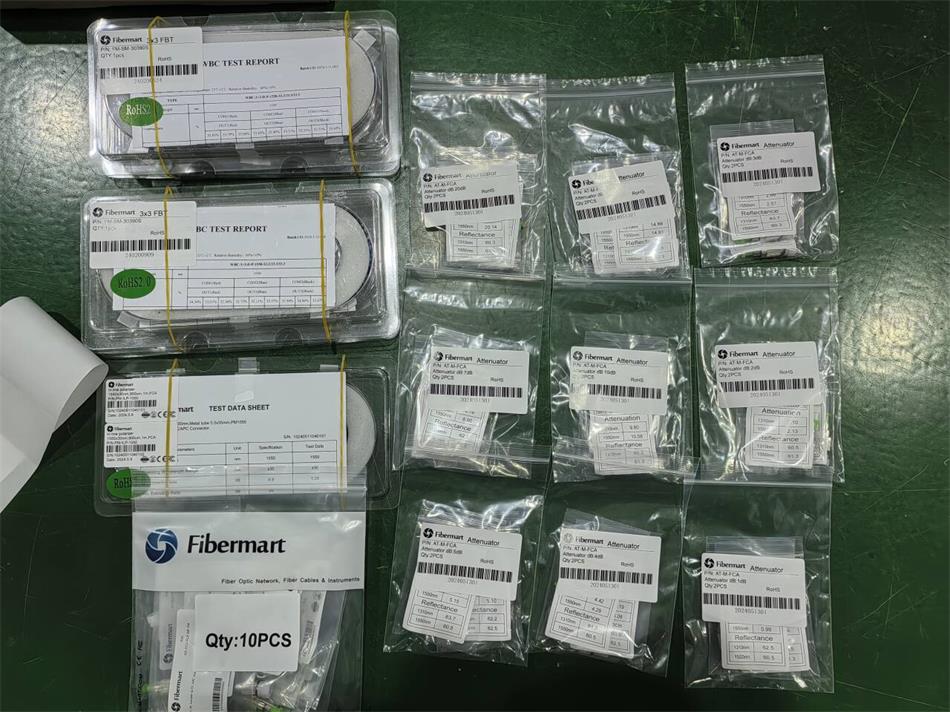

Well tested and working just fine with our need, the 3x3 fbt splitter was nice!

Rating: 5 of 5 Stars [5 of 5 Stars]
3x3 FBT Singlemode single Window 900um Fiber Splitter 3x3 FBT Singlemode single Window 900um Fiber Splitter

by Adele-Youthton
Date Added: 07/04/2022

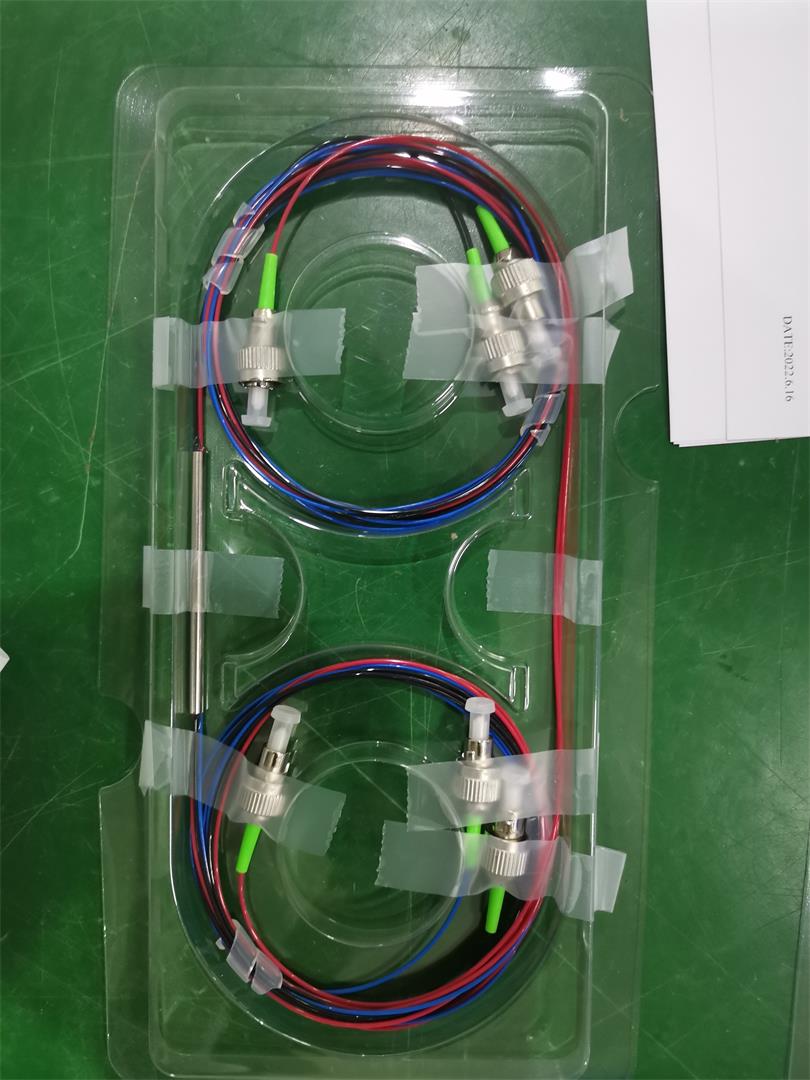

High quality 3x3 fbt couplers we got, nice loss and connections, we custom different split ration, it works great!

Rating: 5 of 5 Stars [5 of 5 Stars]
3x3 FBT Singlemode single Window 900um Fiber Splitter 3x3 FBT Singlemode single Window 900um Fiber Splitter

by Nicolars
Date Added: 06/22/2022
Well received with no problem, low loss and everything works great as we requested!

Rating: 5 of 5 Stars [5 of 5 Stars]
3x3 FBT Singlemode single Window 900um Fiber Splitter 3x3 FBT Singlemode single Window 900um Fiber Splitter 3x3 FBT Singlemode single Window 900um Fiber Splitter

by Camille
Date Added: 06/14/2018
Nice Product ,excellent!

Rating: 4 of 5 Stars [4 of 5 Stars]



Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product.
