8 Fibers OM4 Multimode Multi-Core Riser Distribution Indoor Cable-GJFJV Tight Buffered
|
 |
||
Features
|
Application
|

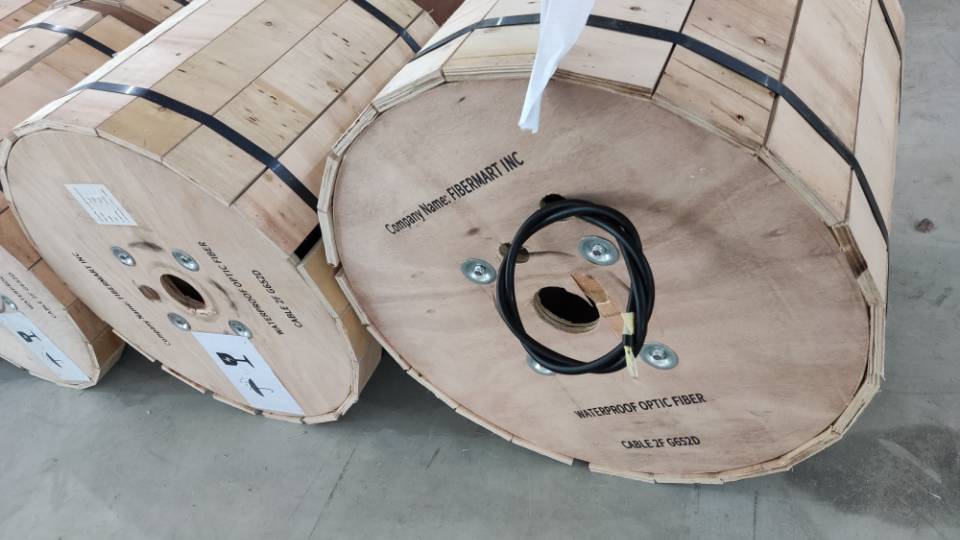

Package
 |
 |
| Package 1 | Package 2 |
|
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |

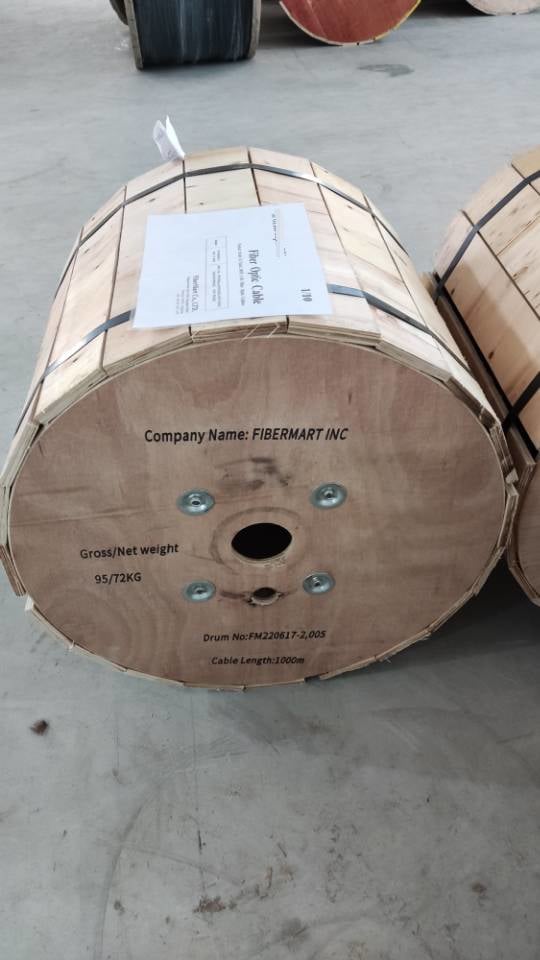

Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count |
Out Sheath Diameter |
Weight |
Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 4 | 4 | 25 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 6 | 4 | 26 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 8 | 5 | 32 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 10 | 5.5 | 35 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 12 | 6 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 24 | 8 | 60 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
|
Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
Datasheet to Download
