CATV DFB butterfly laser diodes 30MW 1310nm

DFB butterfly laser module is specialized for adopting the high-quality MQW-DFB chip to meet the requirement of a high-speed, specific-wavelength light transmission system. It can be used for continuous-wave and pulsed applications such as sensing, frequency doubling, light detection and ranging, and injection seeding for fiber amplifiers or lasers.

Fiber-Mart CATV 30MW 1310nm DFB butterfly laser module produces laser beams with a particular wavelength. It is able to deliver output power of 30MW. The 14-pin butterfly laser module will be supplied with a built-in optical isolator, a monitor photodiode, a thermoelectric cooler, and FC/APC connector and is pigtailed with a polarization-maintaining fiber. The built-in thermoelectric cooler enables the laser device to run stably under various environmental conditions. This series of product has found wide applications in the LAN, WAN, MAN, CATV transmission system, and long distance DMDW transmission system. It also can be used in the stabilized light source, modulated light source, or other communication equipment such as the CATV transmitter.

Features

High linearity Direct Modulation DFB laser
Built-in Isolator, TEC, Thermistor and Monitor PD
Hermetically sealed 14 Pin Butterfly Package Module
Optimized for 2.5 Gb/s Modulation Rates
Emission wavelength 1310 nm
Output power 30MW
Single mode FC/APC connector or customized
Singlemode fiber pigtail
PAL and NTSC system loading available
RoHs compliant

Application

Long reach analog transmission systems
CATV forward-path
1310nm broadcast and point-to-point applications

Pin Description:

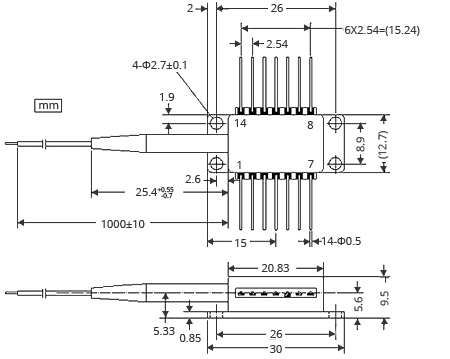

Package Outline:

Specifications(optical & electrical Characteristics)

Parameter	Symbol	Test Conditions	Min.	Typ.	Max.	Unit
Operating Voltage	Vop	CW	-	-	1.8	V
Threshold Current	Ith	CW	-	10	20	mA
Thermistor	Rth	25℃	9.5	10	10.5	K
Thermoelectric cooler current	Icooler	CW,-5℃~60℃	-	-	1000	mA
Thermoelectric cooler voltage	Vcooler	CW,-5℃~60℃	-	-	1.5	V
Monitor Current	Im	CW,VRD=5V	9	-	150	uA/mW
Monitor Dark Current	Id	CW,VRD=5V	-	-	500	nA
Central Wavelength	λC	CW	-	1310	1330	nm
Output power	Po	CW	1290	-	30	mW
Bias Current	IB	-	4	-	70	mA
Side mode suppression ratio	SMSR	CW,Iop=10mW	-	50	-	dB
Slope Efficiency	Se	CW	30	0.3		mW/mA
Spectral Width	Δλ	CW,-20dB		-	0.3	nm
Tracking Error	ΔPf	CW,-5℃~60℃ Im=Im@25℃	-	-	0.5	dB
Monitor PD capacitance	C	VRD=5V,F=1MHz	-	-	0.5	pF
Connector Repeatability	-	CW	-	-	0.3	dB
Composite Second Order	CSO	If=IOP, Optical Modulation,Index=3. 2%/channel(minimu m),CNR,CSO,CTB tested valuse at worst case over all test frequencies. NTSC 120ch.,10km singlemode fiber,-1dBm, received Power, Receiver responsivity=0.85A/ W	-	-60	-57	dBC
Composite Triple Beat	CTB	-	-67	-65	dBC
Carrier Noise Ratio	CNR	51	-	-	dB
Frequency range	F		-	-	870	MHZ
Tracking Error	Er	TC =-20~65℃, APC,ATC	-	-	1	dB
