Custom Flame-retardant Mining Fiber Optic Cable-MGTSV

Product Item: #6884

(0 Customer Reviews)

P/N: sku6884

Please Choose:

Package Length:

Order Today, Ship before 06/10/2026, from U.S. or Hong Kong

Description
Datasheet
Tags
FAQ

MFG PART#:

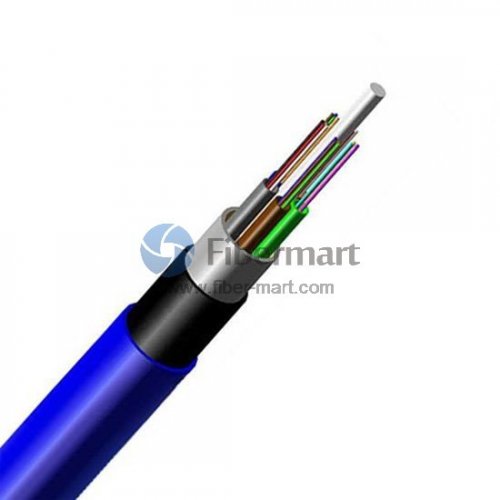

Single-Armored Double-Jacket Flame-retardant Mining Fiber Optic Cable-MGTSV

MGTSV is suitable for coal, gold, iron ore and other mines. It has the flame retardant, rodent resistance property, so it is a good choice for mines. Especially for the accident-prone land mines, to ensure smooth communication, reduce losses when the accident happens.

The steel armor helps to protect the cable from rat bite, ensures bullet proof ability. Double jackets structure have nice properties of moisture resistance and crush resistance. Besides, the out sheath is flame retardant. Loose tube material itself has good hydrolysis resistance. Waterproof performance ensures the safety of underground mine.

Cable Structure


Features Good flame retardant performance. High strength loose tube that is hydrolysis resistant. Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite. Loose tube wrapped by non-weaven tape has the water blocking ability. Special tube filling compound ensure a critical protection of fiber. Blue PVC jacket: Flame retardant, the blue color is easy to identify. Crush resistance and flexibility.		Application Professional usage for the coal industry Tunnel shaft Mine

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Cable Count	Cable Diameter	Cable Net Weight	Minimum allowable Tensile Strength (N)	minimum allowable Crush Load (N/100mm)	Minimum Bending Radius (mm)	Storage Temperature
	（mm)	（Kg/km)	Short term	Long term	short term	long term	Dynamic	Static	（℃）
2-30	12.7	180	600	1500	300	1000	20D	10D	-40 - +70
32-66	14.0	240	600	1500	300	1000	20D	10D	-40 - +70
62-72	15.1	290	600	1500	300	1000	20D	10D	-40 - +70
74-144	16.0	360	600	1500	300	1000	20D	10D	-40 - +70

	G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
@1300nm		≤1.0	≤1.0
@1310nm	≤0.36
@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
@1300nm		≥1200	≥600
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)	≤1260
