Custom Ribbon Fiber Optic Cable-GYDTA

Product Item: #6901
(0 Customer Reviews)
P/N: sku6901

Please Choose:





Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ
MFG PART#:

Single Armor Single Jacket Ribbon Fiber Optic Cable-GYDTA

GYDTA is suitable for aerial and duct application. Because of the good moisture resistance, it can also be used in cable trench. It has the loose tube structure with ribbon cable, which is surrounded by the APL tape. GYDTA is a good option for Interoffice communication, outdoor access network.

GYDTA uses steel as the central strength member ensures good tensile resistance, and improves the bending performance. It has excellent moisture resistance ability: the loose tube is filled with grease to protect the fiber, APL tape prevent the water ingress, then the cable is completed with PE out sheath.

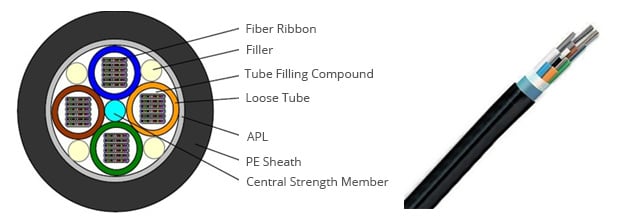

Cable Structure



Features
  • Good mechanical and temperature performance.
  • Light weight, small size, good bending performance, nice moisture resistance.
  • Loose rube structure wrapped by APL tape enhances water-blocking & moisture-proof.
  • Friction reduction because the tube filling compound ensures a critical protection for the ribbon fiber.
  • Metal strength member and APL tape ensures good tensile strength and bending performance.
  • PE jacket: low friction installation, excellent protection from environmental hazards, anti-ultraviolet.

    		•  Application
  • Access Network, Local Trunk Line
  • Long-distance communication, interoffice communication
  • Aerial and duct application
  • Cable trench

    • Package

    Package 1 Package 2
    Package 1: usually for indoor cable, light weight cables.
    Package 2: usually for outdoor cable, heavy weight cables
    Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

    Mark


    Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
    1. Company Name
    2. Cross /Net weight
    3. Drum No: XX
    4. Cable Length : XX

    Cable production throughout the chart

    Fiber-Mart

    Cable CountCable
    Diameter    		Cable Net
    Weight    		minimum Bending Radius
    (mm)    		minimum Tensile Strength
    （N)    		minimum Crush Pressure
    (N/100mm)    		Storage
    Temperature
    （mm)（Kg/km)Static StateDynamic Stateshort termlong termshort termlong term（℃）
    6-9615.923616032019006001000300-40 - +60
    14417.127118036022006001000300-40 - +60
    21619.233020040026006001000300-40 - +60
    28822.241823046030006001000300-40 - +60
    38422.843623046030006001000300-40 - +60


    G.65250/125µm62.5/125µm
    Attenuation
    (+20°C) (dB/km)    		@850nm≤3.0≤3.0
    @1300nm≤1.0≤1.0
    @1310nm≤0.36
    @1550nm≤0.22
    Bandwidth (Class A) (MHz·km)@850nm≥600≥200
    @1300nm≥1200≥600
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelength λcc (nm)≤1260



    Datasheet to Download
