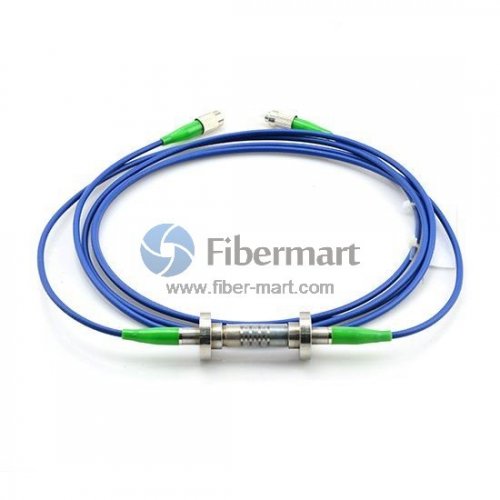

Embedded FBG Strain Gauge Sensor
The strain sensors make use of the sensitivity of fiber grating to measure the strain. The FBG is fixed inside a stainless steel housing between two anchoring points. The housing consists of a sliding mechanism that allows both ends to move freely relative to each other.
Key Features
Excellent repeatability and reliability Excellent waterproof performanceTry harsh environmentsApplication
The strain sensors used in civil engineering construc-tion monitoring and long-term health monitoring, such as: bridges, interchanges, high-rise buildings, large steel construction.Specification
Parameter | Unit | Minimum value | Typical value | Maximum value | Remark |
Center Wavelength | nm | 1510 | / | 1590 | Customized |
-3dB bandwidth | nm | / | 0.25 | / | Customized |
Accuracy | | | 1‰ | | |
Strain Measurement Range | με | -1500 | / | 1500 | |
Temperature Range | ℃ | -40 | / | 80 | |
Insertion loss(IL) | dB | / | 0.5* | / | |
Dimension | mm | φ12 * 102 | weldable FBG |
78(L) * 14(W) * 7(H) | Surface Mounted FBG Strain Gauge |
φ33 * 110 | Embedded FBG Strain Gauge |
Pigtail Type | mm | Amoured Or Jumper Cable |
Connector | | FC/APC |
Option: with temperature compensation |
(i.e. built-in 2 fbg inside, one for strain measurement, another for temperature compensation) |
