1x2 Blockless Fiber PLC Splitter

PLC Splitter 1x2 Blockless Type Fiber Optic Splitter, 1x2 PLC Splitter, 1x2 Fiber Splitter

1x2 PLC Splitter,G.657A Fiber 0.9mm for input and output, FC, SC, LC or ST connectors for choice.
1x2 PLC Splitter divides or combines a signal inputs to 2 outputs.

Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiber-Mart PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
Fiber-Mart provides a various of 1xN and 2xN PLC blockless splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 blockless fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 blockless fiber type PLC splitters.

Blockless Type PLC Splitter Features

• Good uniformity and low insertion loss
• Low Polarization Dependent Loss
• Excellent Mechanical
• Stability Telecordia GR-1221 and GR-1209
• Components through TLC-Certified,Conform to YD1117-2001
• Operating environment: -40ºC to +85ºC
• High Polarization Extinction Ratio & Excellent Uniformity
• Fiber input: 0.9mm
• Fiber output: 0.9 mm
• G.657A Fiber

Blockless Type PLC Splitter Applications

• Fiber to the point (FTTX)
• Fiber to the home (FTTH)
• Passive optical networks(PON, GEPON)
• Local area networks (LAN)
• Cable television (CATV)
• Test equipment

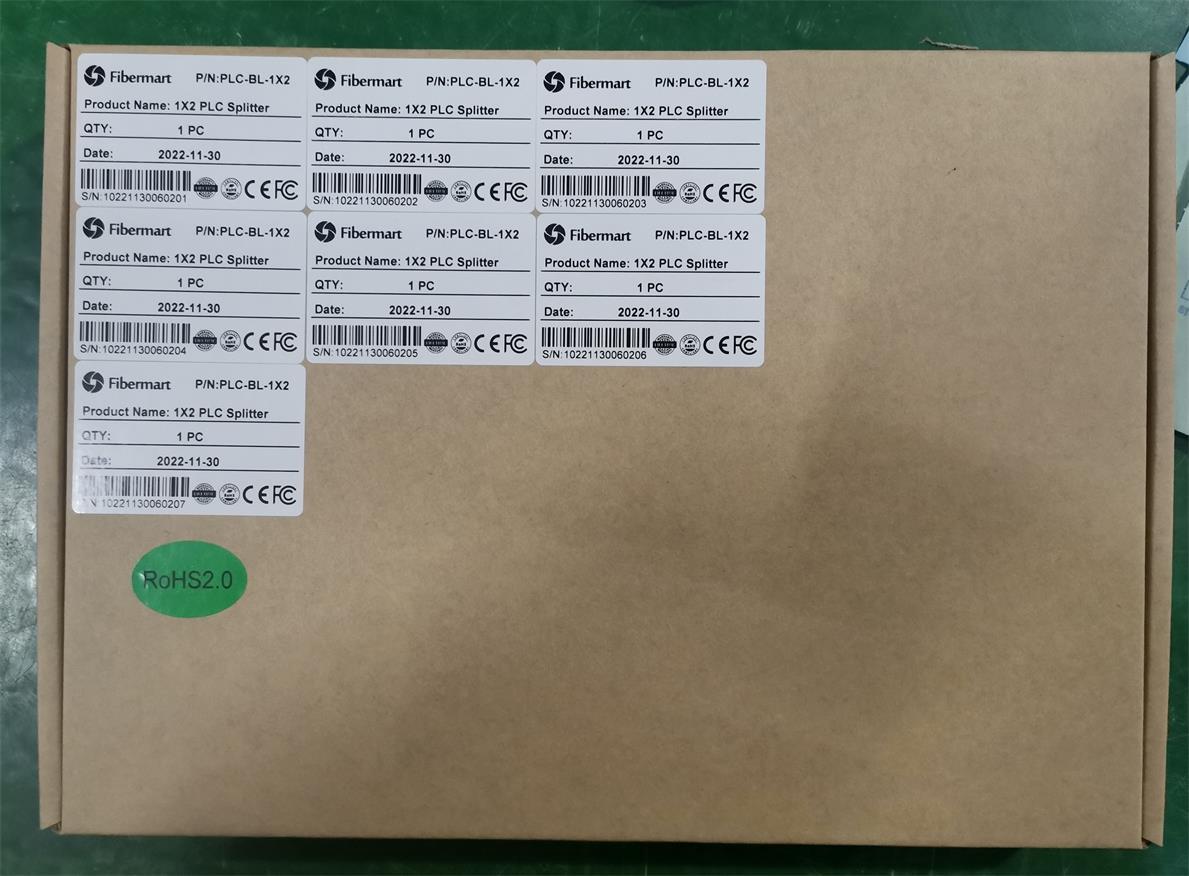

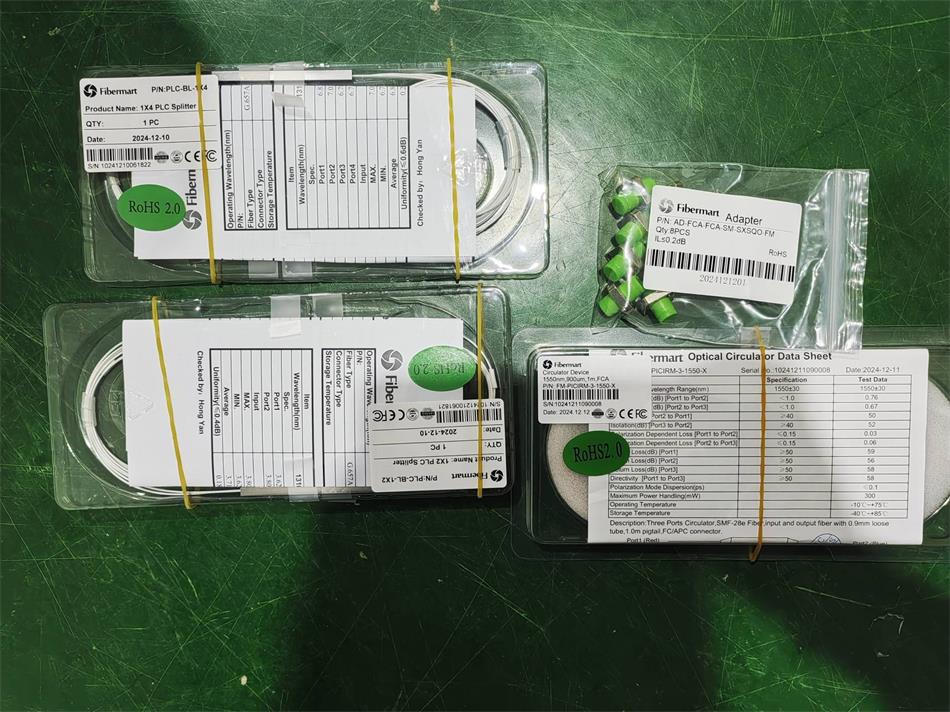

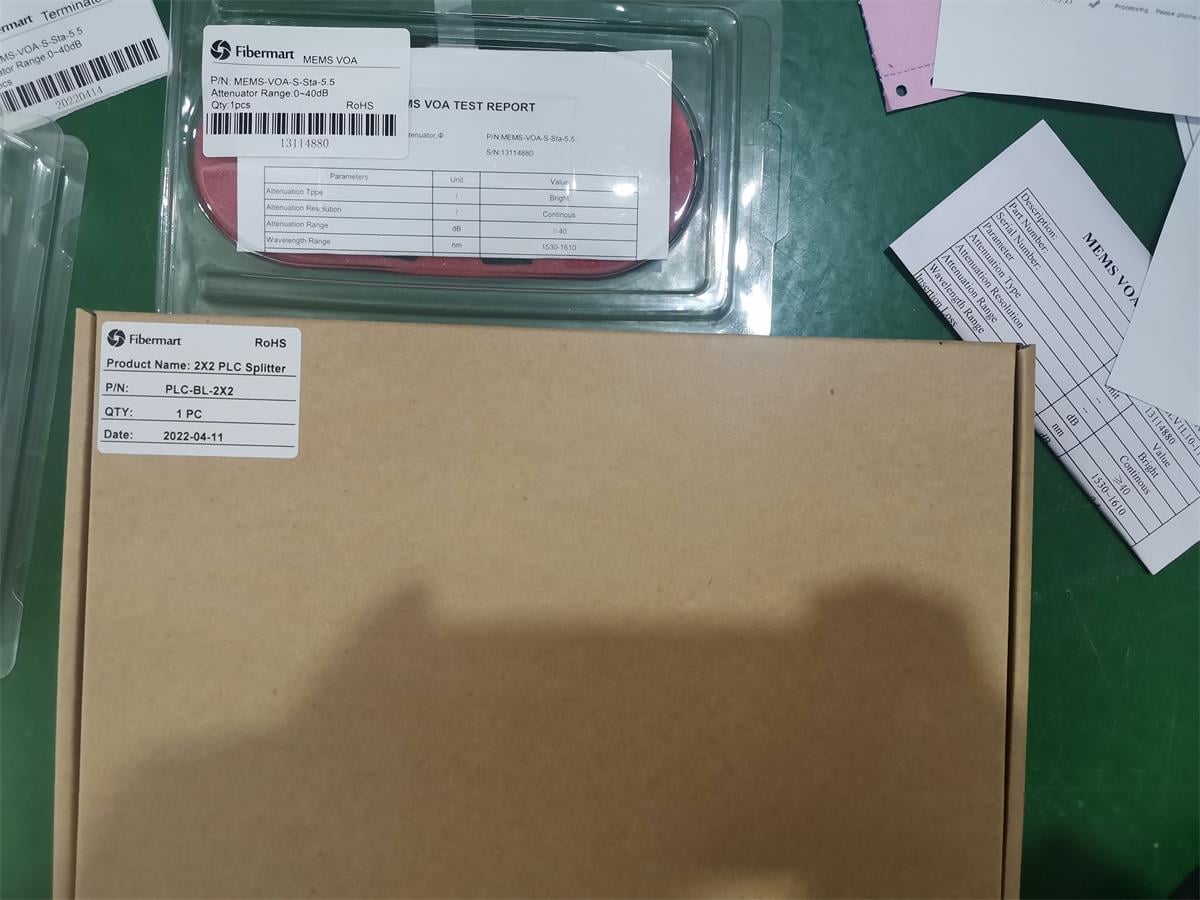

Packaging

(Shipping fee is calculated by volume weight)A.Transparent plastic box(As default)
B.Standalone carton box
C.Economical packing -- One carton box contains several items

A	B	C

Mechanical Drawing

The blockless PLC splitter can realize the effect of 0.9mm loose tube output without using the fanout. It is small volume and easy to use.

PLC Splitter V.S FBT Coupler, the advantages of PLC Splitter are as follows

• The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
• High spectral uniformity, can splitter the signals on average
• Compact structure, small volume
• The cost advantage is very obvious on many splitter channels

Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9mm for input and output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.

• Fibermart Factory

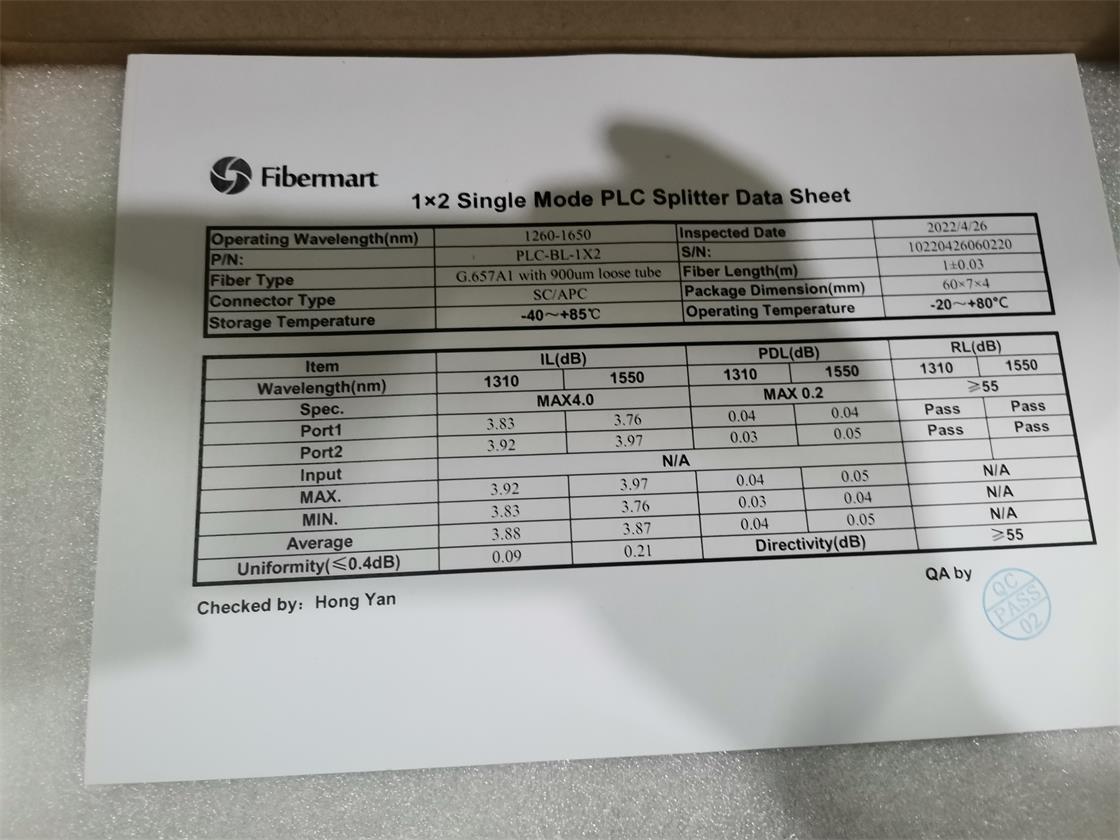

Specifications

Note:
·Above is the parameters for Blockless Fiber PLC Splitter with connectors.
·Without connectors, the insertion loss will be 0.2dB lower.
