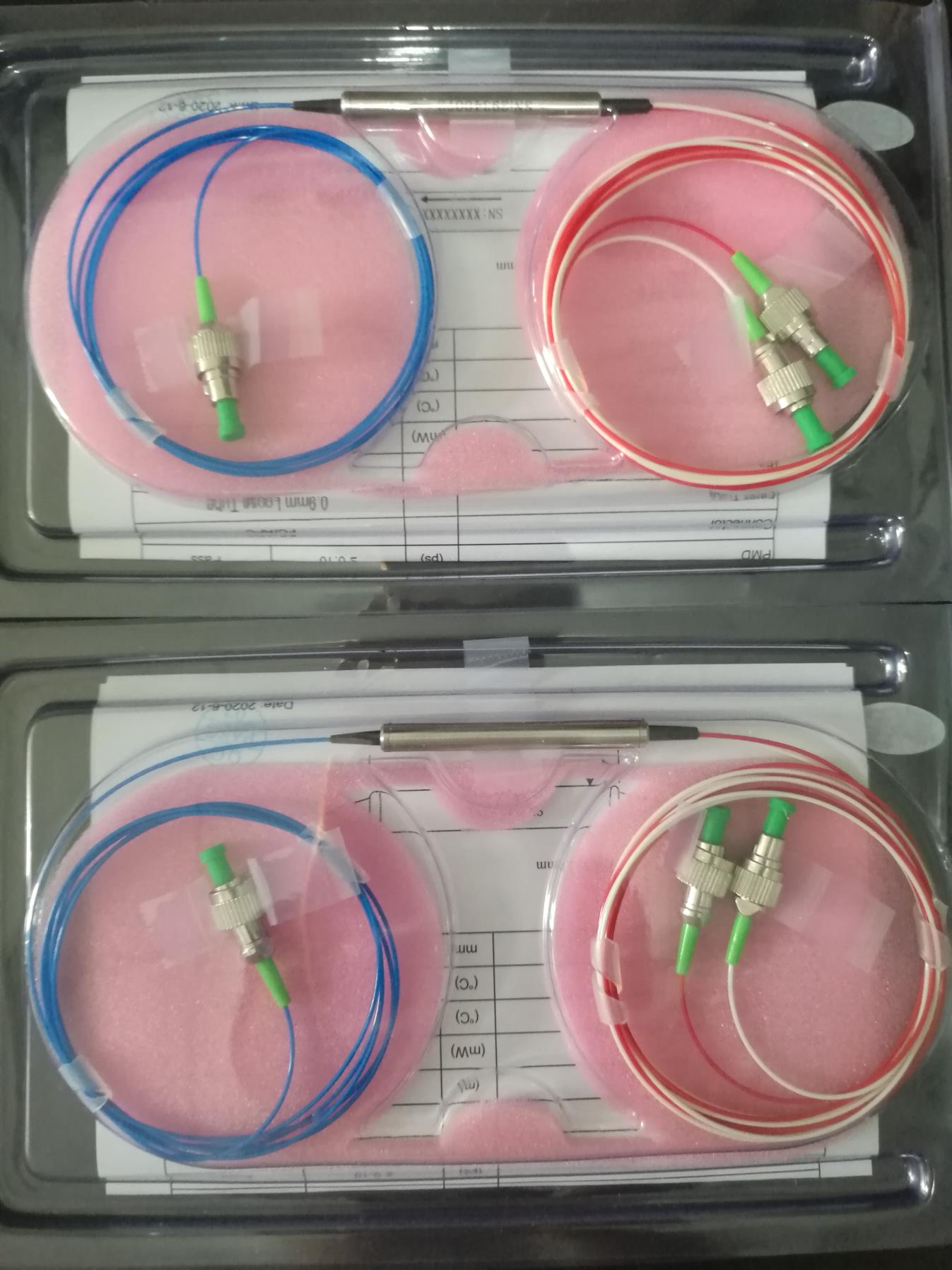

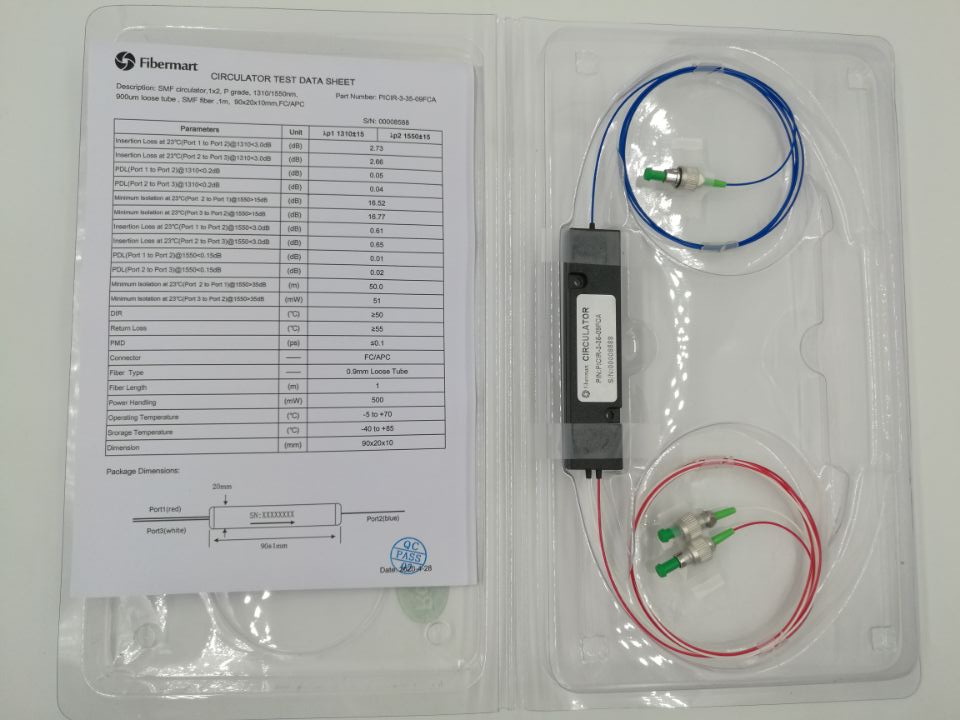

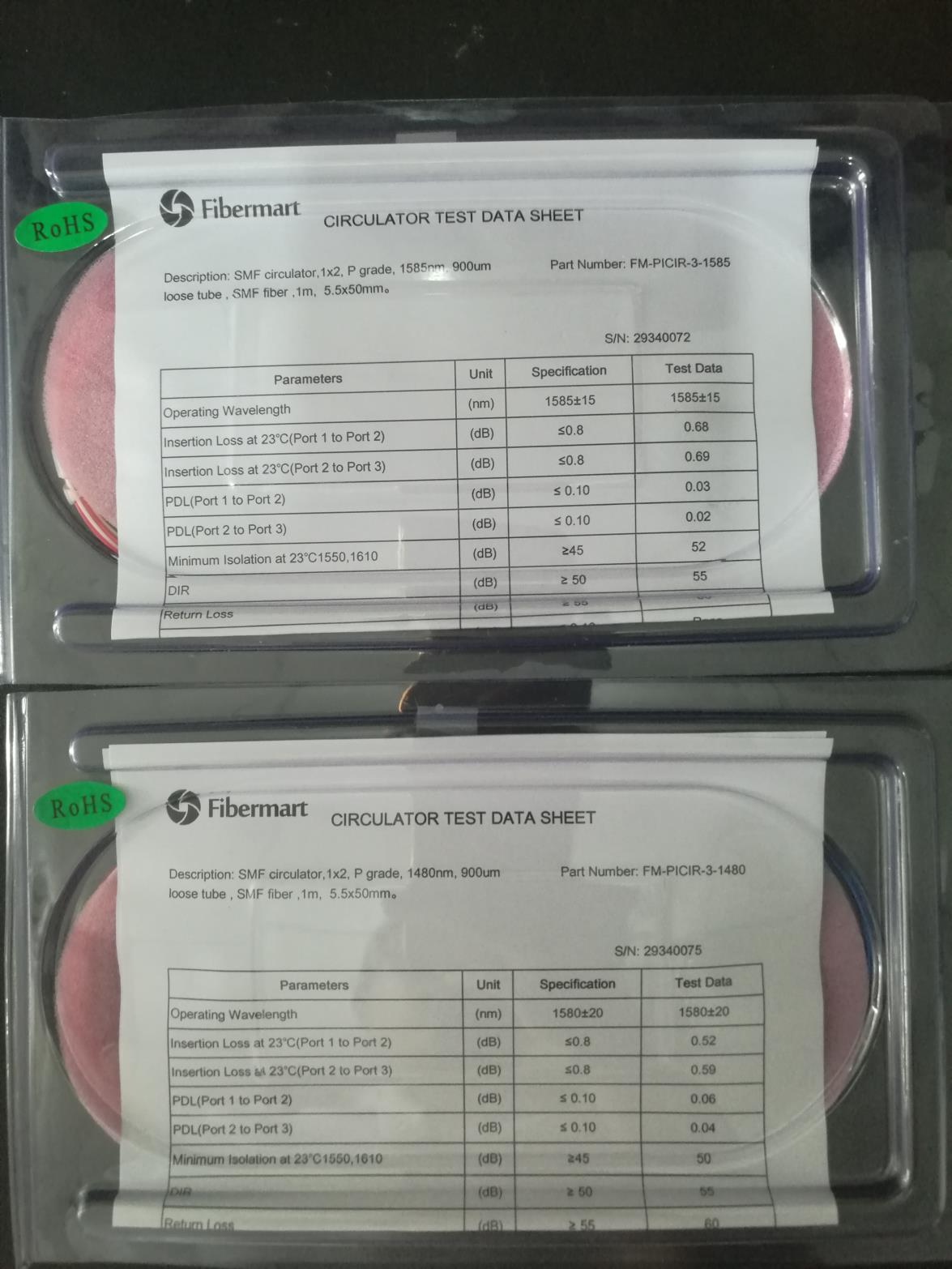

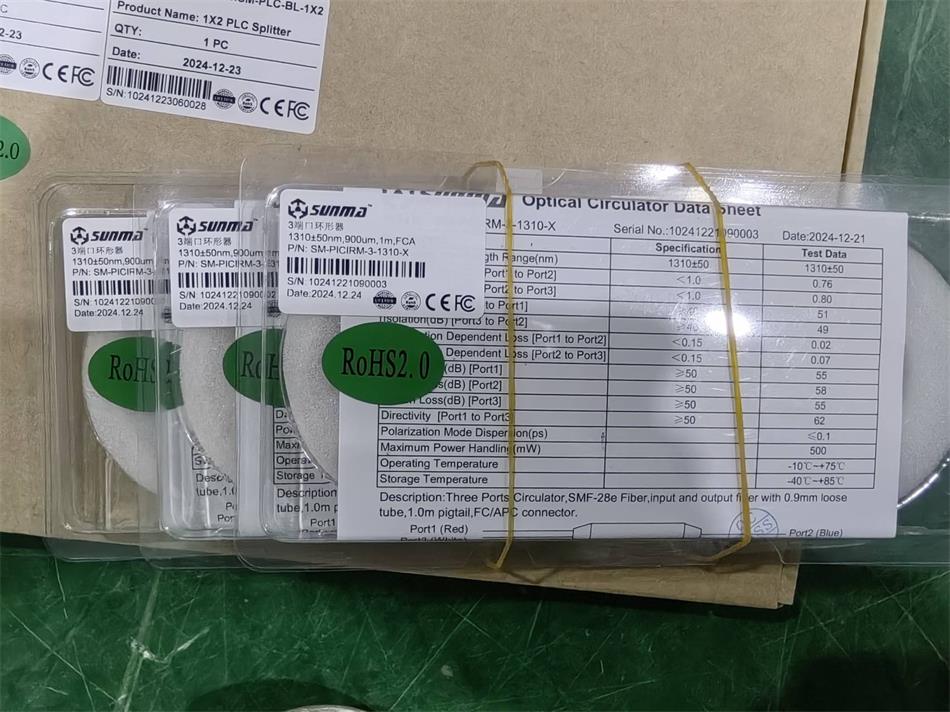

Polarization Insensitive Optical Circulator 3 Ports 1310nm
Fiber-Mart’s Three-port Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction. Characteristics
Applications
Application Diagram
Dimension
|
| wavelength | Type | Grade | Pigtail Type | Length | Connector |
|
1310nm 1480nm 1550nm 1585nm 1520~1620nm |
3 Ports 4 Ports |
P Grade |
250um bare fiber 900um loose tube 3mm loose tube 2mm loose tube |
0.5m 0.8m 1.0m 1.5m 2.0m Custom |
None FC UPC/APC SC UPC/APC LC UPC/APC ST UPC/APC E2000 UPC/APC MU |
Note:
1. Wavelength: Fiber-Mart can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, Fiber-Mart could also provide 0.5M,0.8M,1.5M, 2.0M ,etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc. Please contact us by email to [email protected] or call at +1-205-282-9089 if you have any requirement for it.
|
Type Parameter |
3 Port | 4 Port | |||
| Operating wavelength (nm) | 1310, 1480,1550,1585,(+/-30) | C+L(1520~1620) | 1310,1480,1550,1585,(+/-30) | C+L (1520~1620) | |
| Isolation (λc,23℃ all sop) (dB) | ≥40 | ≥40 | ≥40 | ≥40 | |
| Isolation (Over all λ, T, sop) (dB) | ≥35 | ≥30 | ≥35 | ≥30 | |
| Insertion Loss (λc,0~70℃ all sop) (dB) | Grade P | ≤0.8 | ≤1.1 | ≤0.8 | ≤1.2 |
| Grade A | ≤1.0 | ≤1.2 | ≤1.0 | ≤1.3 | |
| PDL (dB) | ≤0.15 | ≤0.20 | |||
| Return loss (dB) | ≥50 | ||||
| PMD (ps) | ≤0.1 | ||||
| Directivity | ≥50 | ||||
| Power handling (mW) | ≤300 | ||||
| Fiber Type | SMF-28e | ||||
| Operating temperature (℃) | 0 ~ +70 | ||||
| Storage temperature (℃) | -40 ~ +85 | ||||
| Package Dimensions (mm) | For bare fiber of 900um loose tube | φ5.5×L50(P2) | φ5.5×L68(P5) | φ5.5×L64(P8) | |
| For 3mm cable | L98XW14.5XH8.5(P6) | L90XW20XH9.5(P9) | L80xW12xH10(P7) |
