ST/APC to ST/APC Variable Fiber Optic VOA In-Line Attenuator 0-60dB

Press Esc key to close this popup
  • ST/APC to ST/APC Variable Fiber Optic VOA In-Line Attenuator 0-60dB

ST/APC to ST/APC Variable Fiber Optic VOA In-Line Attenuator 0-60dB

Product Item: #12302
P/N: VOA-STA-B-FM
Starting at: US$108.33

Please Choose:










Order Today, Ship before 04/02/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

In-line Variable Optical Attenuator



The in-line variable optical attenuator (VOA) is manually-adjusted, used for precisely balancing the signal strengths in fiber circuits, or balancing an optical signal when evaluating the dynamic range of the measurement system.



Key Features

  • High Precise attenuation value
  • Perfect environmental stability and reliability
  • Low additional loss
  • Flawless end face
  • Wide attenuation range (variable)



Applications

  • Fiber optical telecommunication system
  • FTTH, CATV, LAN
  • Subscriber loop
  • Fiber optical sensor
  • Testing equipment



Technical Specifications

  • Wavelength: 1310 or 1550nm
  • Bandwith(nm): +/-40
  • Attenuation Range: 0.6~60dB
  • Original loss: <0.6dB
  • Precision: 0.02dB
  • PDL: <0.10dB
  • Return Loss: UPC: >55dB APC: >65dB
  • Cable option: 2mm cable
  • Connectors: ST/APC-ST/APC
  • Length: 2 meters
  • Operating temperature (℃): -40~ +70
  • Storage temperature (℃): -40 ~ +85
  • Dimensions (L×W×H mm): 26×8×18

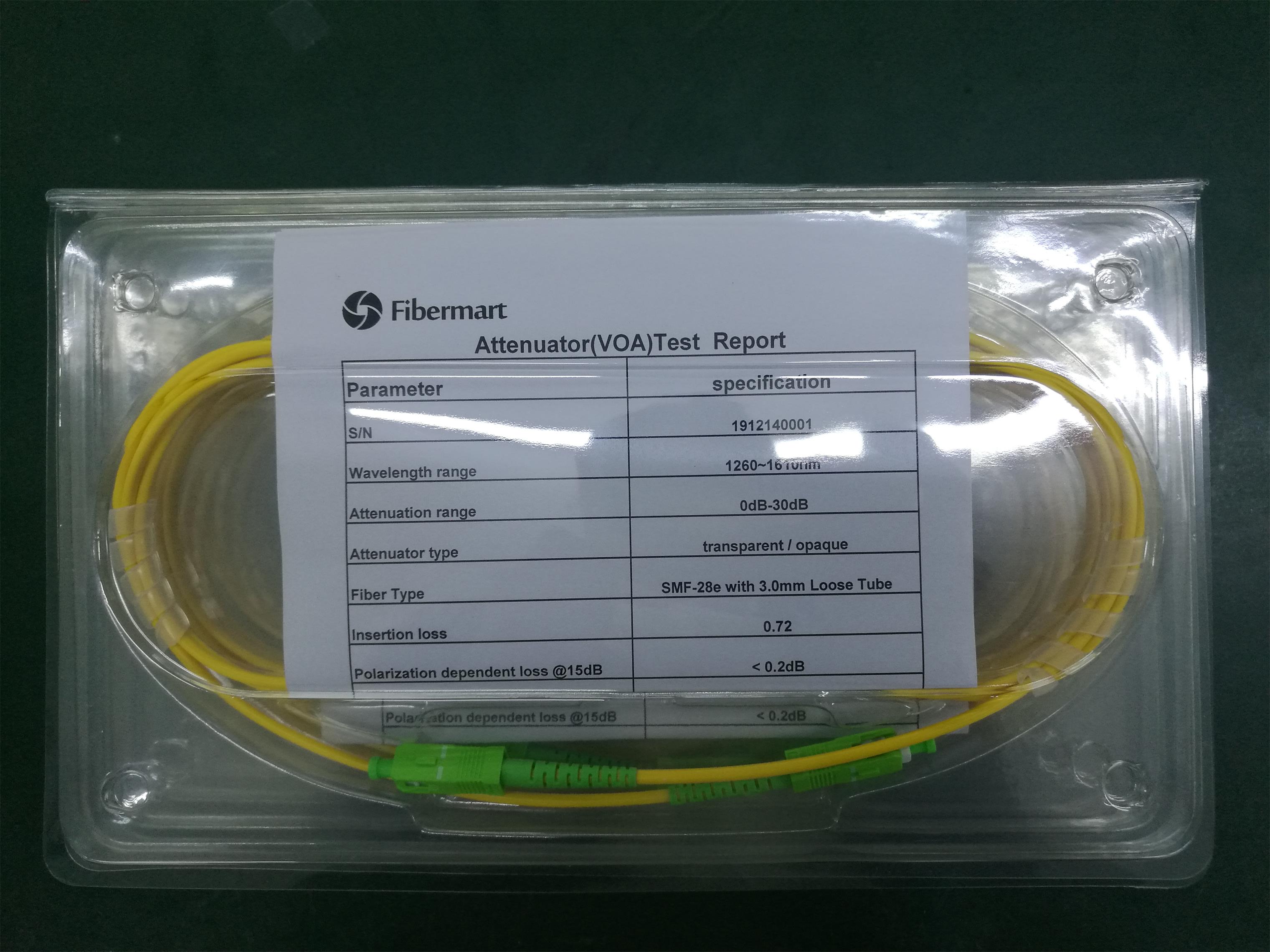

  • Note: Picture is for FC/APC to FC/APC, please take it as reference.

Add your Tags

Optic VOA Attenuator |

Customer Reviews

Displaying 1 to 2 (of 2 reviews)

by Patrick Marshall
Date Added: 12/03/2021
This VOA is just we are looking for, great fibermart!

Rating: 5 of 5 Stars [5 of 5 Stars]
ST/APC to ST/APC Variable Fiber Optic VOA In-Line Attenuator 0-60dB

by Stephen
Date Added: 06/03/2020
I did not have any trouble in getting my desired voa attenuator. No complaints.

Rating: 5 of 5 Stars [5 of 5 Stars]
ST/APC to ST/APC Variable Fiber Optic VOA In-Line Attenuator 0-60dB ST/APC to ST/APC Variable Fiber Optic VOA In-Line Attenuator 0-60dB



Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product.
