100/400/800G Transceiver
100G/400G/800G Transceiver include QSFP+, CFP, and QSFP28 transceivers etc. Generally, QSFP+ has a transfer rate of 40 Gbps, while CFP, QSFP28 has a transfer rate of 40 Gbps or 100, 400 Gbps. FiberMart manufactures and supplies Customized 40G/100G transceiver modules to offer versatile 40G & 100G connectivity options in core and distribution layers of data centers, enterprises, and service provider networks etc. In addition, we also provide Compatible 40G/100G transceiver modules as alternatives to those branded by Cisco, HP, Juniper Networks etc. All of our 40G/100G transceiver modules come with a lifetime advance replacement warranty and are 100% functionally tested.
Introduction

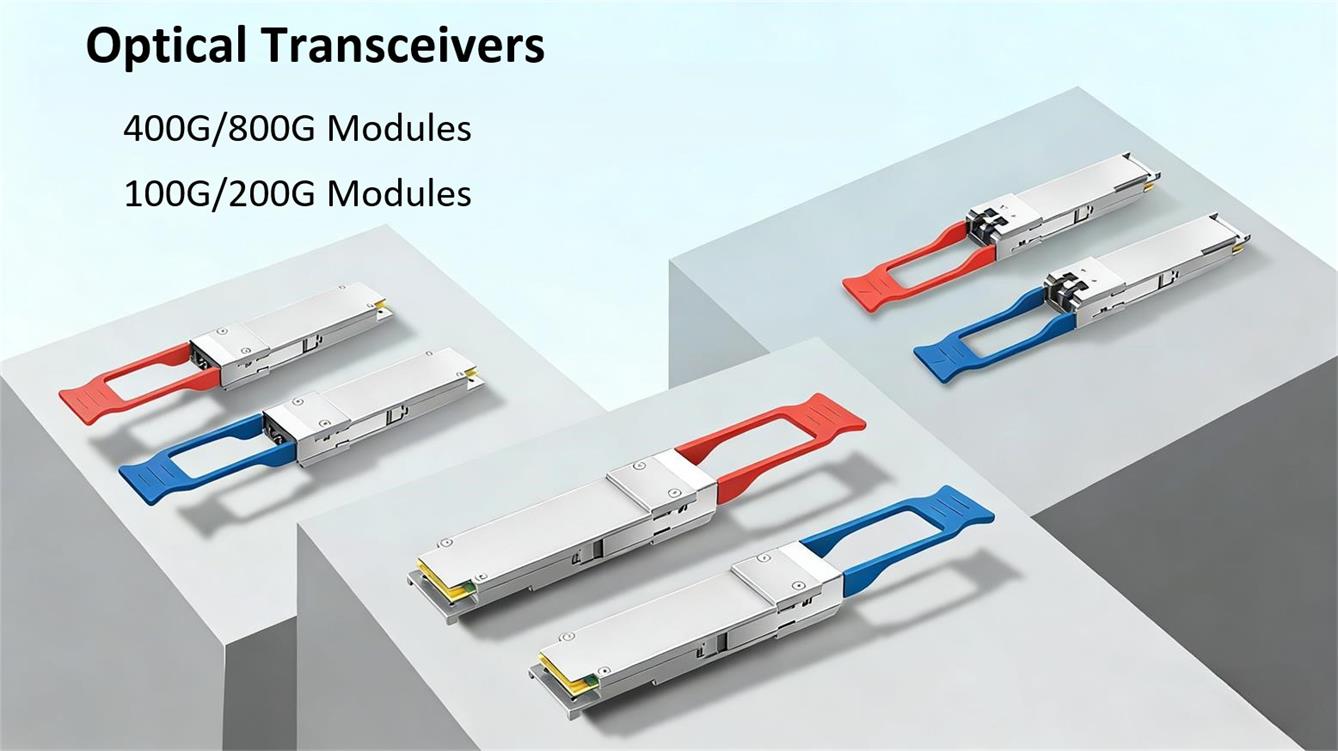

Fibermart's 100G/400G/800G Transceiver series represents the cutting-edge of high-density optical interconnect technology, engineered to meet the exponential bandwidth demands of modern data centers, cloud networks, and high-performance computing. This portfolio encompasses advanced form factors including QSFP28, QSFP-DD, and OSFP, supporting data rates from 40G to 800G. These hot-pluggable modules perform critical electrical-to-optical conversion, enabling versatile, standards-based connectivity for Ethernet and InfiniBand applications while offering both customized solutions and compatible alternatives to major OEM brands.
 Features● Comprehensive High-Speed Portfolio: Includes 100G (QSFP28, CFP, CXP), 200G (QSFP56), 400G (QSFP-DD, OSFP), and 800G (QSFP-DD/OSFP) applications. ● Advanced Form Factors for High Density: Utilizes compact, high-density form factors like QSFP-DD and OSFP that support backward compatibility. ● Multi-Protocol and Application Support: Designed for core protocols including 100/200/400GbE, InfiniBand EDR/HDR/NDR, and OTN. ● Superior Optical Performance & Reach: Advanced modulation (e.g., PAM4) and various reaches from intra-rack (<100m with SR) to long-haul (up to 80km+ with ZR). ● Customization & Full OEM Compatibility: Offers both custom-designed and fully compatible, functionally tested to Cisco, Juniper, Nvidia and other major vendors. ● Digital Diagnostics Monitoring (DDM/DOM): Real-time monitoring of temperature, voltage, optical power, and laser bias current management and troubleshooting. ● Quality Assurance with Lifetime Warranty: Every module undergoes 100% functional testing and is backed by a lifetime advance replacement warranty. Principles
A high-speed optical transceiver is an electro-optic converter that serves as the interface between the electrical domain of network equipment and the optical domain of the fiber plant. Its core function is to translate high-speed electrical data signals from a switch, router, or server's ASIC into precise modulated light pulses for transmission over fiber, and vice-versa at the receiving end.
Modern transceivers like QSFP28 and QSFP-DD achieve high data rates through advanced modulation schemes. While 40G QSFP+ often uses 4x10G NRZ lanes, 100G+ standards increasingly use PAM4 (Pulse Amplitude Modulation 4-level) modulation. PAM4 encodes two bits of information per symbol instead of one, effectively doubling the data rate on the same electrical lane or optical wavelength, which is crucial for 200G, 400G, and 800G speeds. The transceiver's internal architecture includes a laser driver, modulator or directly modulated laser (DML), photodiode, and transimpedance amplifier (TIA), all controlled by a sophisticated IC that manages signal integrity, power, and digital diagnostics.
Applications● Data Center Leaf-Spine & Fabric Interconnects. ● High-Performance Computing & AI/ML Clusters. ● Data Center Interconnect (DCI). ● Telecom Metro & Core Network Upgrades. ● Enterprise Network Core & Storage Connectivity.
|
