PreTerminated Fiber Cable

Introduction

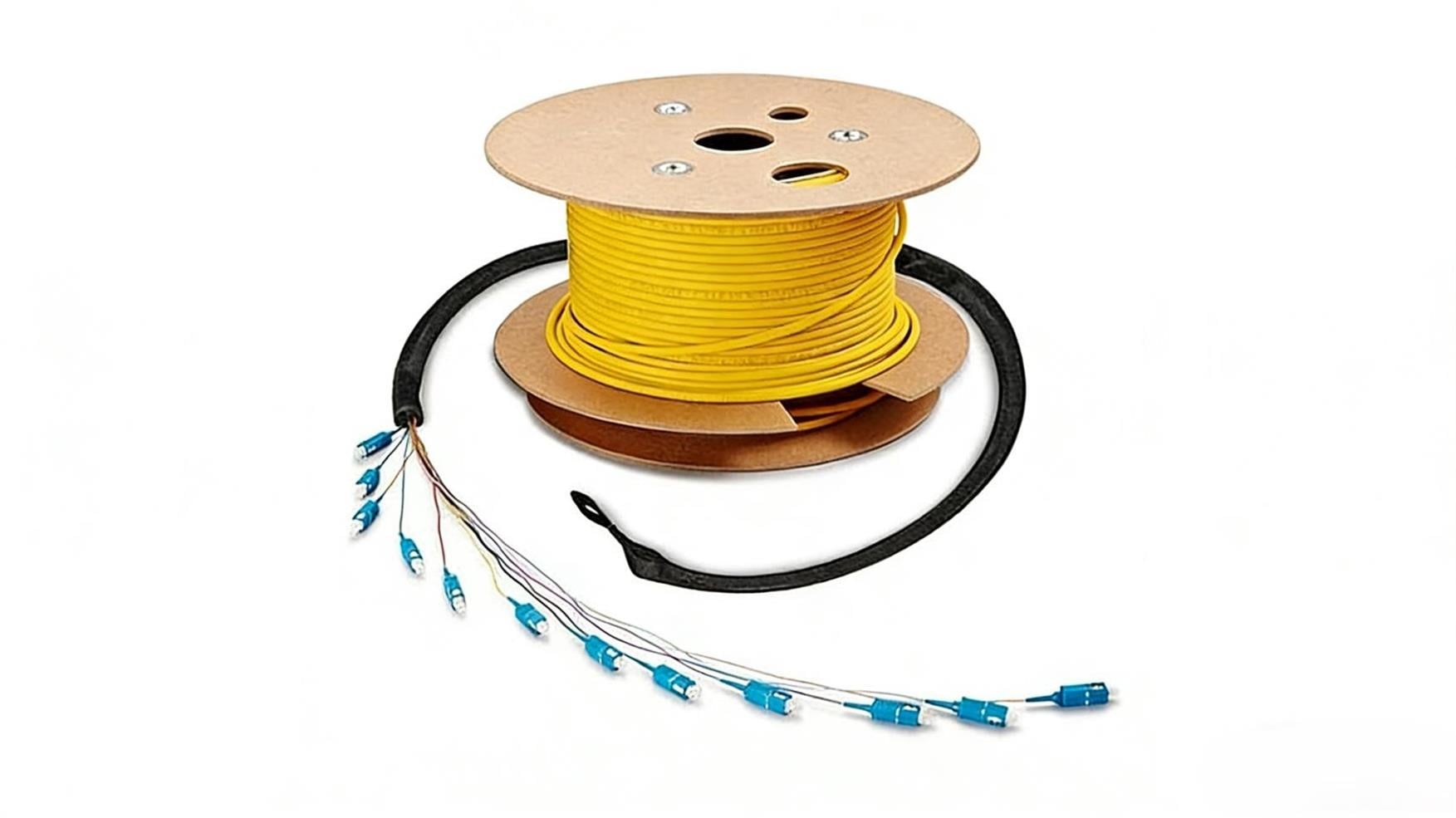

Fibermart Pre-Terminated Fiber Cable represents the definitive evolution in fiber optic deployment, delivering factory-finished performance and unmatched installation efficiency. These complete cable assemblies arrive with connectors precisely installed, optically tested, and ready for immediate plug-and-play installation. Engineered to meet exact project specifications in connector types (LC/SC/ST/FC/E2000), fiber count (from 4 to 144 strands), fiber type (including OM1 to OM5 multimode and OS2 single-mode), and environmental rating (indoor plenum or rugged outdoor), they eliminate the variability and skill gap of field termination. Featuring integrated pulling eyes for safe installation, these cables are the optimal, reliable backbone for modern, high-speed network builds and upgrades.

Features

● Manufactured to exact requirements for fiber count (e.g., 4, 6, 12, 24), fiber type (OM1/2/3/4/5 Multimode or OS2 Single-mode), jacket type (PVC, LSZH Indoor/Plenum or TPU Armored Outdoor), and precise cable length.

● Every connector is polished and 100% Tested in factory with individual Testing Report, guaranteeing low insertion loss < 0.2dB, high return loss, and consistent performance.

● Equipped with robust pulling eyes or swivel pulling grips that transfer installation tension directly to the cable's strength members, preventing damage to connectors and delicate fibers during pull-through in conduits, trays, or overhead pathways.

● Available in versions for indoor (using plenum-rated OFNP or riser OFNR jackets) and harsh outdoor environments (UV-resistant, water-blocking LSZH, IP67/68 TPU Armored jackets), ensuring reliability across deployment scenarios.

● CE, RoHS, FCC, ISO9001 Certificated for each unit to ensure High performance and Zero Failure in Lifetime Warranty.

Principles

A Pre-Terminated Fiber Cable operates on the principle of shifting the complex, precision-critical termination process from the field to a controlled factory environment. In the factory, optical fibers are stripped, cleaved, and inserted into connector ferrules with microscopic precision. The connection is secured using epoxy or other permanent bonds, then polished to an optimal end-face geometry (UPC or APC). Each finished connector undergoes rigorous optical testing to validate its performance against loss and reflectance standards.

This process ensures that the fundamental optical interface—where light signals are most vulnerable to loss or reflection—is perfected before the cable ships. The cable assembly is thus a complete, tested channel. The integrated pulling eye is a key mechanical innovation. It is designed to engage with the cable's internal strength members (like aramid yarn) through a molded transition. During installation, pulling force is applied to this eye, safely distributing mechanical load along the cable's strong spine rather than stressing the fragile glass fibers or connectors, enabling reliable deployment over long distances and through challenging pathways.

Applications

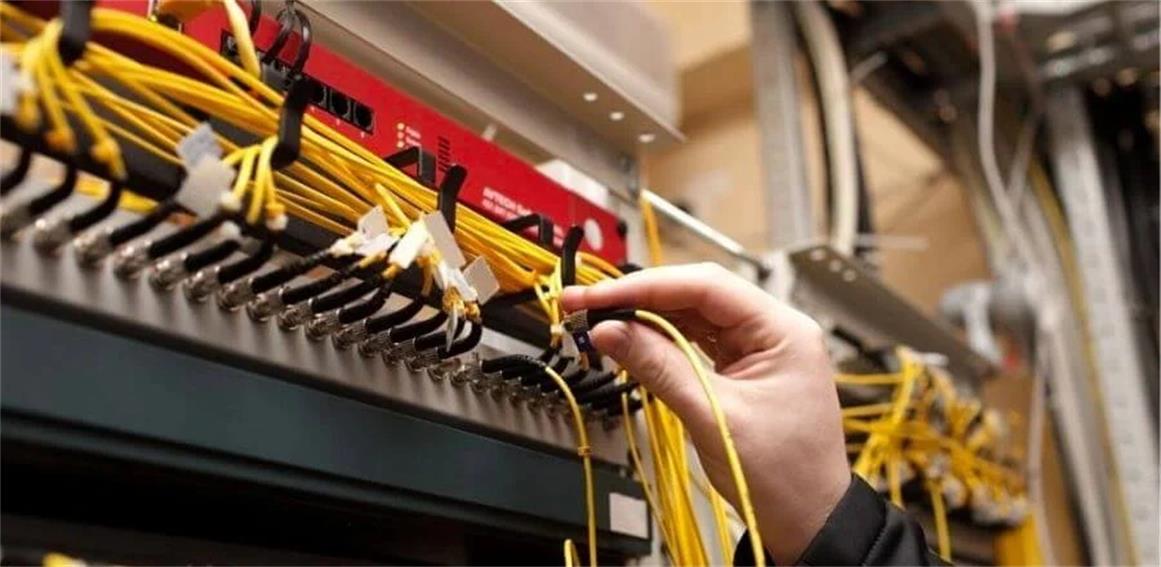

● Data Center Structured Cabling: Deploying as instant backbone trunks between main and intermediate distribution areas, or as high-fiber-count horizontal runs to server cabinets, drastically reducing installation time and ensuring performance consistency.

● Building-to-Building Campus Networks: Serving as the ideal, ruggedized solution for underground duct or aerial links between facilities, with outdoor-rated jackets and pulling eyes facilitating long, difficult pulls.

● Fiber to the Home (FTTx) Access Networks: Used as pre-connected drop cables from distribution terminals to subscriber premises, enabling rapid, high-quality service activation without field splicing.

● High-Density Equipment Interconnects: Simplifying patching in telecommunication central offices and enterprise network rooms by providing clean, bundled connections between patch panels and core switches or transport equipment.

● Time-Critical Network Expansions and Upgrades: Providing a foolproof solution for projects with tight deadlines, where the speed of plug-and-play installation and guaranteed first-time performance are critical to project success.

Specifications
