PM Isolator High Power Polarization Maintaining Isolator HPPMIS 2W 980nm

Press Esc key to close this popup
  • PM Isolator High Power Polarization Maintaining Isolator HPPMIS 2W 980nm

PM Isolator High Power Polarization Maintaining Isolator HPPMIS 2W 980nm

Product Item: #2931
(0 Customer Reviews)
P/N: HPPMIS-980-2
Starting at: US$785.80

Please Choose:










Order Today, Ship before 04/24/2024, from U.S. or HK
  • Description
  • Datasheet
  • Tags

2W 980nm High Power Polarization Maintaining Isolator HPPMIS



Features



  • Low Insertion Loss
  • High Return Loss
  • High Isolation
  • High stability
  • High Reliability

Applications



  • Optical Fiber Amplifiers
  • Testing Instrumentations
  • Fiber Sensor
  • Fiber Lasers
  • Lab Research

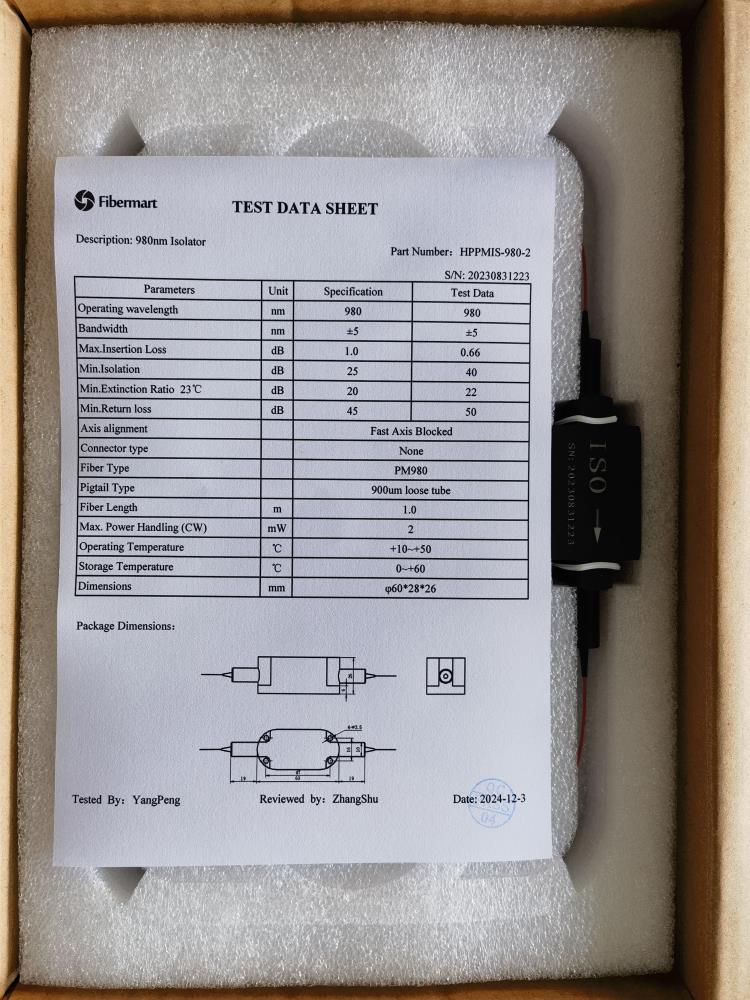

Picture Details

PM Isolator fibermart



Package Dimensions

high power optical Isolator



Ordering Information


HPIS/HPPMIS-1111-23456-77
1111 Center Wavelength: 980=980nm
2 Axis alignment F=Slow axis working Fast axis blocked, B=Both of axis working, N=No axis
3 Fiber type 0=PM Panda fiber, 1=SMF-28e, 2=Hi1060, 3=Hi780
4 Pigtail type: 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube
5 Fiber length: 0=0.8m,1=1m
6 Package Dimension: 0=72*34*33mm, S=Specified
77 Handling Power 01=1W, 02=2W,......,05=5W,......, 20=20W

Parameters Unit Value
Type - HPIS HPPMIS
Center Wavelength nm 980
Operating Wavelength Range nm ±10
Typ. Peak Isolation at 23℃ dB 32~40
Isolation at 23℃ dB 25
Typ. Insertion Loss at 23℃ dB 0.6
Max. Insertion Loss at 23℃ dB 1
Max.PDL at 23℃( only for HPIIS) dB 0.15 /
Extinction Ratio only for B type dB / 20
  only for F type dB / 22
Return Loss(Input/Output) dB 50/50
Max. Optical Power(CW) W 1, 2, 5 or specify
Max. Tensile Load N 5
Fiber Type - Hi 1060 PM Panda Fiber


Fibermart PM Isolator Datasheet





Datasheet to Download
