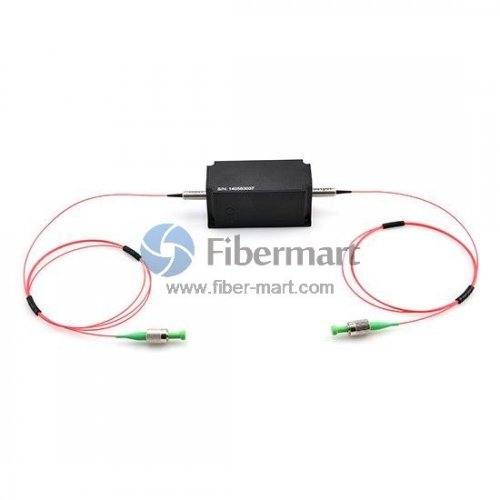

FC/APC 980nm 900um Polarization Maintaining Isolator

Product Item: #1744
P/N: HPPMIS-FCA-980-1
Starting at: US$881.67

Please Choose:










Order Today, Ship before 06/10/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

Polarization Maintaining Isolator 1M FC/APC 980nm 900um



The High Power Isolator series products include high power isolator and high power collimator.The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc.1310/1480/1550nm High Power Polarization Maintaining Isolator is one of in-line type isolator.They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.



Characteristics



Specifications

  • Low insertion loss
  • High isolation and Extinction Ratio
  • High stability and reliability

  • Applications
  • Fiber Amplifier
  • Fiber sensor
  • Fiber Laser
Parameter Value
Center wavelength λc (nm) 980
Bandwidth(nm) ±10
Peak isolation (dB) 32
Isolation at λc 23℃(dB) ≥25
Type Insertion Loss at 23℃(dB) 0.8
Insertion Loss at 23℃(dB) ≤1.0
Extinction Ratio (dB) ≥20
Return loss (Input/output) (dB) ≥50/50
Power handling (mW) ≤300
Fiber Type Panda fiber
Operating temperature (℃) -5~+50
Storage temperature (℃) -20 ~ +75
Package(mm) 118*32*32
Above specifications are for devices without the connectors.



Dimension

Fiber-Mart



Order Information

PMIS Wavelength Axis Alignment Pigtail Type Fiber Type Length Connector Package size
PMIS 980nm F=Fast Axis blocked
B=Both of axis working
S=Slow axis working
250=250um bare fiber
900=900um loose tube
3.0=3.0mm loose tube
2.0=2.0mm loose tube
5=Panda fiber 0.8=0.8
1= 1m
XX=Other
NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LA=LC/APC
XX=Other
118x32x32






Fibermart PM Isolator Datasheet





Datasheet to Download
