S2000 Series Smart Managed Industrial Switch

Product Item: #18107

(0 Customer Reviews)

P/N: FM-S2000-X-X

Starting at: US$60.00

Please Choose:

Product Model

Power Type:

Customized Details:

Order Today, Ship before 06/09/2026, from U.S. or Hong Kong

Description
Datasheet
Tags
FAQ

S2000 Series Layer2 Smart Managed Industrial Switch

The S2000 series is a line of industrial-grade managed Layer 2 switches featuring a compact design, dual redundant power, and intuitive WEB management. With ultra-low power consumption and compliance with industrial EMC standards, they deliver reliable gigabit Ethernet connectivity for harsh environments. Ideal for smart cities, transportation, safe cities, new energy, and Industry 4.0, these switches provide robust, energy-efficient networking for industrial automation and IoT deployments.

Product Highlights

● Support MDI/MDI-X auto-adaptation

● Support half-duplex, full-duplex, self-negotiation working mode

● Supports dual redundant power supply

Feature & Specification

Attribute	S2000-4T1S-IK	S2000-4T2S-IK
Port	410/100/1000M Base-T RJ45 port 110/100/1000M Base-X SFP port	410/100/1000M Base-T RJ45 port 210/100/1000M Base-X SFP port
Power Supply	Terminal block with 4PlN 5.08mm spacing, support redundant power supply; DC 12V/24V/48V rated input, and the maximum input range: DC 10~60V.
Power	≤5W (Non-POE); ≤125W(POE)
Temperature	-40℃~75℃, 5%~95%, Non-condensing
Heat Dissipation Mode	Natural, Fanless
Dimensions (LWH)	1189028mm
Structure and Materials	IP40, all-metal housing
Weight	≤300g
Installation	DIN-rail installation
Standards	FCC CFR47 Part 15, EN55022/CISPR22, Class A IEC61000-4-2(ESD) ±6kV (contact), ±8kV (air) IEC61000-4-3(RS) 10V/m (80MHz～1GHz) IEC61000-4-4(EFT) Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge) Power Port: ±4kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS) 10V (150kHz～80MHz) IEC 60068-2-27(Impact) IEC 60068-2-32(Free fall) IEC 60068-2-6(Vibration)

Software Feature
Vlan	4K VLANs, 802.1Q tagging, and Access/Trunk/Hybrid modes
Qos	Supports 802.1p COS, DSCP, and 4 priority queues (WRR/HQ-WRR)
Storm Suppression	Blocks broadcast/unknown multicast/unicast storms
IGMP	Support IGMP Snooping
Port mirroring	Supports one-to-one/many and bidirectional mirroring
Security & Access Control	4K MAC table, IEEE 802.1x authentication, and user password protection
Management	GUI-based configuration and SNMP v1/v2c

Product Features

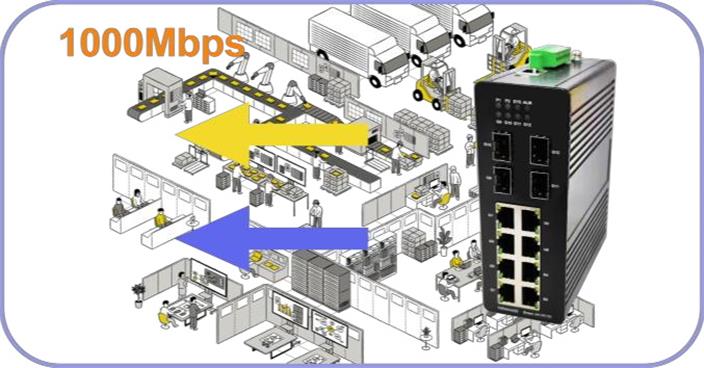

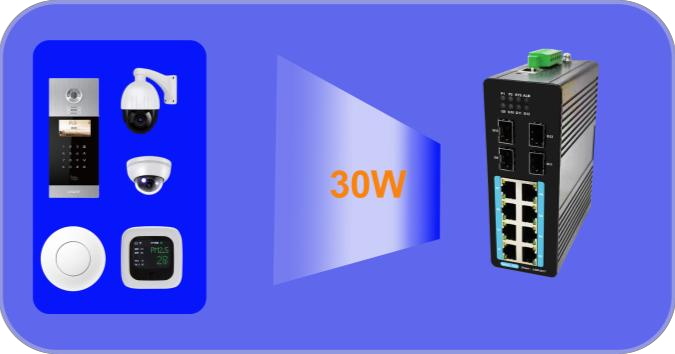

Rich port and full gigabit for various application.	IEEE 802.3 af/at. Single port max 30W PoE output.

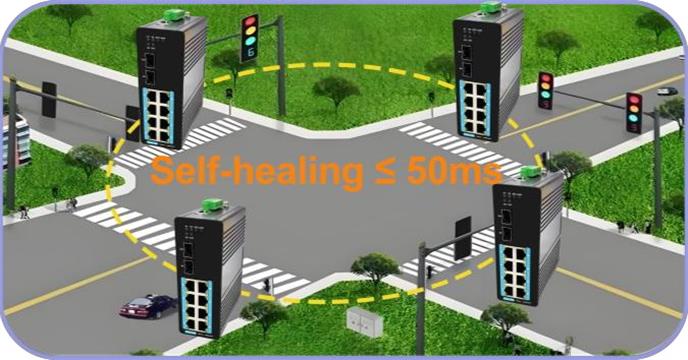

Redundant power supply and Relay Alarm. Alarm when power down/port-link down	Support link redundancy and Industrial ERPS Ring connection

Fanless P40 and industrial production such as Surge, ESD EFT, Vibration, etc	Rich L3 management function
