S5860 Series Layer3 Managed Ethernet Switch

Product Item: #18111
P/N: FM-S5860-48M4X2Q
US$1,670.00

Please Choose:





Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

Layer3 S5860 Series Managed Ethernet Switch



The S5860 series switch is a high-performance Layer 3 stackable switch that supports multi-rate access at 1G/2.5G and offers 40G uplink core routing. This switch is designed to meet the high-density and high-bandwidth requirements of nextgeneration enterprise networks, data centers, and metropolitan area networks. It offers a comprehensive set of service features, including Layer 2, Layer 3, VXLAN, OAM/APS, and others, along with robust security and flow control features and high-precision clock capabilities.



Features



● 48*100/1000M/2.5G Base-T port

● 4*1000M/10G/25G SFP28 por

● 2*40G QSFP

● 600Gbps switching capacity

● Layer3 full managed

● Dual Power Supply

● Support stacking function



Application Solution



Layer2 Layer3 Switch Application Solution-1

Layer2 Layer3 Switch Application Solution-2

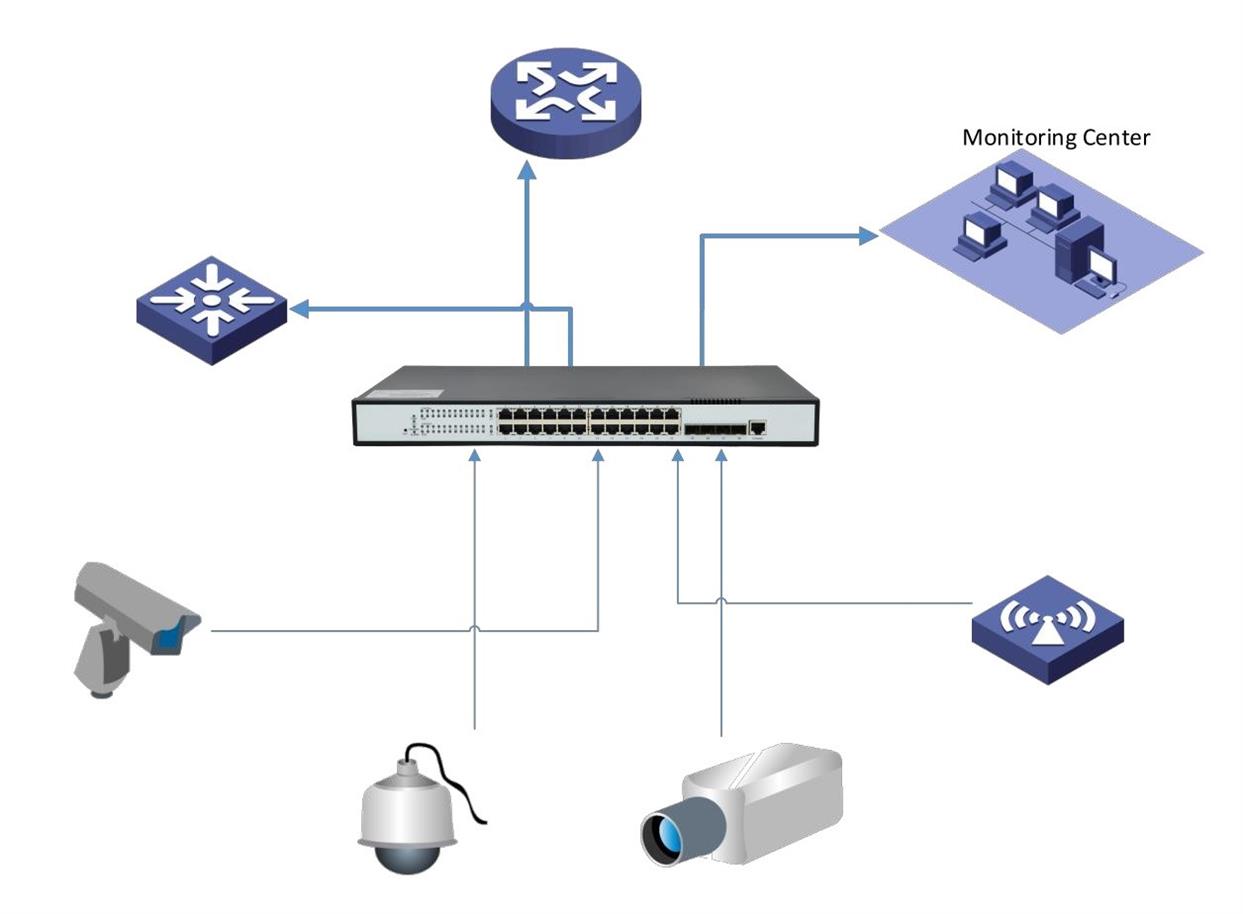

Layer2 Layer3 Switch Application Solution-3



Specifications



Attribute S5860-48M4X2Q
Interface 48*10/100/1000M/2.5G Base-T;
4*1000M/10G/25G SFP28; 2*40G QSFP
Switching Capacity 600Gbps
Forwarding Rate 446.43Mpps
MAC Address 32K
Packet Buffer 72Mbit
RAM/Flash RAM: 1GB; Flash: 8GB
Power Supply AC: 100~240V 47/63Hz;
(optional dual-fixed AC)
Power Consumption Full load ≤125W
Dimension (L*W*H) 440*330*44mm (L * W * H)
Environment Temperature Working Temperature: -10℃~ 50℃
Storage Temperature: : -40℃~ 70℃
Relative Humidity: 5%~95%, non-condensing
Software Features
VLAN MAC and protocol VLAN, QinQ and fiexible QinQ
Ring Protoco STP/RSTP/MSTP, ERPS ,EAPS
PoE Control Support
Port Aggregation Static link aggregation Support dynamic LACP
Mirroring Support
ACL Support standard and extended ACL
QoS 802.1P, DSCP priority
Safety IEEE 802.1X authentication, Radius authentication
Layer3 Routing Static/dynamic routing, RIP/OSPF/VRRP
Management CLI、Telnet、WEB、SNMP V1/V2/V3、SSH



Product Features



Stability QoS Capabilities

● Linux operating system

● IPv4/IPv6 dual protocol stack platform

● STP/RSTP/MSTP/ERPS/LACP etc.

● Support port speed and flow speed limit

● Support Service flow and QoS flow control

● Support SP/WRR/SP+WRR

● Support port-based and service flow-basedmirroring functions

Safety Mechanism Routing Protocol

● Support ACL security filtering mechanism based on MAC, IP, L4 port

● Support Anti-ARP & User Blocking function

● Support DHCP attack automatic protection

● Support DDOS and virus attack protection

● Support DHCP/IP/802.1X etc.

● Support BFD, FlexLink, LACP and ERRP etc.

● Support Remote Loop Detection function

● Support CFM、EFM

● Support Tacacs+, Radius, and Local user authentication

● Support Static Route

● Support RIP, OSPF,BGP, ISIS

● Support IPV4/IPV6 dual protocol stack

● Support RIPng、OSPFv3

Multi-service Capabilities Network Management

● Support DHCP Server and DHCP Relay

● Support L2-Tunnel

● Support Ethernet OAM protocol (CFM、EFM)

● Support CLI based on RS232 serial port, Telnet and SSHv2

● Support RFC1213 SNMP

● Support WEB-based configure operation

● Support SNMP V1/V2/V3

● Support FTP & TFTP remote upgrade and download
