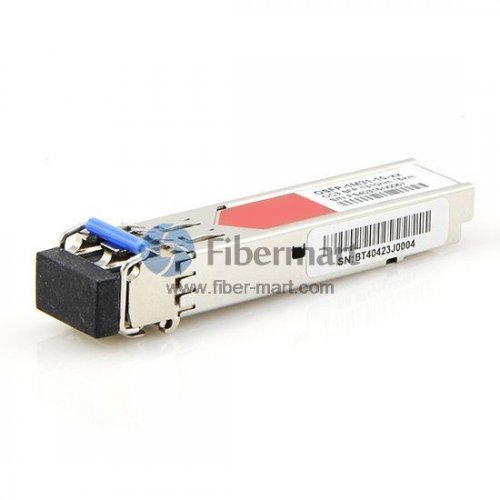

100/155Mbps OC-3/STM-1 1310nm 15km SFP Transceiver

FM SKU#:SKU10002MY
Model#:OSFP-1M31-15
MFG PART#:

OSFP-1M31-15

OC-3/STM-1 is a network line with transmission speeds of up to 155.52 Mbit/s (payload: 148.608 Mbit/s; overhead: 6.912 Mbit/s, including path overhead) using fiber optics. Depending on the system OC-3 is also known as STS-3 (electrical level) and STM-1 (SDH). These modules are also used for Fast Ethernet application.

Key Features

• Data-rate of 155Mbps operation
• 15km with 9/125 µm SMF
• Hot-pluggable SFP footprint duplex LC connector Interface
• Class 1 FDA and IEC60825-1 Laser Safety Compliant
• Compatible with SFP MSA
• Compatible with SFF-8472
• Average Output Power:-15～-8dBm
• Receiver Sensitivity:-28dBm
• +3.3V single power supply

Applications

• Fast Ethernet
• OC-3 IR-1 /STM-1 (S-1.1)
• ATM Switches and Routers
• Other Optical Links

Ordering Information

Part No.	Data Rate (Mbps)	Wavelength (nm)	TX Power (dBm)	Re Sens. (dBm)	Transmission Distance	Fiber Type	Connector Type	Temp. Range	Digital Diagnostics
OSFP-1M31-2	≤ 155	1310	-19~ -14	﹤-30	2km	MMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M31-15	≤ 155	1310	-15~ -8	﹤-28	15km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M31-40	≤ 155	1310	-5~0	﹤-34	40km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M31-80	≤ 155	1310	0~5	﹤-34	80km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-15	≤ 155	1550	-15~ -8	﹤-28	15km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-40	≤ 155	1550			40km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-80	≤ 155	1550	-5~0	﹤-34	80km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-100	≤ 155	1550	-3~2	﹤-34	100km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-120	≤ 155	1550	0~5	﹤-34	120km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-160	≤ 155	1550	2~7	﹤-35	160km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-200	≤ 155	1550	2~7	﹤-45	200km	SMF	LC	Com./Ex./Ind.	Yes/NO

Notes

• xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)

Packaging

• Antistatic bag
• Packed on pallets in a box(Default Customer Options)
• Specific Labels as Request
• Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiber-Mart provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiber-Mart in the world.

• OEM/ODM order is available
• We can supply OSFP-1M31-15 according to your requirements, and design OSFP-1M31-15 label and packaging for your company. We welcome any inquiry for customized SFP optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying DWDM SFP From Original Manufacturer Fiber-Mart Directly.

Fiber-Mart is an professional manufacturer & supplier of SFP transceivers. All of our SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee SFP transceivers to work in your system and all of our SFP transceivers come with a lifetime advance replacement warranty. If you have questions about SFP optics, please feel free to contact us at [email protected].



Ordering Information

Part No.	Data Rate (Gbps)	Wavelength (nm)	TX Power (dBm)	Re Sens. (dBm)	Transmission Distance	Fiber Type	Connector Type	Temp. Range	Digital Diagnostics
OSFP-1M31-2	≤ 155	1310	-19~ -14	﹤-30	2km	MMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M31-15	≤ 155	1310	-15~ -8	﹤-28	15km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M31-40	≤ 155	1310	-5~0	﹤-34	40km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M31-80	≤ 155	1310	0~5	﹤-34	80km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-15	≤ 155	1550	-15~ -8	﹤-28	15km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-40	≤ 155	1550			40km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-80	≤ 155	1550	-5~0	﹤-34	80km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-100	≤ 155	1550	-3~2	﹤-34	100km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-120	≤ 155	1550	0~5	﹤-34	120km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-160	≤ 155	1550	2~7	﹤-35	160km	SMF	LC	Com./Ex./Ind.	Yes/NO
OSFP-1M55-200	≤ 155	1550	2~7	﹤-45	200km	SMF	LC	Com./Ex./Ind.	Yes/NO

Notes

• xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are short for compatible brand.)
