10W High Power Fiber Isolator Single Stage 1310/1550nm HPIS

Product Item: #733
P/N: HPIS-13/15-S-10
US$172.50



Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

High Power Isolator 10W Single Stage 1310/1550nm HPIS



Features

  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High stability
  • High Reliability



Applications

  • Optical Fiber Amplifiers
  • Testing Instrumentations
  • Fiber Sensor
  • Fiber Lasers
  • Lab Research

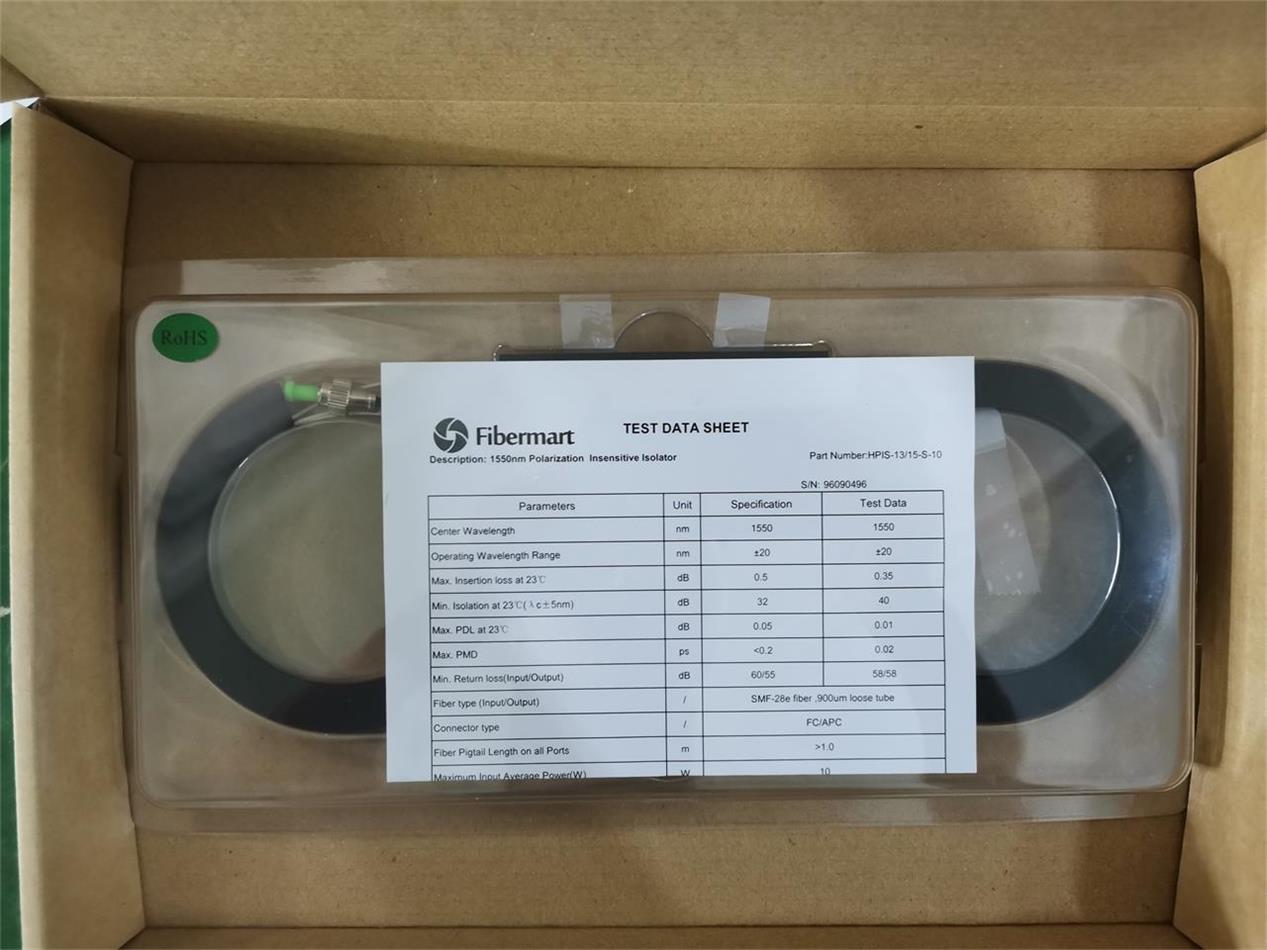

Picture Details



Ordering Information

Type Wavelength Fiber Power Pigtail Type Fiber Length Connector
HPIS 1=1310nm 1=SMF-28e 1=Single Stage 1=250um bare fiber 1=0.8m 0=None
HPPMIS 2=1480nm 2= PM1310 Panda Fiber 2=Dual Stage 2=900um Loose Tube S=Specify 1=FC/UPC
  3=1550nm 3= PM1550 Panda Fiber   2=3mm Loose Cable   2=FC/APC
  S=Specify     S=Specify   3=SC/UPC
            4=SC/APC
            S=Specify



Parameters Unit Values
Stage   Dual Single
CenterWavelength nm 1310or1550
OperatingWavelengthRang nm ±20
Typ.InsertionLossat23℃ dB 0.4 0.35
Max.InsertionLossat23℃ dB 0.55 0.5
Typ.Isolation dB 58 42
Min.Isolation dB 48 28
ExtinctionRatio dB 23
20
Max.PDLat23℃(forSMF-28eonly) dB 0.15
ReturnLoss(Input/output) dB 50
Max.OpticalPower(CW) W 1,2,3,5,10orspecify
Max.TensileLoad N 5
FiberType   PM1310PandaFiber PM1550PandaFiber
  SMF-28e
OperatingTemperature -5~+70
StorageTemperature -40~+85
PackageDimensions mm 5.5*35

Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.The default connector key is aligned to slow axis.


Fibermart Optical Isolator Datasheet





Datasheet to Download

Customized Service :



● If you need any customized products or services, please write your request in Order Remarks, or send an email to [email protected]



Get Quote or Checkout Online :



● To request a Quote or Checkout to pay online, simply add items into your cart and select your preferred method.



Free Shipping & No Tariff :



● Online Order over US$200 is Free Shipping (Not included Heavy Items like Outdoor Cable, Outdoor Cabinet etc),

● For US customer, Fibermart covers all customs duty and fees - no additional tariff charges.



Shipping Time :



● FedEx : 2-4 business days
● UPS : 2-5 business days
● DHL : 2-6 business days
● Shipment by Sea : 20-25 business days



Payment Method :



● PayPal (Online)

● Credit / Debit Card (Online)

● ABA Routing (US Local)

● T/T Wire Transfer (International)



Returns & Warranty :



● 1-Year Warranty

● 60-Day Returns

● 60-Day Exchange

● Limited Lifetime Warranty.

   Read full Return & Refund Policy



Net Term & Credit :



● Fibermart accept Net 30 and Net 60 payment terms, Contact Us for Credit Account by submit a credit form.



Volume Discount :



● Fibermart offers discount prices for large-volume order, Contact Sales Team for more details.



Customer Reviews

Displaying 1 to 4 (of 4 reviews)

by Alexander Phillips
Date Added: 12/26/2025

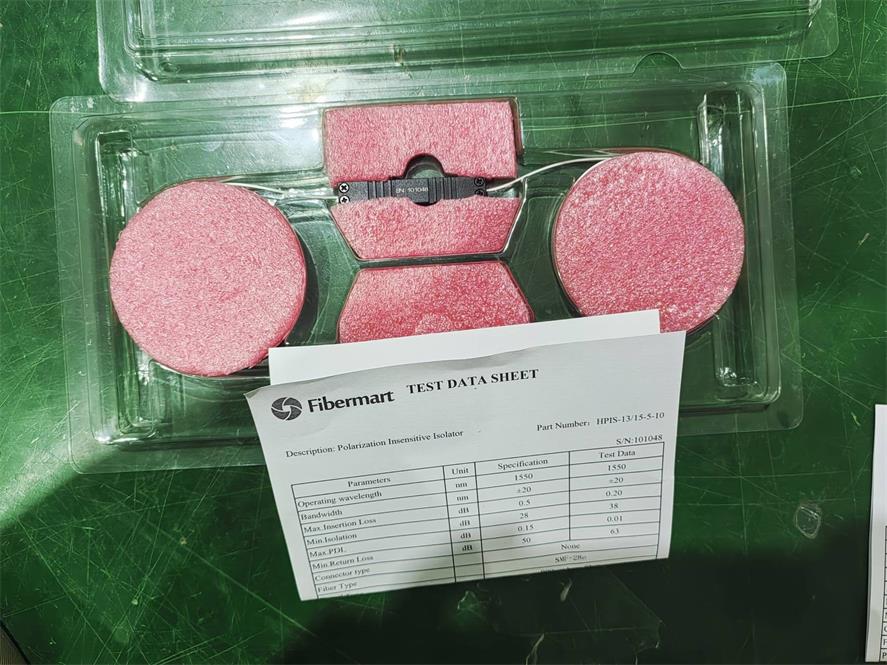

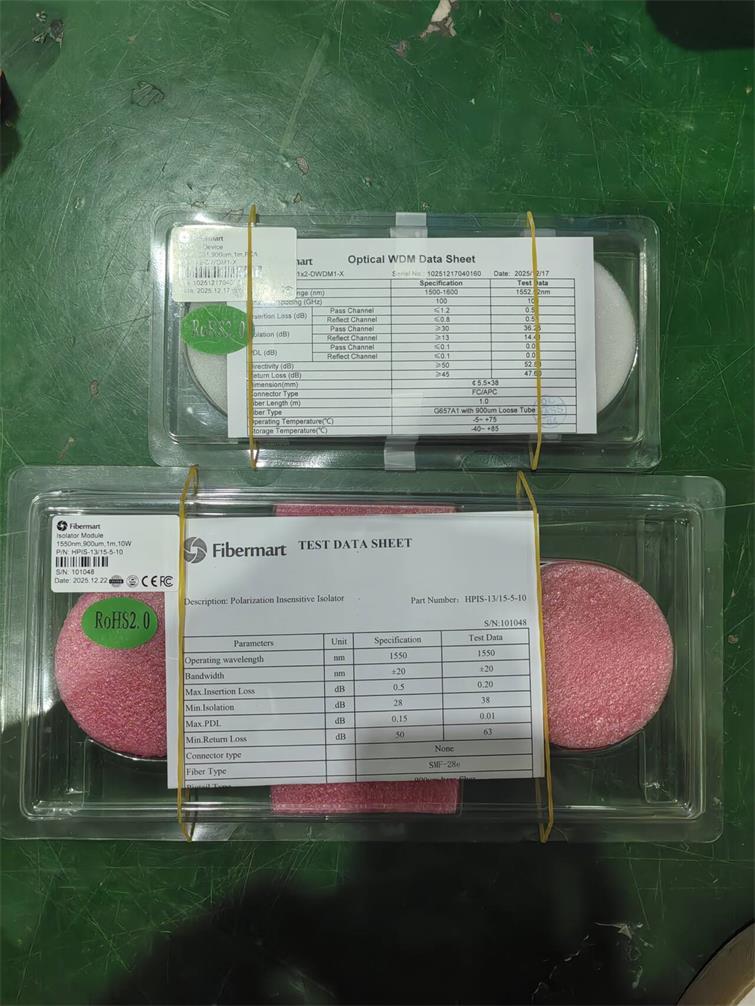

Fibermart HP isolator features a compact structure and well-controlled insertion loss, effectively preventing back reflection from damaging the light source.

Rating: 5 of 5 Stars [5 of 5 Stars]
10W High Power Fiber Isolator Single Stage 1310/1550nm HPIS 10W High Power Fiber Isolator Single Stage 1310/1550nm HPIS

by William Oscar
Date Added: 08/08/2024
The 10W isolator works good in our line, the isolation also no problem, many thanks for providing such unit to us!

Rating: 5 of 5 Stars [5 of 5 Stars]
10W High Power Fiber Isolator Single Stage 1310/1550nm HPIS 10W High Power Fiber Isolator Single Stage 1310/1550nm HPIS

by Jonathan Lackman
Date Added: 06/18/2021

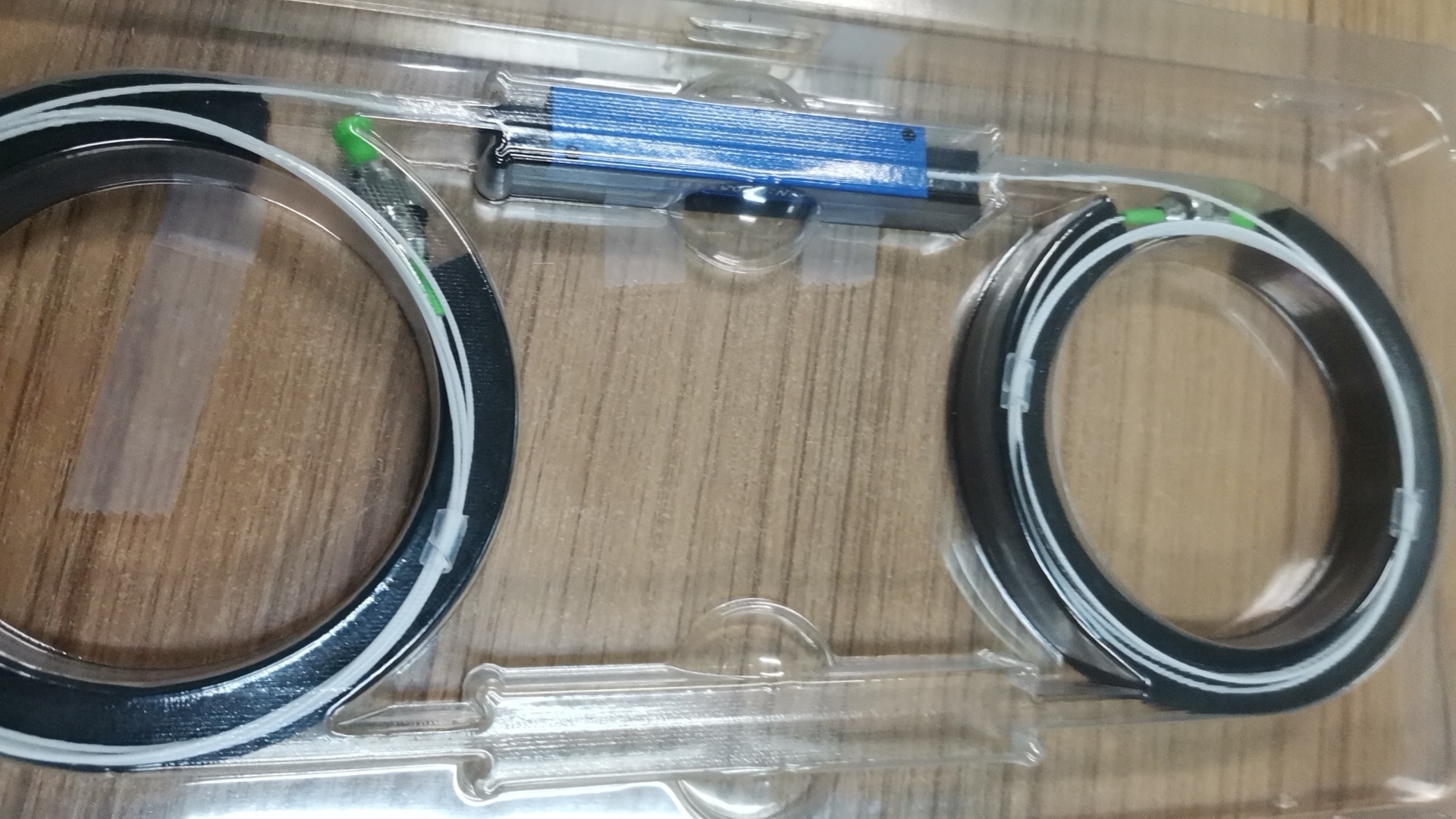

Well recieve high power isolator with good performance!

Rating: 4 of 5 Stars [4 of 5 Stars]
10W High Power Fiber Isolator Single Stage 1310/1550nm HPIS

by Grace Smith
Date Added: 03/16/2021
Surprised high power isolator 1550, it comes with fc/apc port, very nice datas we tested, will get more pcs.

Rating: 5 of 5 Stars [5 of 5 Stars]
10W High Power Fiber Isolator Single Stage 1310/1550nm HPIS
