10W Single Stage 1310/1550nm High Power Isolator HPIS

10W Single Stage 1310/1550nm High Power Isolator HPIS

Press Esc key to close this popup
  • 10W Single Stage 1310/1550nm High Power Isolator HPIS

10W Single Stage 1310/1550nm High Power Isolator HPIS

Product Item: #16440
(0 Customer Reviews)
Model: FM-HPIS-10W-11

Please Choose:






Price: Starting at: US$172.50
Add to Cart:

  • Description
  • Ordering Support
  • Other Remarks
  • Tags:

Features



  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High stability
  • High Reliability

Applications



  • Optical Fiber Amplifiers
  • Testing Instrumentations
  • Fiber Sensor
  • Fiber Lasers
  • Lab Research

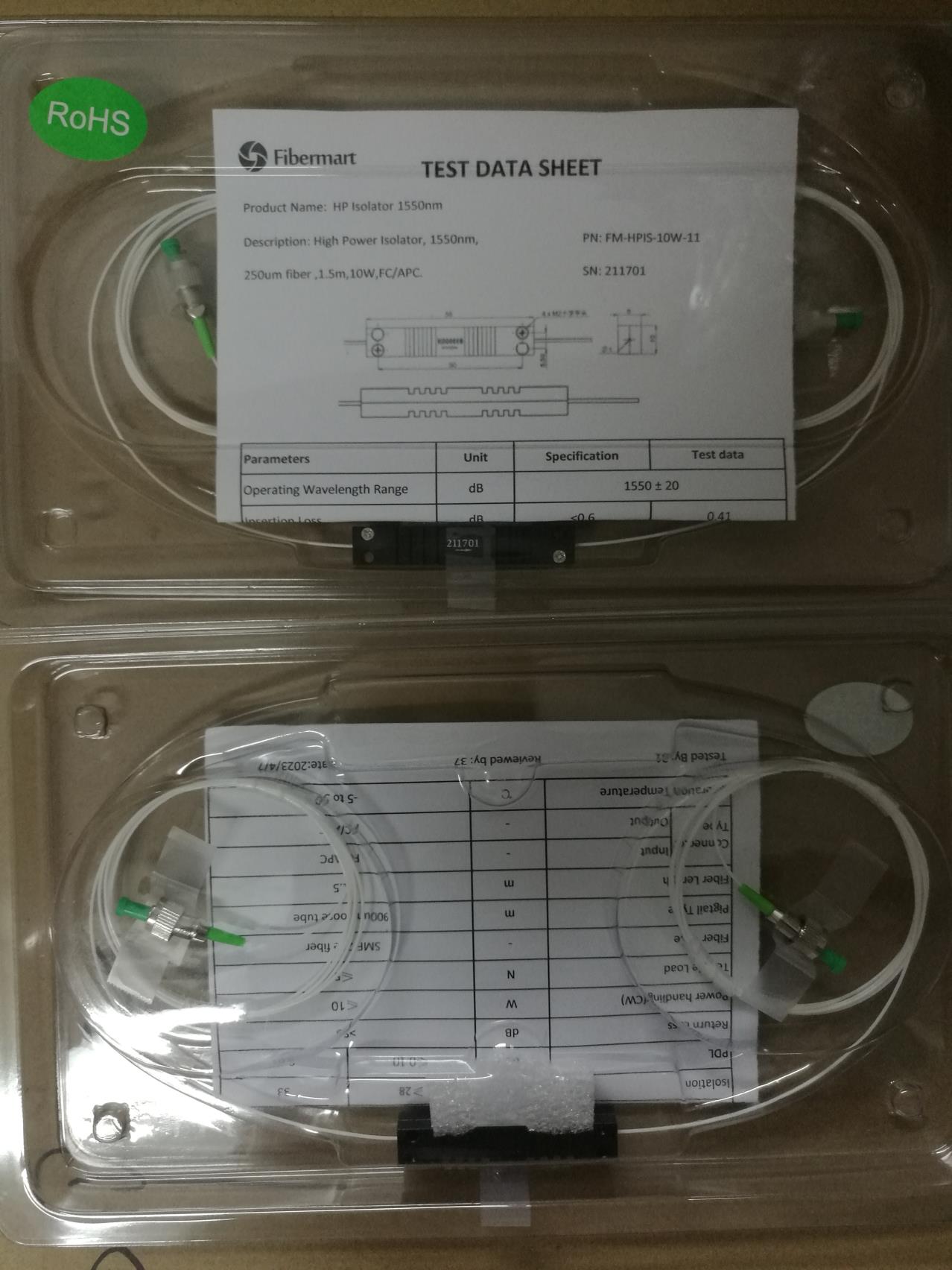

Picture Details



Ordering Information



Type Wavelength Fiber Power Pigtail Type Fiber Length Connector
HPIS 1=1310nm 1=SMF-28e 1=Single Stage 1=250um bare fiber 1=0.8m 0=None
HPPMIS 2=1480nm 2= PM1310 Panda Fiber 2=Dual Stage 2=900um Loose Tube S=Specify 1=FC/UPC
  3=1550nm 3= PM1550 Panda Fiber   2=3mm Loose Cable   2=FC/APC
  S=Specify     S=Specify   3=SC/UPC
            4=SC/APC
            S=Specify




Parameters Unit Values
Stage   Dual Single
CenterWavelength nm 1310or1550
OperatingWavelengthRang nm ±20
Typ.InsertionLossat23℃ dB 0.4 0.35
Max.InsertionLossat23℃ dB 0.55 0.5
Typ.Isolation dB 58 42
Min.Isolation dB 48 28
ExtinctionRatio dB 23
20
Max.PDLat23℃(forSMF-28eonly) dB 0.15
ReturnLoss(Input/output) dB 50
Max.OpticalPower(CW) W 1,2,3,5,10orspecify
Max.TensileLoad N 5
FiberType   PM1310PandaFiber PM1550PandaFiber
  SMF-28e
OperatingTemperature -5~+70
StorageTemperature -40~+85
PackageDimensions mm 5.5*35



Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.The default connector key is aligned to slow axis.
