FC/APC to LC/UPC Singlemode 9/125 Simplex Fiber Patch Cable

Product Item: #7899
P/N: SM-FCA-LCU-SX-FM
Starting at: US$1.63

Please Choose:








Order Today, Ship before 06/09/2026, from U.S. or Hong Kong
  • Description
  • Datasheet
  • Tags
  • FAQ

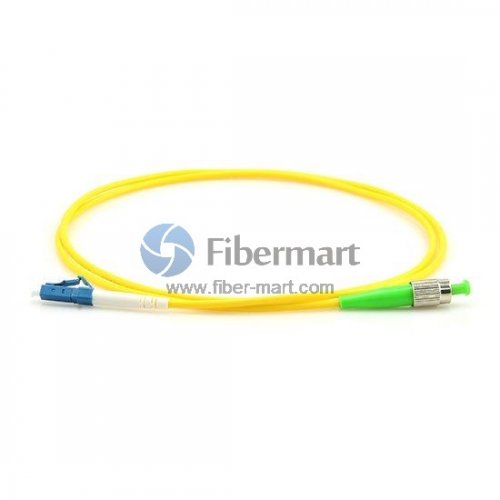

FC/APC to LC/UPC Singlemode 9/125 Simplex Fiber Patch Cable



Fiber Patch Cables also known as fiber jumpers or fiber patch cords.Fiber optic patch cable is one of most commonly used components in fiber optic network.

The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core. Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation.

The core of a single mode fiber optic cable is 9/125μ (micron).

Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.



Characteristics

  • FC/APC to LC/UPC Connectors
  • Single-mode simplex fiber optic cable
  • Complete with orange OFNR rated riser/jacket
  • All of our fiber optic patch cables feature the high degree connectors
  • 100% optically tested to ensure high performance
  • Micron: 9/125um
  • Color: Yellow



Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1550 1310,1550 1310,1550 1310,1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9




Fibermart Fiber Patch Cable Datasheet







Datasheet to Download

Customized Service :



● If you need any customized products or services, please write your request in Order Remarks, or send an email to [email protected]



Get Quote or Checkout Online :



● To request a Quote or Checkout to pay online, simply add items into your cart and select your preferred method.



Free Shipping & No Tariff :



● Online Order over US$200 is Free Shipping (Not included Heavy Items like Outdoor Cable, Outdoor Cabinet etc),

● For US customer, Fibermart covers all customs duty and fees - no additional tariff charges.



Shipping Time :



● FedEx : 2-4 business days
● UPS : 2-5 business days
● DHL : 2-6 business days
● Shipment by Sea : 20-25 business days



Payment Method :



● PayPal (Online)

● Credit / Debit Card (Online)

● ABA Routing (US Local)

● T/T Wire Transfer (International)



Returns & Warranty :



● 1-Year Warranty

● 60-Day Returns

● 60-Day Exchange

● Limited Lifetime Warranty.

   Read full Return & Refund Policy



Net Term & Credit :



● Fibermart accept Net 30 and Net 60 payment terms, Contact Us for Credit Account by submit a credit form.



Volume Discount :



● Fibermart offers discount prices for large-volume order, Contact Sales Team for more details.
