13dBm Output 1550nm C-Band Booster plug-in card type EDFA Optical Amplifier for CATV Applications

EDFA Optical Amplifier 13dBm Output Booster Plug-in Card Type for CATV Applications

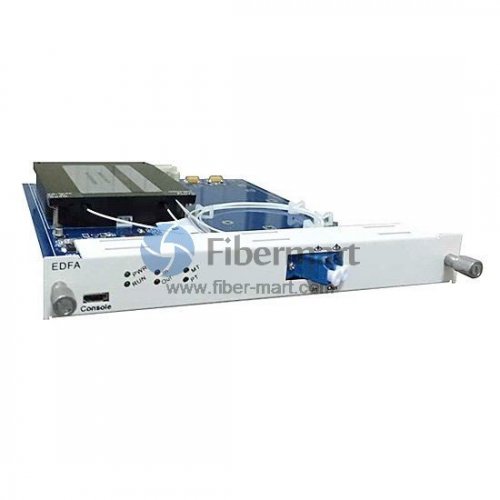

The 13dBm Output 1550nm C-Band Booster Plug-in Card Type EDFA is designed to plug into Multiplex Managed Chassis allowing a long distance transmission. It delivers the reach and optical performances to support CATV system, to meet the requirements of service provider and enterprise networks. A unique ATC (automatic temperature control) and APC (automatic power control) circuit are employed in it as the key component to ensure the high stability and reliability of output power. The unique optical circuit design ensures the excellent optical character. In addition, the outstanding ventilation and heat-dissipation of the plug-in card type EDFA guarantee the long life and high reliable work of pump laser.

The plug-in card type EDFA usually works with Multiplex Managed Chassis, which can insert more EDFA cards to access multiple signals, for example, 4 EDFA cards can be inserted into 1U Multiplex Managed Chassis and 16 EDFA cards can be inserted into 4U Multiplex Managed Chassis. The specific plug-in design provides flexibility and convenience for EDFA application, achieving space efficiency with compact size. What’s more, the plug-in card type EDFA supports SNMP Network management via Ethernet port and RS232, RS485 through the USB port.

Features

• CATV Booster Amplifier, extend analog CATV to suit long distance feeders or larger FTTH distribution systems within 1540~1560nm
• Input power: –3~10dBm
• Output power: 13dBm
• APC, AGC, ATC and ACC control modes
• Support RS232, RS485 (USB Port)
• Support SNMP Network management Via Ethernet port
• Low noise figure: typical is< 4.5dB
• Fully Customizable Design
• High stability and reliability
• Easy to maintain and replace reserve parts
• Space efficiency with compact size
• Cost efficiency with pluggable type
• Plug-in design, flexible and convenient
• Easy to get cooling and effectively prolong the working life.

Application

• FTTx system
• LANs and MANs
• Optical Distribution System
• Analog & Digital CATV long distance transmission
• Laboratory application
• For video optical Transmission system & AM CATV
• Military and industrial applications
• Loss and Dispersion Compensation for Optical Fiber Networks
• Rack mount optical amplify system
• Fiber optic link amplification

Compatible With EDFA Chassis

1U Multiplex Managed Chassis can be equipped with 4 EDFA cards and 4U Multiplex Managed Chassis can be equipped with 16 EDFA cards

1U Multiplex Managed Chassis for Plug-in Card Type EDFA.



4U Multiplex Managed Chassis for Plug-in Card Type EDFA.
