Duplex 1M VF45-MTRJ 62.5/125um OM1 MM Patch Cables
Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends. This price on the website is for 1M length,please feel free to enquiry us for the other length standard
|
|
Item |
Specifications |
|
Attenuation: |
< 0.75 dB max |
|
Reflection: |
> 20 dB max |
|
Mating durability: |
500 cycles, <0.75 dB max |
|
Strength of coupling: |
> 33 N, < 0.75 dB max |
|
Plug cable retention: |
Tensile load > 66 N, Side Pull > 6.6 N, < 0.75 dB max |
|
Plug flex: |
100 Cycles, ± 90 degrees, 0.5 kg, < 0.75 dB max |
|
Plug twist: |
10 Cycles, ± 2.5 revolutions, 15 N, < 0.75 dB max |
|
Cold: |
-10°C for 96 hours, < 0.3 dB increase |
|
Heat: |
+60°C for 14 days, < 0.3 dB increase |
|
Thermal cycling: |
-10°C to 60°C, 5 Cycles, < 0.3 dB increase |
|
Vibration: |
10 to 55 Hz, 30 min. each axis, < 0.3 dB increase |
|
Connector Style: |
Crimp, Polish |
|
Connector Type: |
VF45-SC |

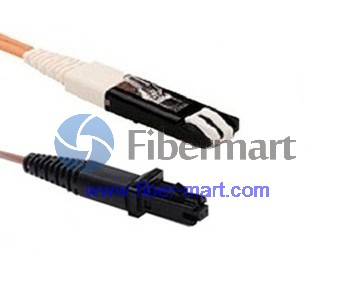

Sample Picture
.jpg)
Details
Order Information
- Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom
- Cable Jacket Type: R-Riser; L-LSZH;Custom
- Fiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);Custom
- Second Connector End: V-VF-45 Plug;ST;SC;LC;Custom
- First Connector End is Always Volition VF-45 Plug
