1X2 1310nm Polarization Maintaining Optical Circulator Slow Axis

Product Item: #1875

(1 Customer Reviews)

P/N: FM-PMCIR-XS-1310-3-X

Starting at: US$382.00

Please Choose:

Fiber Type:

Stage Number

Fiber Length:

Working Axis

Connectors:

Customized Details:

Order Today, Ship before 06/11/2026, from U.S. or Hong Kong

Description
Datasheet
Tags
FAQ

Polarization Maintaining Optical Circulator 1X2 1310nm

Fiber-Mart’s Polarization-Maintaining (PM) Optic Circulators are non-reciprocating, unidirectional, three-port devices that are used in a wide range of optical setups. Available with a center wavelength of 1064, 1310 (O-Band), or 1550 nm (C-Band), these circulators are designed to work with light that is launched into the slow axis.
Choose from versions with no connectors, FC/ST/SC/LC PC&APC connectors and so on.

Characteristics

Low Back Reflection
High Extinction Ratio
Low Insertion Loss
High Return Loss
Excellent environmental stability and reliability

Applications

DWDM system
Add-Drop Multiplexing
Fiber Amplifier
Fiber Sensor
Chromatic Dispersion Compensation Devices
Fiber Bragg Grating
Polarization maintaining optical system

Application Diagram

	As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.

	As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other.
Circulator can be used to send optical signals through a single fiber in two directions.

Dimension

Order Information

Product Description(PMCIR)	Port Type	Stage	Operating Wavelength	Pigtail Type	Fiber Type	Connector Type	Fiber Length
P=Polarization M=Maintaining CIR=Circulator	1X2 2X2	Dual Single	1064nm 1310nm 1550nm	250um 900um	PM98 PM15 PM13 others	None FC UPC/APC LC UPC/APC SC UPC/APC ST UPC/APC	0.5m 0.8m 1.0m 1.2m Custom

Note:
1. Operating Wavelength: Fiber-Mart can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, Fiber-Mart could also provide 0.5M,0.8M,1.5M, 2.0M, etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc. Please contact us by email to [email protected] or call at +1-205-282-9089 if you have any requirement for it.

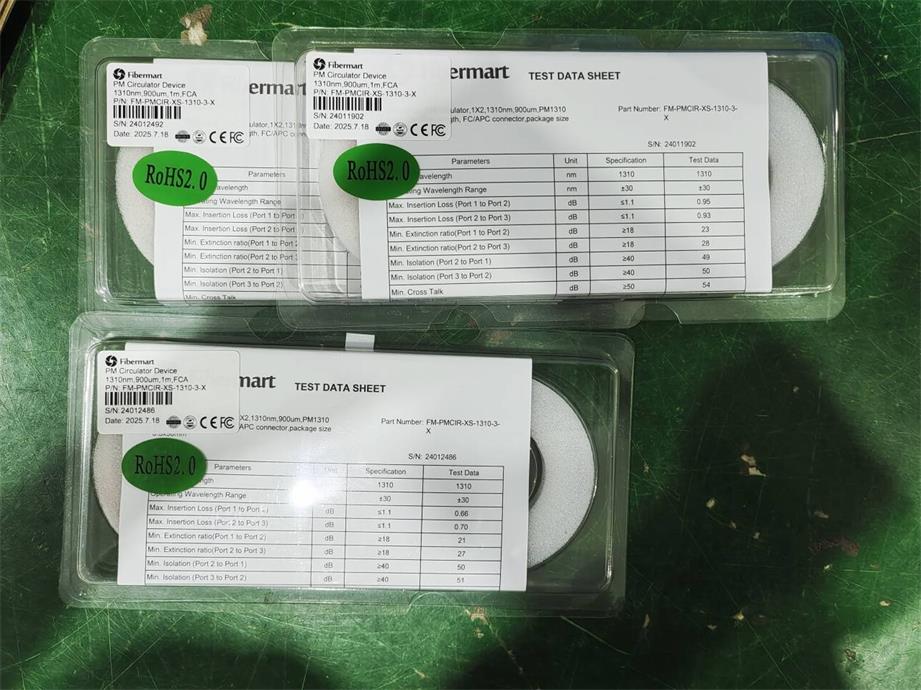

Sample Picture

Parameter	Unit	Value
Type	-	Type A	Type B
Center Wavelength	nm	1310& 1550	1310 &1550	1064
Operating Wavelength Range	nm	±30	±20	±5
Typ.Peak Isolation 23℃	dB	46	30	30
Min.Isolation at 23℃	dB	40	20	25
Typ.Insertion Loss at 23℃	dB	0.7	0.6	1.8
Max.Insertion Loss at 23℃	dB	0.9	0.8	2.1
Min.Extinction Ratio	dB	22	20	20
Min.Cross Talk	dB	50
Min.Return Loss	dB	50
Max.Optical Power(CW)	mW	300
Max.Tensile Load	N	5
Fiber Type	-	PM Panda Fiber
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
The default connector key is aligned to slow axis;
