1x2 1550nm 5W High Power Polarization Maintaining PM Optical Circulator both axis working no connector
Description
Datasheet
Tags
1X2 1550nm 5W High Power Polarization Maintaining Optical Circulator, both fast and slow axis working, Single Stage/Dual Stage 900um
Fiber-Mart’sPolarization-Maintaining (PM) Optical Circulators are non-reciprocating, unidirectional, three-port devices that are used in a wide range of optical setups. Polarization Maintaining Circulator Available with a center wavelength of 1064, 1310 (O-Band), or 1550 nm (C-Band), these circulators are designed to work with light that is launched into the slow axis.
Choose from versions with no connectors, FC/ST/SC/LC PC&APC connectors and so on.
Characteristics
Low Back Reflection
High Extinction Ratio
Low Insertion Loss
High Return Loss
Excellent environmental stability and reliability
Applications
DWDM system
Add-Drop Multiplexing
Fiber Amplifier
Fiber Sensor
Chromatic Dispersion Compensation Devices
Fiber Bragg Grating
Polarization maintaining optical system
Application Diagram
Below are Three Port Circulator application for your reference.
As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.
Circulator can be used to send optical signals through a single fiber in two directions.
Dimension
Order Information
PMCIR
Product Description
Port Type
Stage
Operating
Wavelength
Pigtail Type
Fiber Type
Connector Type
Fiber Length
P=Polarization
M=Maintaining
CIR=Circulator
1X2
2X2
Dual
Single
1064nm
1310nm
1550nm
250um
900um
PM98
PM15
PM13
others
None
FC/UFC
FC/APC
SC/UPC
SC/APC
0.5m
0.8m
1.0m
1.2m
Custom
Note:
1. Operating Wavelength: Fiber-Mart can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, Fiber-Mart could also provide 0.5M,0.8M,1.5M, 2.0M, etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc. Please contact us by email to [email protected] or call at +1-205-282-9089 if you have any requirement for it.

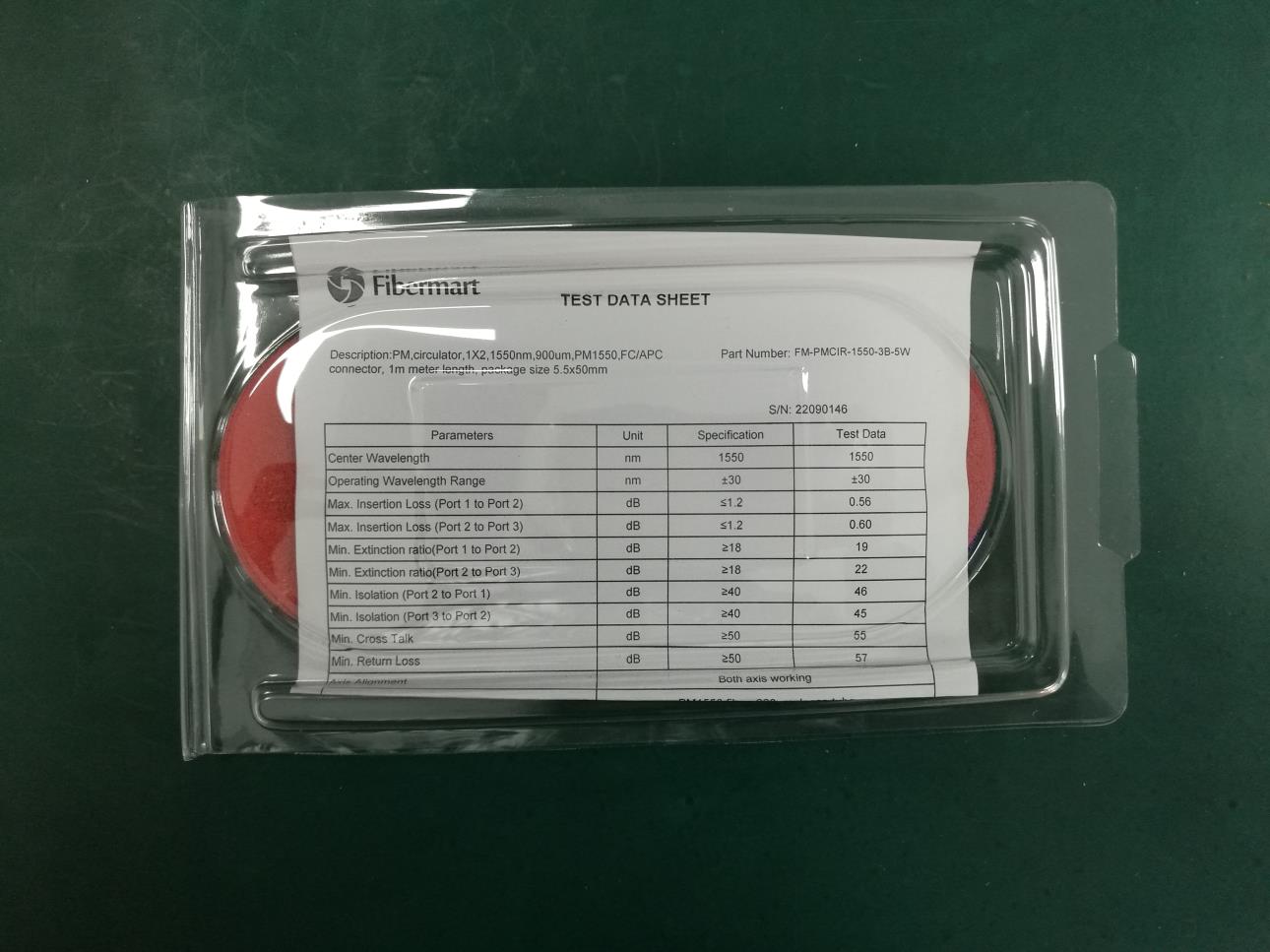

Sample Picture
Parameter
Unit
Value
Type
-
Type A
Type B
Center Wavelength
nm
1310& 1550
1310 &1550
1064
Operating Wavelength Range
nm
±30
±20
±5
Typ.Peak Isolation 23℃
dB
46
30
30
Min.Isolation at 23℃
dB
40
20
25
Typ.Insertion Loss at 23℃
dB
0.7
0.6
1.8
Max.Insertion Loss at 23℃
dB
0.9
0.8
2.1
Min.Extinction Ratio
dB
22
20
20
Min.Cross Talk
dB
50
Min.Return Loss
dB
50
Max.Optical Power(CW)
mW
300
Max.Tensile Load
N
5
Fiber Type
-
PM Panda Fiber
Operating Temperature
℃
-5~+70
Storage Temperature
℃
-40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
The default connector key is aligned to slow axis;
