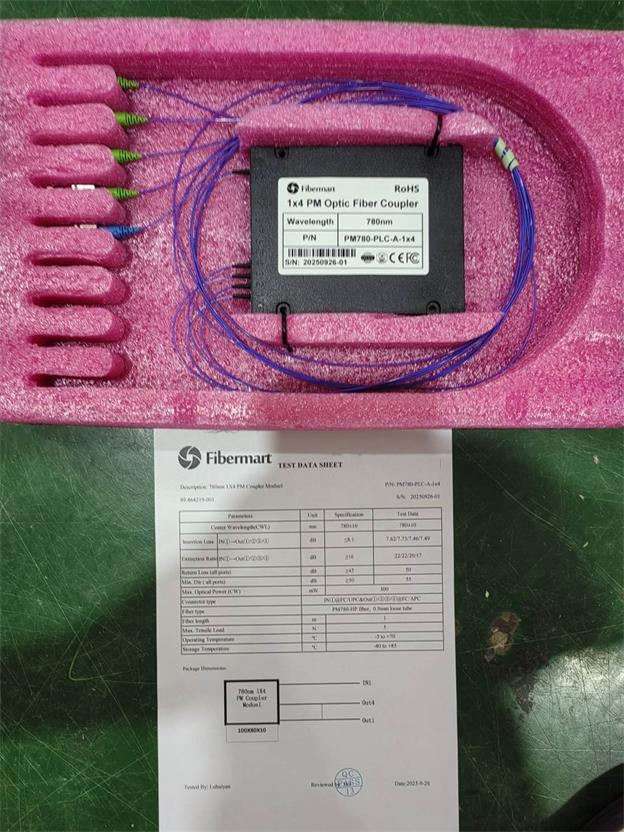

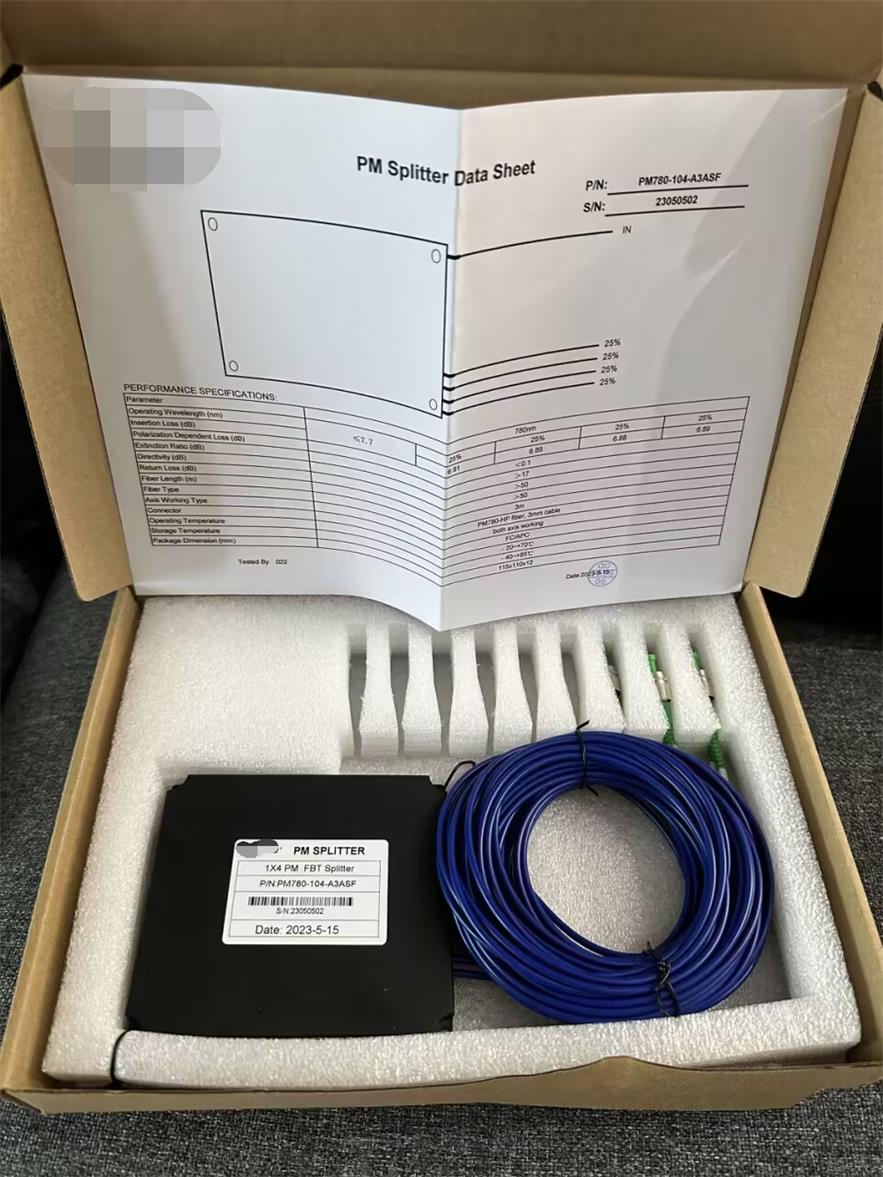

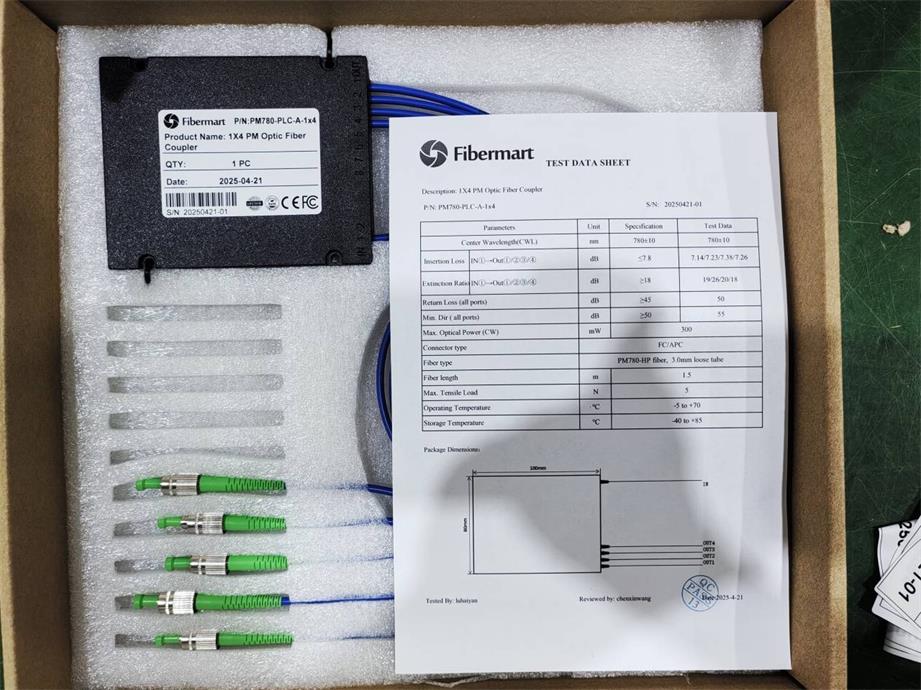

1x4 PM780 FBT Splitter, PM780 Fiber Splitter, Fiber Polarization Maintaining FBT Coupler Splitter Slow Axis w/ Plastic ABS Box Package in 780nm
Polarization Maintaining Planar Light wave Circuit (PLC) splitter is a type of polarization maintaining optical power management device that is fabricated using silica optical waveguide technology. PM PLC splitter maintains polarization of input optical signal. Polarization Maintaining Fiber Splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.
Features
Applications
Mechanical Drawing
|
Parameters | Specifications | Unit | Notes |
Channel Number | 1×4 | Accord with RoHS requirement | |
Operation Wavelength | 780 | nm | |
Insertion Loss | ≤7.7 | dB | |
Uniformity | ≤1.2 | dB | |

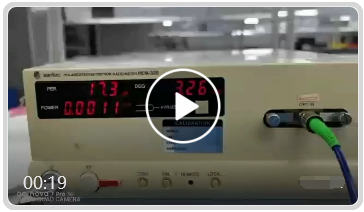

PER | ≥18 | dB | |
Return Loss | ≥50 | dB | |
Directivity | ≥55 | dB | |
Fiber Type | PM780 fiber | ||
Pigtail Type | Input: PM fiber with 0.9mm or 2.0mm or 3.0mm loose tube | ||
Output: PM fiber with 0.9mm or 2.0mm or 3.0mm loose tube | |||
Input Length | ≥1.0 | m | |
Output Length | ≥1.0 | m | |
Connector | None | ||
Tube Color | Input: white | ||
Output: blue/orange/green/brown/gray/white/red/black | |||
Package Dimension | 120(L) × 80(W) × 18(H) | mm | |
Operation Temperature | -40 ~ +85 | ℃ | |
Storage Temperature | -40 ~ +85 | ℃ |
