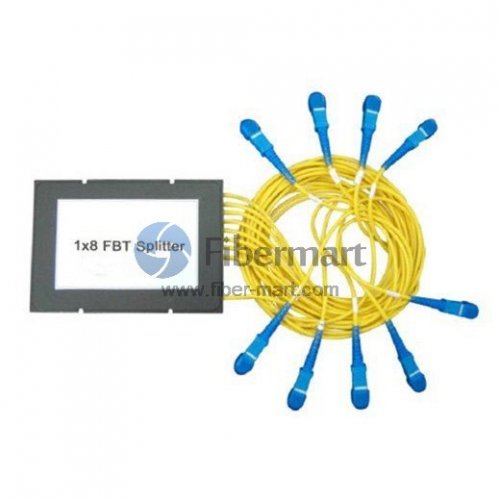

1x8 FBT Splitter Singlemode Three Window Fiber Splitter with ABS Box

FBT Fiber Splitter 1x8 Singlemode Three Window with ABS Box

As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment

Fiber-Mart Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
The 1x8 Singlemode Three Window Fiber Splitter with ABS Box can splitter the optical signals into 8 parts, and the coupling ratio can be customized

Key Features

• Low insertion loss
• Low polarization dependent loss
• High Return Loss
• Optional Split Ratio 20/80, 40/60...(50/50 as default.)
• Compact for small application areas like in closure or splice trays
• Wide Operating Temperature and Wavelength
• Excellent Environmental & Mechanical Stability
• Qualified Under Telcordia GR-1221 and GR-1209
• High Quality Plastic ABS Box

Applications

• FTTX (FTTP, FTTH, FTTN, FTTC)
• Passive Optical Networks (PON)
• Local Area Networks (LAN)
• CATV Systems
• Amplifying, Monitoring System
• Test Equipments

Order Information

For FBT Splitters, Fiber-Mart provides a whole series of this kind customized for specific applications:
a. Different coupling ratio can be customized according to your requirement.
b. Two out of the 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24 configurations of splitters are available.
d. 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default.
Welcome to contact us for customized solutions.

Mechanical Drawing

Fiber-Mart offers cost-effective standards-based 1x8 FBT Splitter Singlemode Three Window Fiber Splitter with ABS Box. As a 3rd party OEM manufacturer, our 1x8 FBT Splitter Singlemode Three Window Fiber Splitter with ABS Box is delivered to worldwide from our factory directly, and they are all based on thin film filter technology and metal bonding micro optics packaging. What's more, our 1x8 FBT Splitter Singlemode Three Window Fiber Splitter with ABS Box are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Please contact us at [email protected] if you want to know more details.

Specification
