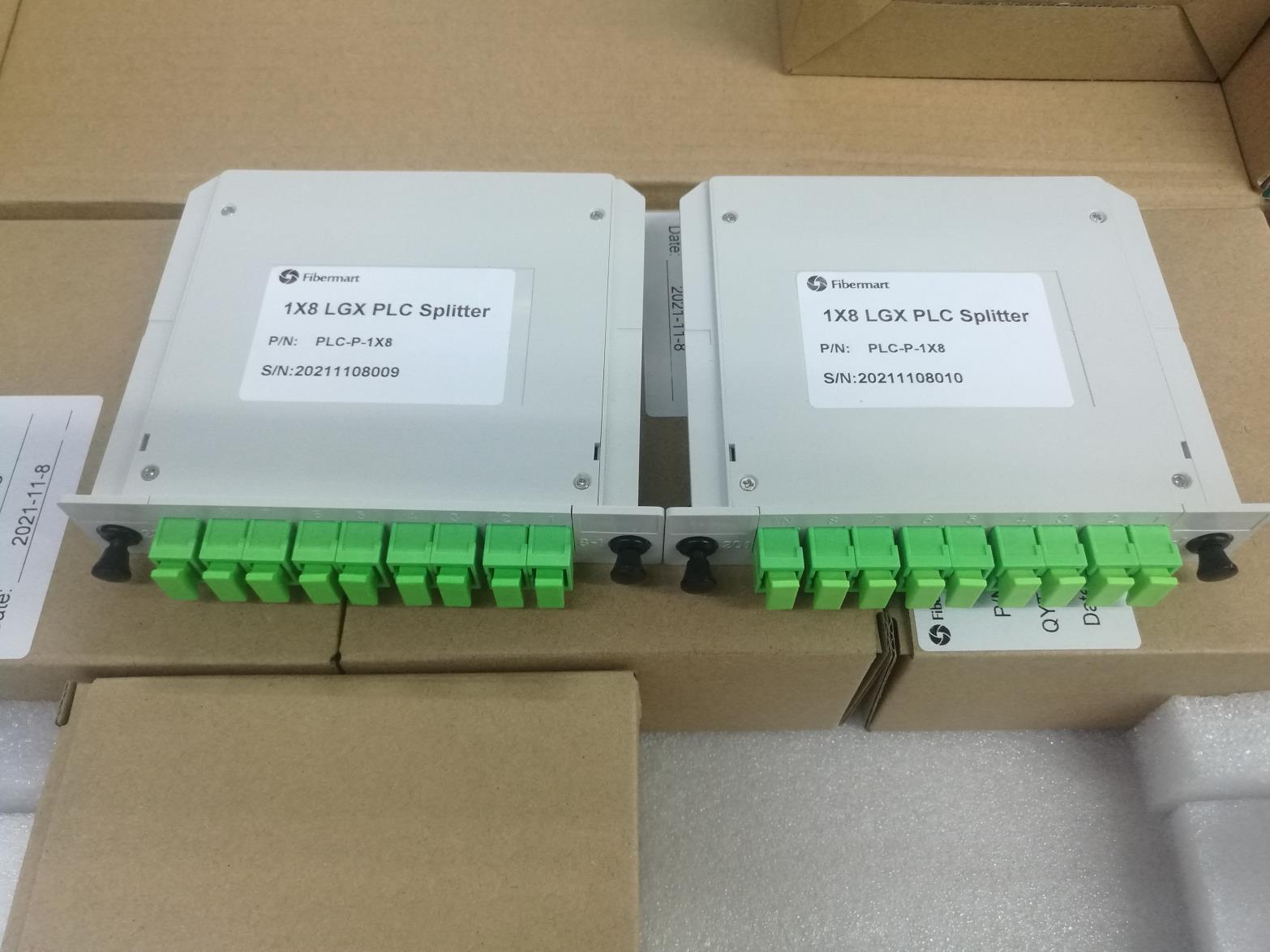

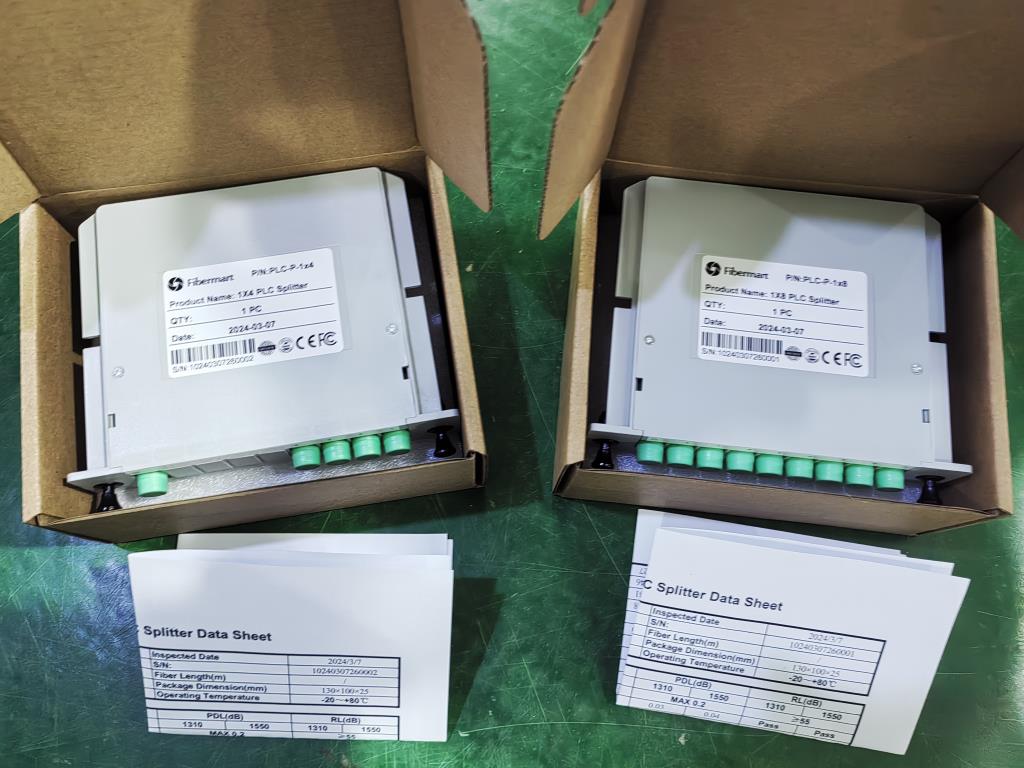

1x8 Fiber PLC Splitter in Mini plug-in Type

Fiber PLC Splitter 1x8 Mini plug-in Type

PLC Splitter is based on planar lightwave circuit technology. Fiber-Mart 1x8 Fiber PLC Splitter can distribute or combine 1 optical signal into 8 outputs fibers.

1x8 Fiber PLC Splitter in Mini plug-in Type, G.657A Fiber, FC, SC, ST & LC connectors for choice, is specialized for plug and play splitter application, features high reliability, reduce installation time,small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting.

Features

• Low insertion loss
• Low Polarization Dependent Loss
• Compact design
• Good channel-to-channel uniformity
• Wide Operating Wavelength: 1260~1650nm
• High Reliability and Stability
• Telcordia GR-1209-CORE-2001 Compliant
• Telcordia GR-1221-CORE-1999 Compliant
• Dimension: 130mm*100mm*25mm

Application

• Installed in Outdoor Cabinet and Floor Terminal Box
• FTTH Fiber to the home
• PON network
• CATV
• Fiber LAN

Dimension Picture

V.S FBT Coupler, the advantages of PLC are as follows

• The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
• High spectral uniformity, can splitter the signals on average
• Compact structure, small volume
• The cost advantage is very obvious on many splitter channels

Order Information

Fiber-Mart provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like.
c. The length of pigtail can be also customized; welcome to contact us for more details.

Fiber-Mart provides a various of 1xN and 2xN PLC splitters in Mini plug-in type. The PLC splitters in Mini plug-in Type with its compact structure and small volume, are very convenient for use and can be installed in many places, such as: 19 inch racks, cross connect cabinet and some other devices. For more information about 1x8 Fiber PLC Splitter in Mini plug-in Type, please contact us at [email protected].
